6.3.3 Adjustable Power-Good Delay Timer (DELAY)
The power-good delay period is a function of the value set by an external capacitor on the DELAY pin before turning the PG pin high. Figure 6-2 illustrates typical power-good and delay behavior. Connecting an external capacitor from this pin to GND sets the power-good delay period. The constant current charges an external capacitor until the voltage exceeds a threshold to trip an internal comparator, and Equation 2 determines the power-good delay period:
Equation 2.
where
- t(DLY) is the adjustable power-good delay period
- CDELAY is the value of the power-good delay capacitor

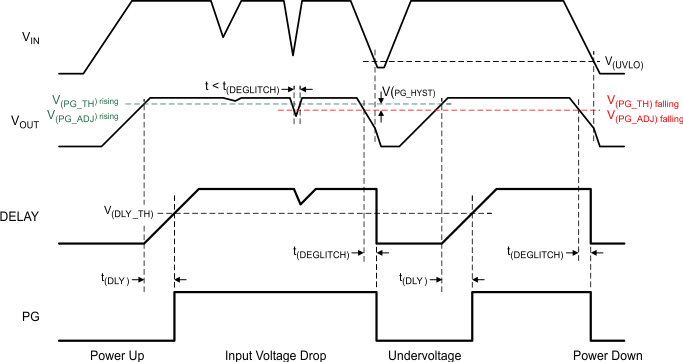

Figure 6-2 Power Up and Conditions for
Activating Power-GoodIf the DELAY pin is open, the default delay time is t(DLY_FIX).
