6.6.1 Power-Up and Power-Down Sequencing

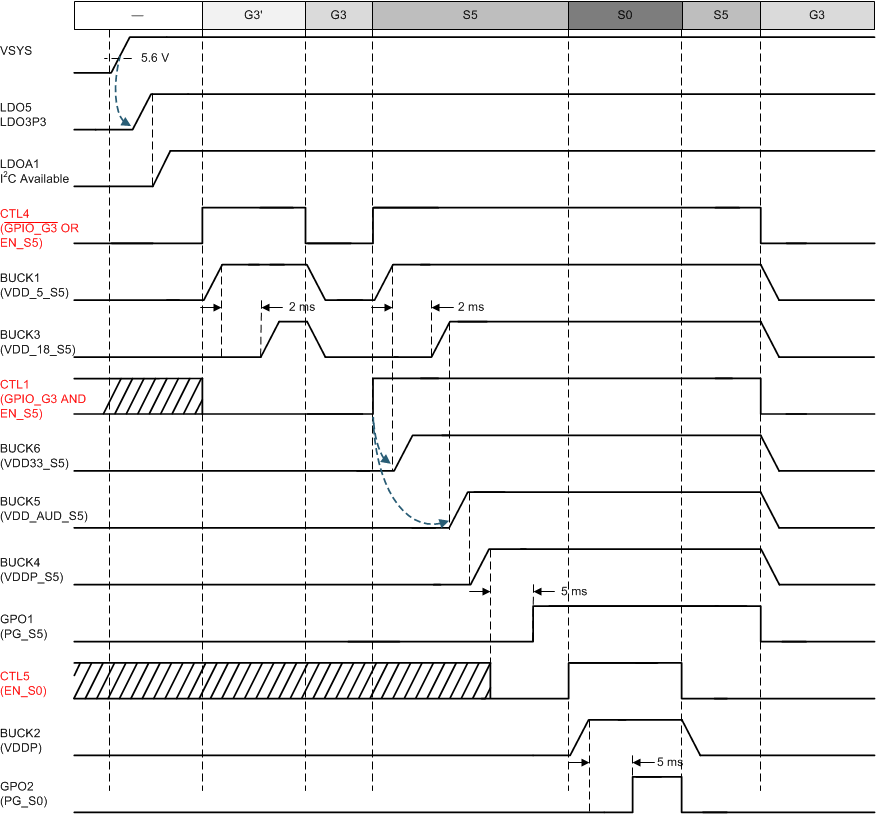

The power-up and power-down sequence uses the CTL1, CTL4, and CTL5 pins to enable and disable regulators as required by the system. Figure 6-7 shows the sequencing of these enables in a typical power-up and power-down sequence.
A. CTLx are control signals from the
discrete digital from the processor to enable the rails.
B. CTL2 enables SWA1, CTL3 enables
SWB1, and CTL6 enables SWB2. The LDOA2 and LDOA3 enable bits are disabled by
default. The LDOA2_Dis and LDOA3_Dis bits should be set to 1h to enable them.
C. The power fault is masked for 10
ms when the regulator is enabled.
Figure 6-7 Power-Up and Power-Down
SequenceTable 6-6 lists the system power states.
Table 6-6 System Power States
| STATE | GPIO_G3 | EN_S5 | CTL4 | CTL5 |
|---|---|---|---|---|
| G3’ | 1 | 0 | 1 | 0 |
| G3’ | 1 | 1 | 1 | 0 |
| G3 state | 0 | 0 | 0 | 0 |
| S5 state | 0 | 1 | 1 | 1 |
