ZHCSGZ6A October 2017 – February 2025 TPS6508700
PRODUCTION DATA
- 1
- 1 特性
- 2 應用
- 3 說明
- 4 Pin Configuration and Functions
-
5 Specifications
- 5.1 Absolute Maximum Ratings
- 5.2 ESD Ratings
- 5.3 Recommended Operating Conditions
- 5.4 Thermal Information
- 5.5 Electrical Characteristics: Total Current Consumption
- 5.6 Electrical Characteristics: Reference and Monitoring System
- 5.7 Electrical Characteristics: Buck Controllers
- 5.8 Electrical Characteristics: Synchronous Buck Converters
- 5.9 Electrical Characteristics: LDOs
- 5.10 Electrical Characteristics: Load Switches
- 5.11 Digital Signals: I2C Interface
- 5.12 Digital Input Signals (CTLx)
- 5.13 Digital Output Signals (IRQB, GPOx)
- 5.14 Timing Requirements
- 5.15 Switching Characteristics
- 5.16 Typical Characteristics
-
6 Detailed Description
- 6.1 Overview
- 6.2 Functional Block Diagram
- 6.3 SMPS Voltage Regulators
- 6.4 LDO Regulators and Load Switches
- 6.5 Power Good Information (PGOOD or PG) and GPO Pins
- 6.6 Power Sequencing and Voltage-Rail Control
- 6.7 Device Functional Modes
- 6.8 I2C Interface
- 6.9
Register Maps
- 6.9.1 Register Map Summary
- 6.9.2 DEVICEID: PMIC Device and Revision ID Register (offset = 1h) [reset = 10h]
- 6.9.3 IRQ: PMIC Interrupt Register (offset = 2h) [reset = 0h]
- 6.9.4 IRQ_MASK: PMIC Interrupt Mask Register (offset = 3h) [reset = FFh]
- 6.9.5 PMICSTAT: PMIC Status Register (offset = 4h) [reset = 0h]
- 6.9.6 SHUTDNSRC: PMIC Shut-Down Event Register (offset = 5h) [reset = 0h]
- 6.9.7 BUCK2CTRL: BUCK2 Control Register (offset = 21h) [reset = 50h]
- 6.9.8 BUCK3DECAY: BUCK3 Decay Control Register (offset = 22h) [reset = 70h]
- 6.9.9 BUCK3VID: BUCK3 VID Register (offset = 23h) [reset = 70h]
- 6.9.10 BUCK3SLPCTRL: BUCK3 Sleep Control VID Register (offset = 24h) [reset = 70h]
- 6.9.11 BUCK4CTRL: BUCK4 Control Register (offset = 25h) [reset = Dh]
- 6.9.12 BUCK5CTRL: BUCK5 Control Register (offset = 26h) [reset = Dh]
- 6.9.13 BUCK6CTRL: BUCK6 Control Register (offset = 27h) [reset = Dh]
- 6.9.14 LDOA2CTRL: LDOA2 Control Register (offset = 28h) [reset = Ch]
- 6.9.15 LDOA3CTRL: LDOA3 Control Register (offset = 29h) [reset = 3Ch]
- 6.9.16 DISCHCTRL1: Discharge Control1 Register (offset = 40h) [reset = 55h]
- 6.9.17 DISCHCTRL2: Discharge Control2 Register (offset = 41h) [reset = 55h]
- 6.9.18 DISCHCTRL3: Discharge Control3 Register (offset = 42h) [reset = 15h]
- 6.9.19 PG_DELAY1: Power Good Delay1 Register (offset = 43h) [reset = 0h]
- 6.9.20 FORCESHUTDN: Force Emergency Shutdown Control Register (offset = 91h) [reset = 0h]
- 6.9.21 BUCK2SLPCTRL: BUCK2 Sleep Control Register (offset = 93h) [reset = 50h]
- 6.9.22 BUCK4VID: BUCK4 VID Register (offset = 94h) [reset = 20h]
- 6.9.23 BUCK4SLPVID: BUCK4 Sleep VID Register (offset = 95h) [reset = 20h]
- 6.9.24 BUCK5VID: BUCK5 VID Register (offset = 96h) [reset = 70h]
- 6.9.25 BUCK5SLPVID: BUCK5 Sleep VID Register (offset = 97h) [reset = E8h]
- 6.9.26 BUCK6VID: BUCK6 VID Register (offset = 98h) [reset = E8h]
- 6.9.27 BUCK6SLPVID: BUCK6 Sleep VID Register (offset = 99h) [reset = E8h]
- 6.9.28 LDOA2VID: LDOA2 VID Register (offset = 9Ah) [reset = FFh]
- 6.9.29 LDOA3VID: LDOA3 VID Register (offset = 9Bh) [reset = AAh]
- 6.9.30 BUCK123CTRL: BUCK1-3 Control Register (offset = 9Ch) [reset = 7h]
- 6.9.31 PG_DELAY2: Power Good Delay2 Register (offset = 9Dh) [reset = 21h]
- 6.9.32 SWVTT_DIS: SWVTT Disable Register (offset = 9Fh) [reset = E0h]
- 6.9.33 I2C_RAIL_EN1: VR Pin Enable Override1 Register (offset = A0h) [reset = 80h]
- 6.9.34 I2C_RAIL_EN2/GPOCTRL: VR Pin Enable Override2/GPO Control Register (offset = A1h) [reset = 89h]
- 6.9.35 PWR_FAULT_MASK1: VR Power Fault Mask1 Register (offset = A2h) [reset = C0h]
- 6.9.36 PWR_FAULT_MASK2: VR Power Fault Mask2 Register (offset = A3h) [reset = 3Fh]
- 6.9.37 GPO1PG_CTRL1: GPO1 PG Control1 Register (offset = A4h) [reset = C2h]
- 6.9.38 GPO1PG_CTRL2: GPO1 PG Control2 Register (offset = A5h) [reset = AFh]
- 6.9.39 GPO4PG_CTRL1: GPO4 PG Control1 Register (offset = A6h) [reset = 0h]
- 6.9.40 GPO4PG_CTRL2: GPO4 PG Control2 Register (offset = A7h) [reset = 0h]
- 6.9.41 GPO2PG_CTRL1: GPO2 PG Control1 Register (offset = A8h) [reset = C0h]
- 6.9.42 GPO2PG_CTRL2: GPO2 PG Control2 Register (offset = A9h) [reset = 2Fh]
- 6.9.43 GPO3PG_CTRL1: GPO3 PG Control1 Register (offset = AAh) [reset = 0h]
- 6.9.44 GPO3PG_CTRL2: GPO3 PG Control2 Register (offset = ABh) [reset = 0h]
- 6.9.45 MISCSYSPG Register (offset = ACh) [reset = FFh]
- 6.9.46 LDOA1CTRL: LDOA1 Control Register (offset = AEh) [reset = 7Dh]
- 6.9.47 PG_STATUS1: Power Good Status1 Register (offset = B0h) [reset = 0h]
- 6.9.48 PG_STATUS2: Power Good Status2 Register (offset = B1h) [reset = 0h]
- 6.9.49 PWR_FAULT_STATUS1: Power Fault Status1 Register (offset = B2h) [reset = 0h]
- 6.9.50 PWR_FAULT_STATUS2: Power Fault Status2 Register (offset = B3h) [reset = 0h]
- 6.9.51 TEMPCRIT: Temperature Fault Status Register (offset = B4h) [reset = 0h]
- 6.9.52 TEMPHOT: Temperature Hot Status Register (offset = B5h) [reset = 0h]
- 6.9.53 OC_STATUS: Overcurrent Fault Status Register (offset = B6h) [reset = 0h]
-
7 Applications, Implementation, and Layout
- 7.1 Application Information
- 7.2 Typical Application
- 7.3 Power Supply Coupling and Bulk Capacitors
- 7.4 Dos and Don'ts
- 8 Device and Documentation Support
- 9 Revision History
- 10Mechanical, Packaging, and Orderable Information
封裝選項
請參考 PDF 數據表獲取器件具體的封裝圖。
機械數據 (封裝 | 引腳)
- RSK|64
散熱焊盤機械數據 (封裝 | 引腳)
- RSK|64
訂購信息
6.3.2 Converter Overview
The PMIC synchronous step-down DC-DC converters include a unique, hysteretic PWM-controller scheme which enables a high switching-frequency converter, excellent transient and AC load regulation as well as operation with cost-competitive external components. The controller topology supports forced PWM mode as well as power-save mode operation. Power-save mode operation, or PFM mode, reduces the quiescent current consumption and ensures high conversion efficiency at light loads by skipping switch pulses. In forced PWM mode, the device operates on a quasi-fixed frequency, avoids pulse skipping, and allows filtering of the switch noise by external filter components. The PMIC device offers fixed output voltage options featuring a small solution size by using only three external components per converter.
A significant advantage of a PMIC over other hysteretic PWM controller topologies is the excellent AC load transient regulation capability of PMICs. When the output voltage falls below the threshold of the error comparator, a switch pulse is initiated, and the high-side switch is turned on. The switch remains turned on until a minimum on-time (tONmin) expires and the output voltage trips the threshold of the error comparator, or until the inductor current reaches the current limit of the high-side switch. When the high-side switch turns off, the low-side switch rectifier is turned on and the inductor current ramps down until the high-side switch turns on again or the inductor current reaches zero. In forced PWM mode operation, negative inductor current is allowed to enable continuous conduction mode even at no load condition.

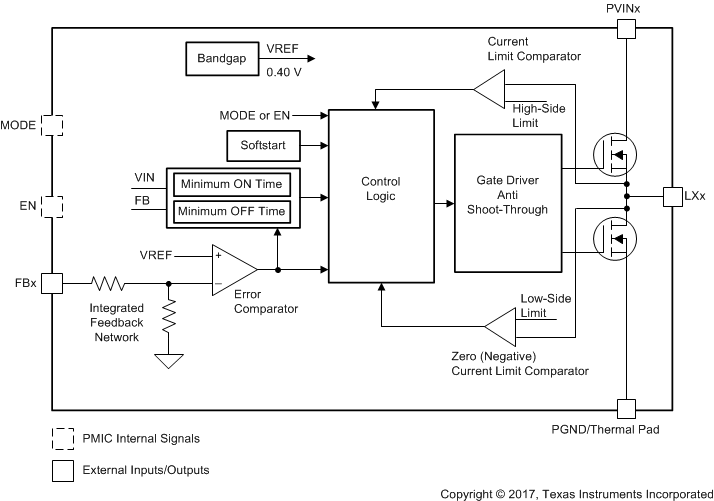

Figure 6-3 Converter Block Diagram
