Designing the converter has only two steps: design the output filter and select the input capacitors.

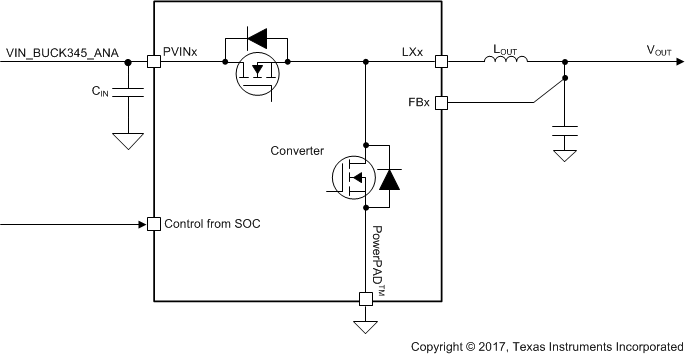

The converter must be supplied by a 5V source. Figure 7-5 shows a diagram of the converter.
Figure 7-5 Converter
Diagram
