11.3 Package Size, Efficiency and Thermal Performance
The TPS543C20 device is available in a 5 mm x 7 mm, QFN package with 40 power and I/O pins. It employs TI proprietary MCM packaging technology with thermal pad. With a properly designed system layout, applications achieve optimized safe operating area (SOA) performance. The curves shown in and are based on the orderable evaluation module design.
| VIN = 12 V | VOUT = 5 V | 500 kHz |

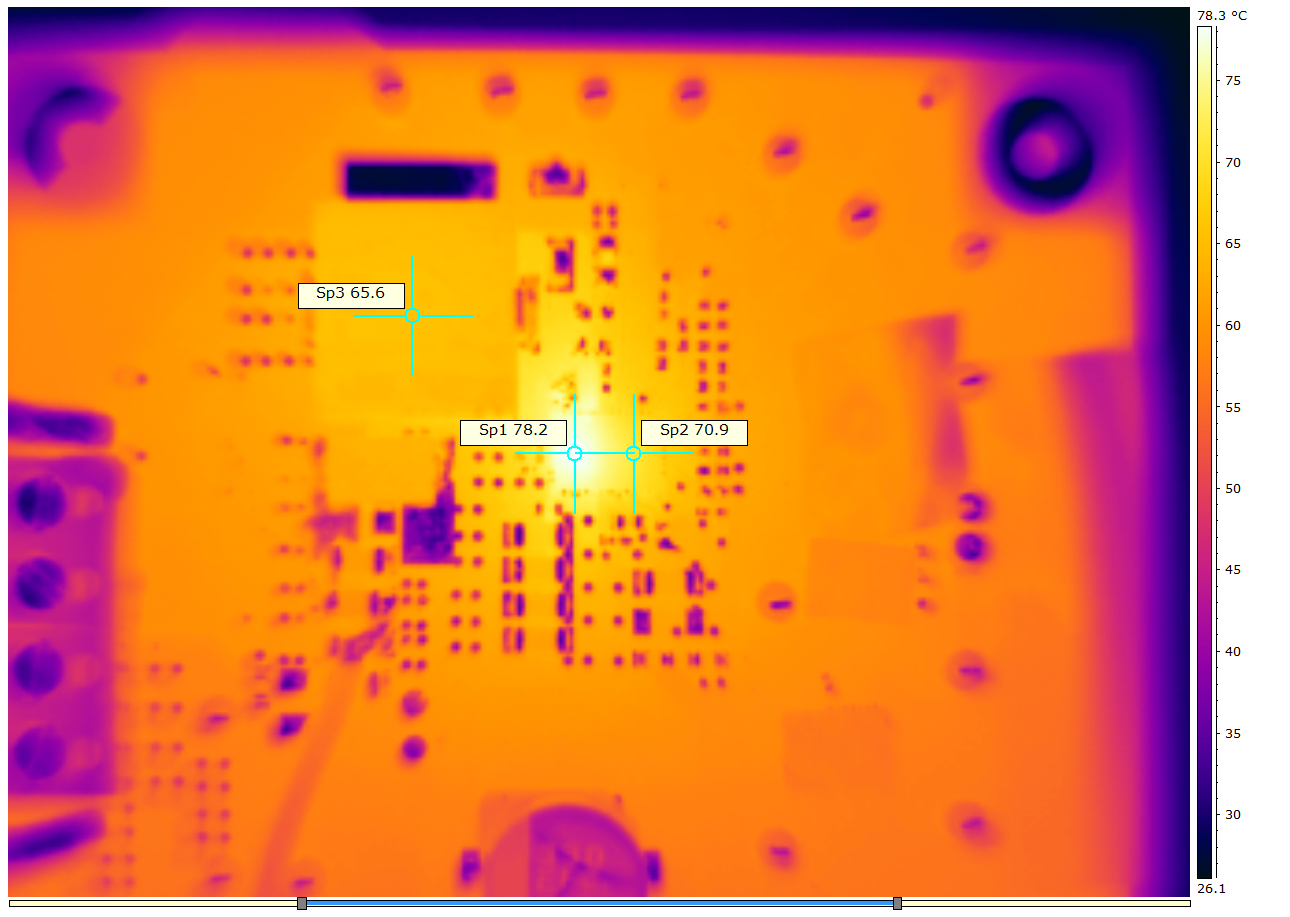

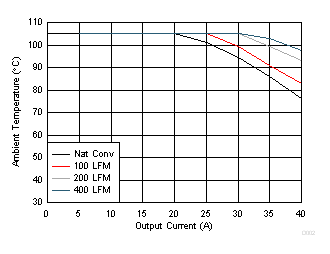

Figure 45. Thermal Image at 0.9-V Output at 12 VIN, 40-A Output, at 25°C Ambient
1.
Figure 44. Safe Operating Area | VIN = 12 V | VOUT = 1 V | 500 kHz |

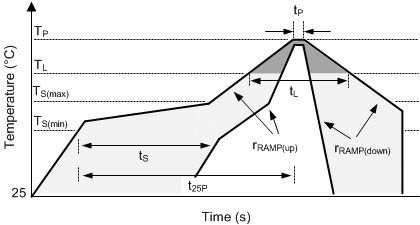

Figure 46. Recommended Reflow Oven Thermal Profile Table 7. Recommended Thermal Profile Parameters
| PARAMETER | MIN | TYP | MAX | UNIT | ||||
|---|---|---|---|---|---|---|---|---|
| RAMP UP AND RAMP DOWN | ||||||||
| rRAMP(up) | Average ramp-up rate, TS(MAX) to TP | 3 | °C/s | |||||
| rRAMP(down) | Average ramp-down rate, TP to TS(MAX) | 6 | °C/s | |||||
| PRE-HEAT | ||||||||
| TS | Pre-heat temperature | 150 | 200 | °C | ||||
| tS | Pre-heat time, TS(min) to TS(max) | 60 | 180 | s | ||||
| REFLOW | ||||||||
| TL | Liquidus temperature | 217 | °C | |||||
| TP | Peak temperature | 260 | °C | |||||
| tL | Time maintained above liquidus temperature, TL | 60 | 150 | s | ||||
| tP | Time maintained within 5°C of peak temperature, TP | 20 | 40 | s | ||||
| t25P | Total time from 25°C of peak temperature, TP | 480 | s | |||||
