8.4.7 Switching Frequency
The converter supports analog frequency selections from 300 kHz to 2 MHz, for stand alone device and sync frequency from 300 kHz to 1 MHz for stackable configuration. The RT pin also sets clock sync point (SP) for the slave device.
Switching Frequency Configuration for Stand-alone and Master Device in Stackable Configuration
Figure 15. Standalone: RT Pin Sets the Switching Frequency

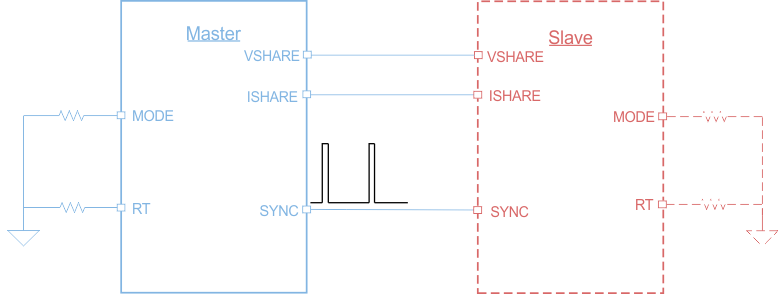

Figure 16. Stackable: Master (as Clock Master) RT Pin Sets Switching Frequency, and passes it to Slave Resistor RRT sets the continuous switching frequence selection by
Equation 1.
where
- R is the resistor from RT pin to GND, in Ω
- ƒSW is the desired switching frequency, in Hz
