7.6 Typical Characteristics

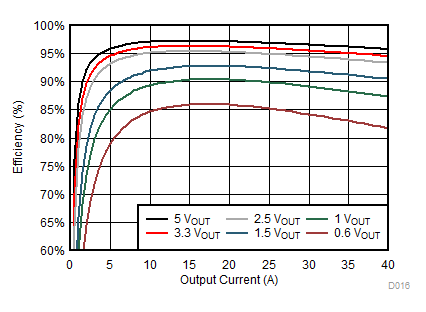

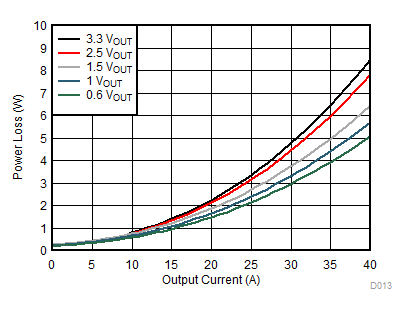

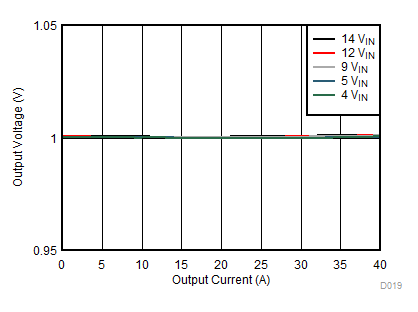

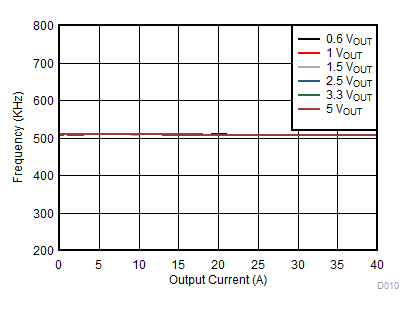

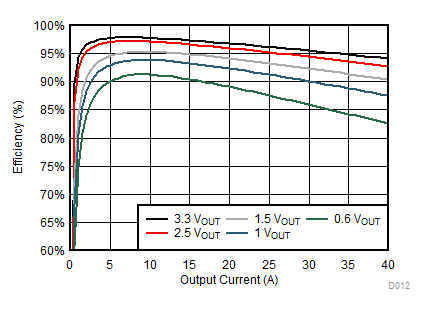

VIN = VDD = 12 V, TA = 25°C, RRT = 40.2 kΩ, TA= 25°C (unless otherwise specified)
| VIN = 5 V | 500 kHz | 25°C |
| VIN = 12 V | 500 kHz | 25°C |
| VOUT = 1 V | 1 MHz | 25°C |
| VIN = 12 V | 500 kHz | 25°C |
| VOUT = 1 V | 1 MHz | 25°C |
Figure 11. Output Voltage Start-Up and Shutdown

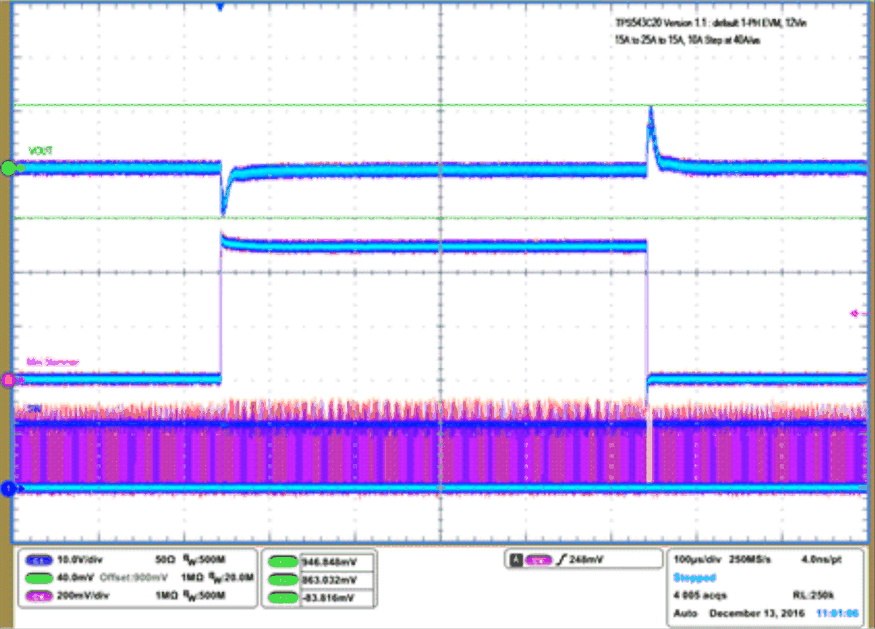

| 15 A to 25 A to 15 A, 10-A Step at 40 A/µs | ||
| VIN = 5 V | 500 kHz | 25°C |
| VIN = 12 V | 500 kHz | 25°C |
| VOUT = 1 V | 1 MHz | 25°C |
| VIN = 12 V | 500 kHz | 25°C |

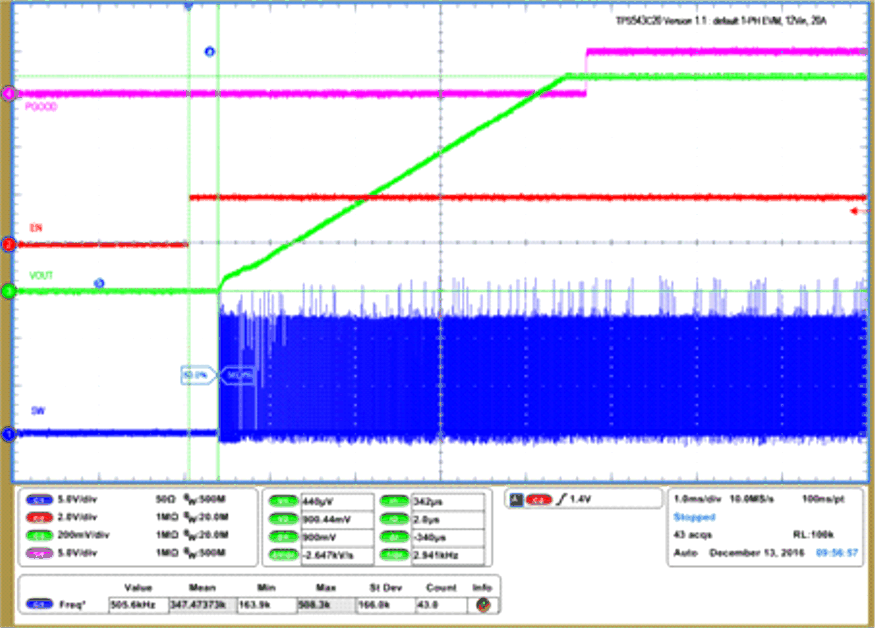

Figure 10. Start-Up From EN

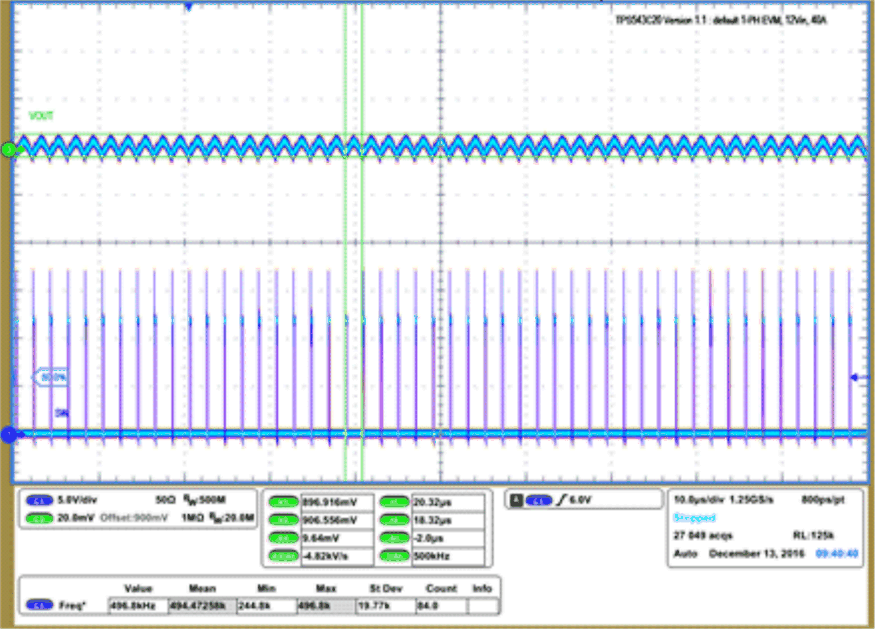

Figure 12. Output Voltage Ripple at Steady State
