9.2.3 Application Curves

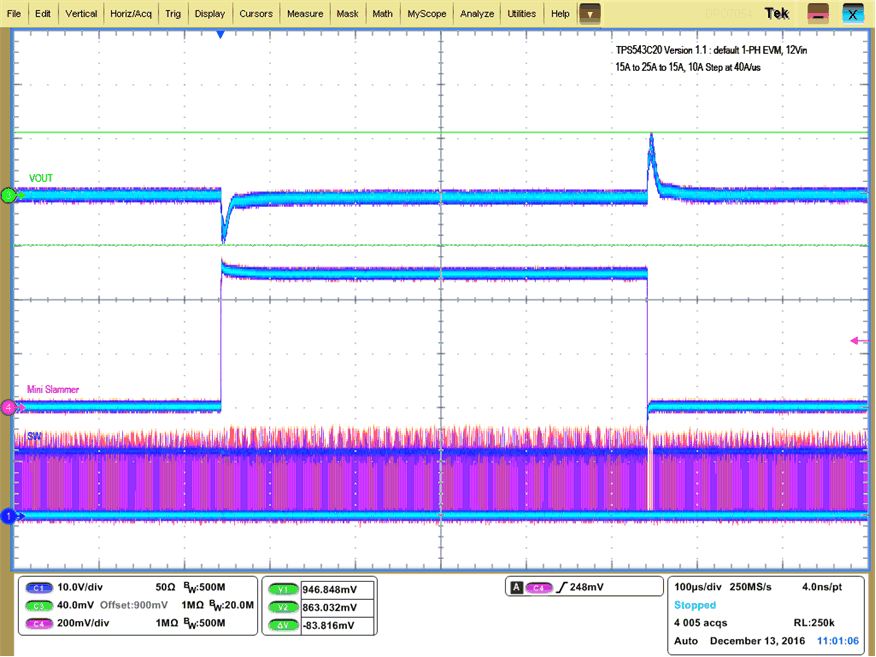

Figure 26. Transient Response of 0.9-V Output at 12-VIN,
Transient is 15 A to 25 A to 15 A,
the Step is 10 A at 40 A/μs

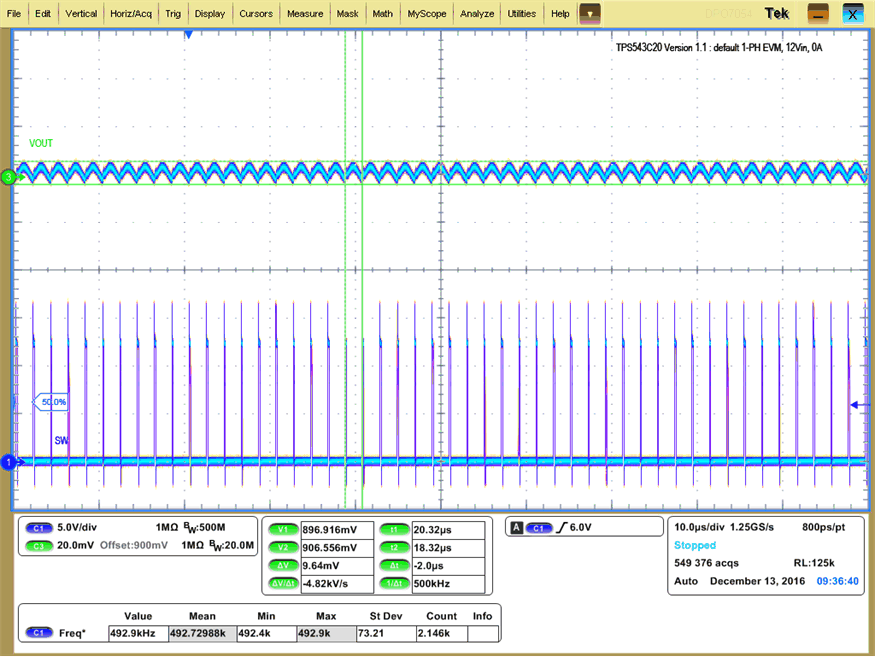

Figure 28. Output Ripple and SW Node of 0.9-V Output at 12-VIN, 0-A Output
Figure 30. 0.5-V Prebias start up from Control, 0.9-V Output at 12-VIN, 20-A Output
Figure 27. Output Ripple and SW Node of 0.9-V Output at 12-VIN, 40-A Output

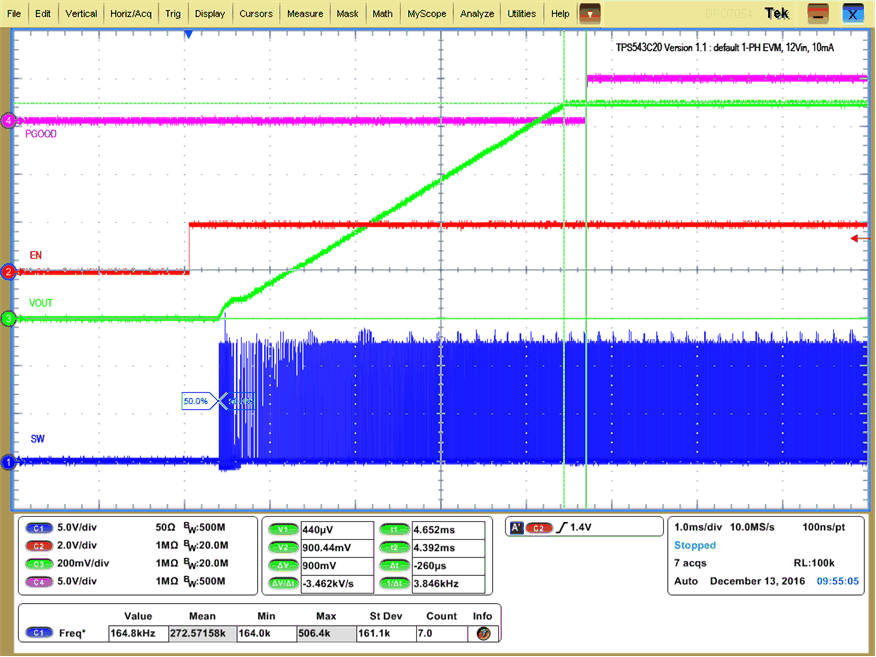

Figure 29. Start up from Control, 0.9-V Output at 12-VIN, 10-mA Output

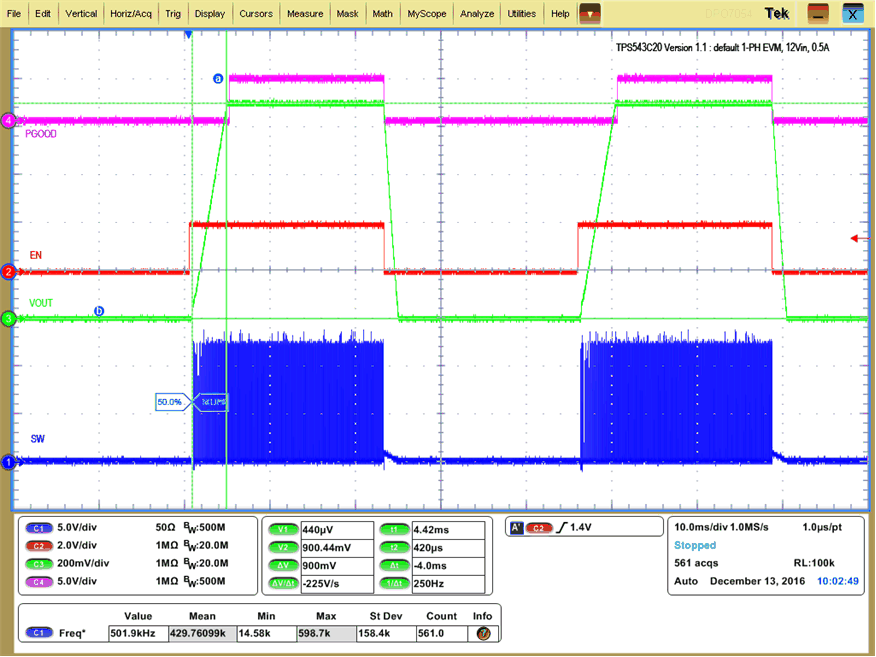

Figure 31. Output Voltage Start-up and Shutdown, 0.9-V Output at 12-VIN, 0.5-A Output
