8.4.10.2 Configuration 2: Master and Slave Sync to External System Clock
- Direct connection between external clock and SYNC pin of Master and Slave.
- Direct VSHARE and ISHARE connections between Master and Slave.
- SYNC pin of master will be configured as sync in by it’s MODE pin.
- Master and Slave receive external system clock from SYNC pin. Their RT pin determine the sync point for clock phase shift.

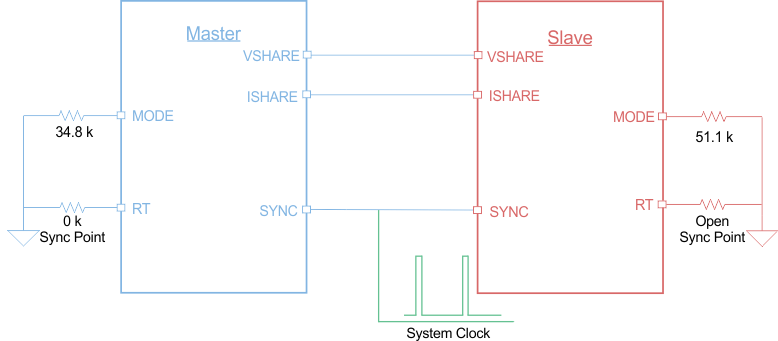

Figure 19. 2-Phase Stackable with 180° Phase Shift: Master and Slave Sync to External System Clock
