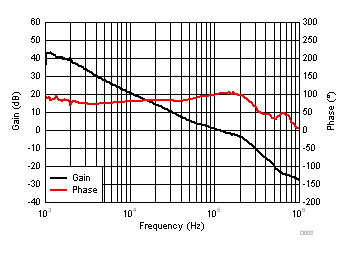

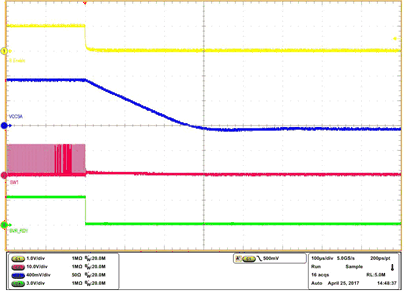

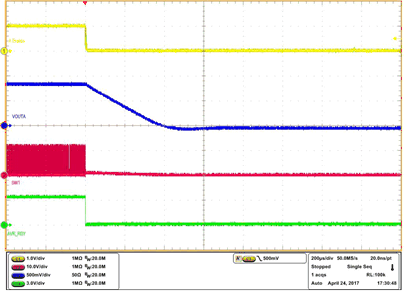

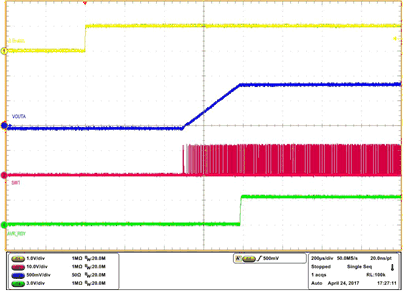

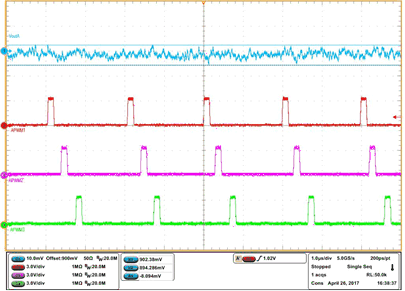

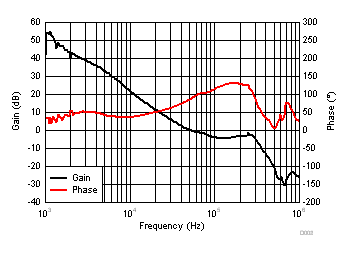

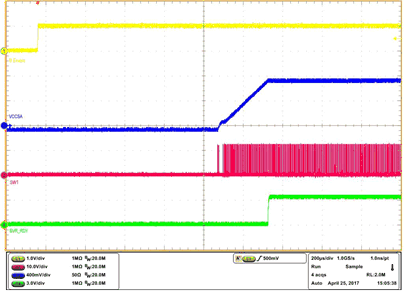

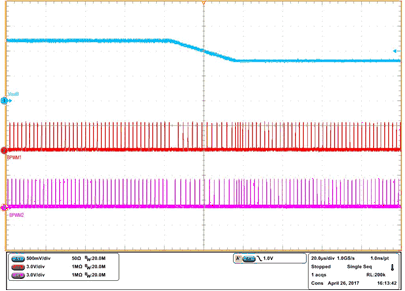

8.2.1.5 Application Performance Plots

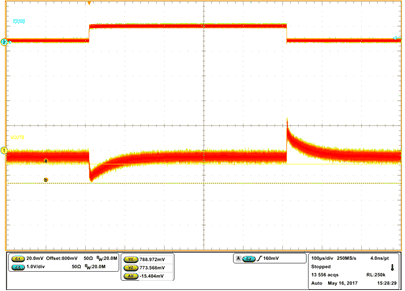

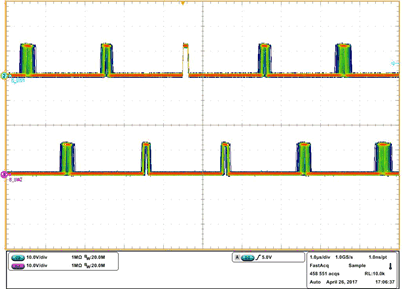

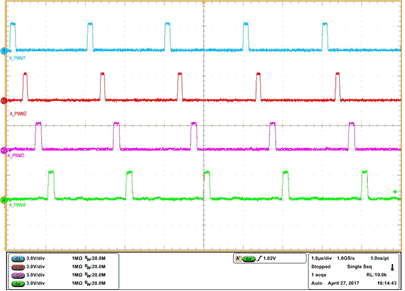

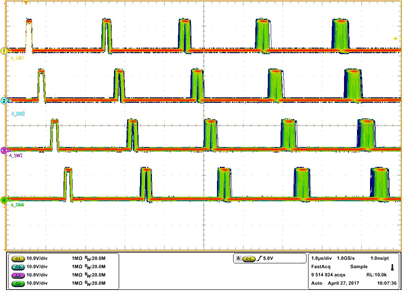

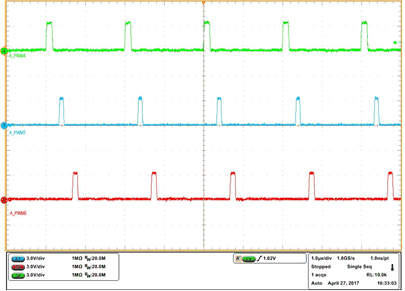

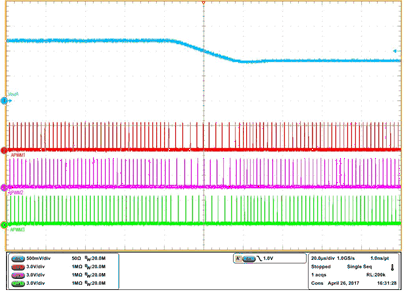

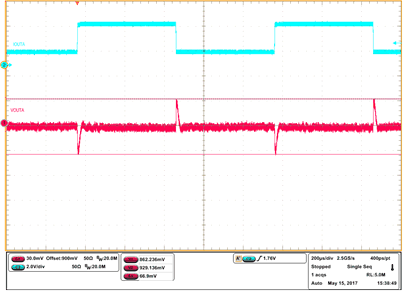

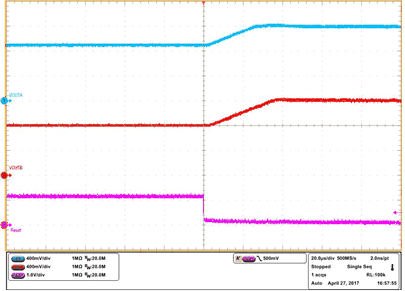

For this design, choose 500 kHz for the switching frequency. The frequency is an approximate frequency and is expected to vary based on load and input voltage.
| VVIN = 12 V | VVOUT_A = 0.9 V |
| IOUTA = 10 A |

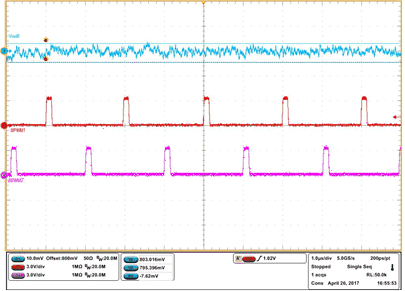

| VVIN = 12 V | VVOUT_B = 0.8 V |
| IOUTB = 10 A |
| VVIN = 12 V | VVOUT_A = 0.9 V |
| IOUTA = 30 A |
| VVIN = 12 V | VVOUT_A = 0.9 V |
| IOUT_A = 10 A |
| VVIN = 12 V | VVOUT_A = 0.9 V |
| IOUT_A = 10 A |
| VVIN = 12 V | VVOUT_A = 0.9 V |
| IOUT_A from 150 A to 300 A | |
| Slew rate = 100 A/µs | |
| VVIN = 12 V | IVOUT_A = 30 A |

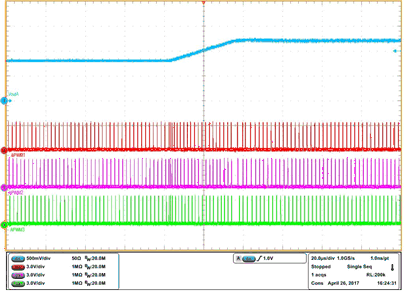

| VOUT_A VID step from 0.8 V to 1.2 V | |
| VVIN = 12 V | IVOUT_B = 30 A |
| VOUT_B VID step from 0.8 V to 1.2 V | |
| VVIN = 12 V | |||
| VOUT_A change from 0.9 V to 1.2 V | |||
| VOUT_B change from 0.8 V to 1.2 V | |||
| VVIN = 12 V | VVOUT_A = 0.9 V |
| IOUTA = 10 A |
| VVIN = 12 V | VVOUT_B = 0.8 V |
| IOUTB = 10 A |
| VVIN = 12 V | VVOUT_B = 0.8 V |
| IOUT_B = 30 A |
| VVIN = 12 V | VVOUT_A = 0.9 V |
| IOUT_A = 10 A |
| VVIN = 12 V | VVOUT_B = 0.8 V |
| IOUT_B = 10 A |
| VVIN = 12 V | VVOUT_B = 0.8 V |
| IOUT_B from 1 A to 41 A | |
| Slew rate = 100 A/µs | |
| VVIN = 12 V | IVOUT_A = 30 A |
| VOUT_A VID step from 1.2 V to 0.8 V | |
| VVIN = 1.2 V | IVOUT_B = 30 A |
| VOUT_B VID step from 1.2 V to 0.8 V | |
| VVIN = 12 V | VVOUT_A = 900 mV |
| IOUT_A = 100 A | |
| VVIN = 12 V | VVOUT_B = 800 mV |
| IOUT_B = 30 A | |
