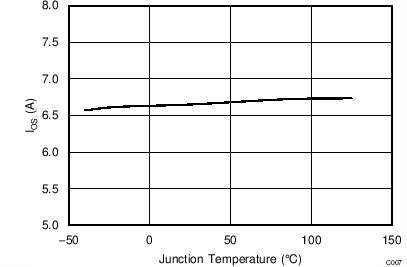

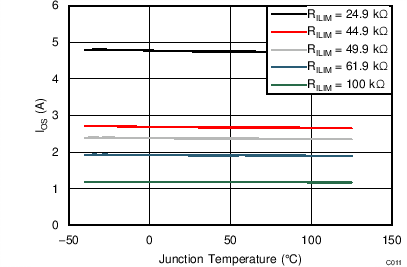

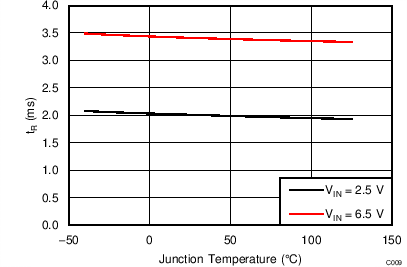

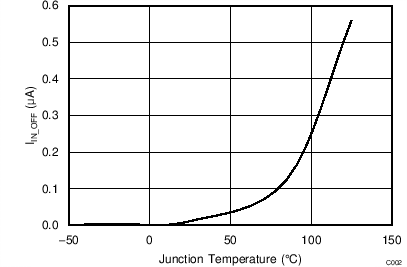

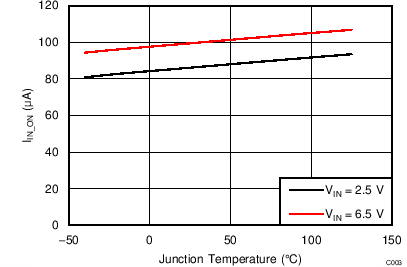

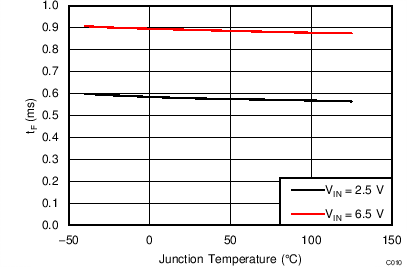

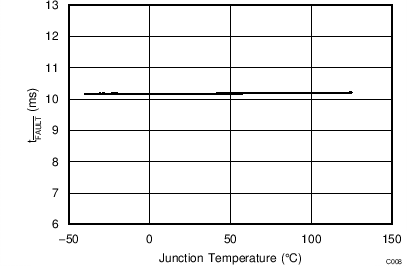

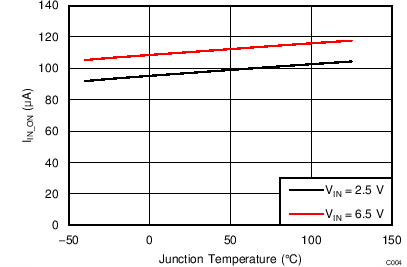

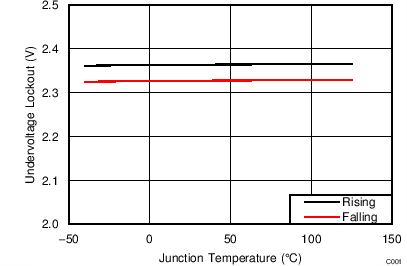

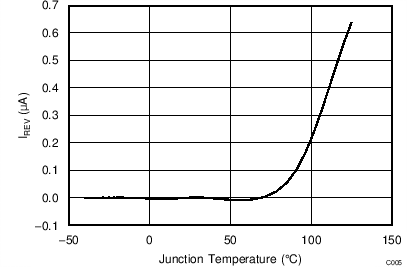

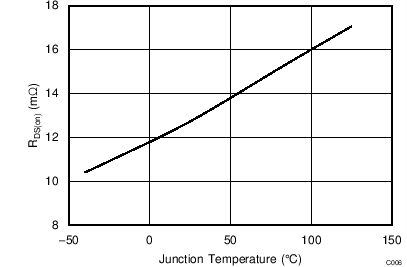

7.8 Typical Characteristics
| R(ILIM) = 100 k? |
| VOUT = 6.5 V |
| VIN = 6.5 V, ILIM pin short to GND |
| COUT = 1 μF, R(LOAD) = 100 ? |
| VIN = 6.5 V |
| VIN = 6.5 V |
| R(ILIM) = 24.9 k? |
| VIN = 5 V |
| V( FAULT) = 2.5 V |
| COUT = 1 μF, R(LOAD) = 100 ? |
