9.2 Typical Application

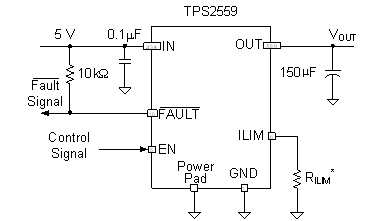

Figure 9-1 Typical TPS2559 Power SwitchUse the IOS in the Section 7.5 table or IOS in Equation 1 to select the RILIM.
