6.8 Timing Diagrams
Rise and fall time
of VEN is 100 ns.

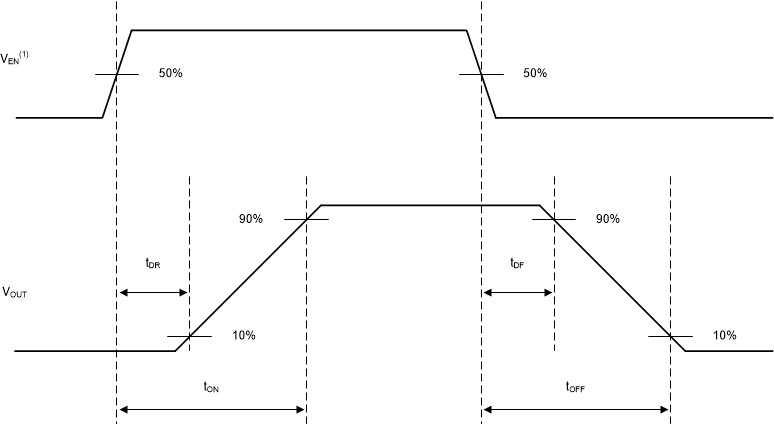

Figure 6-1 Switching
Characteristics Definitions
Rise and
fall times of control signals are 100 ns. Control signals include: EN,
DIA_EN.

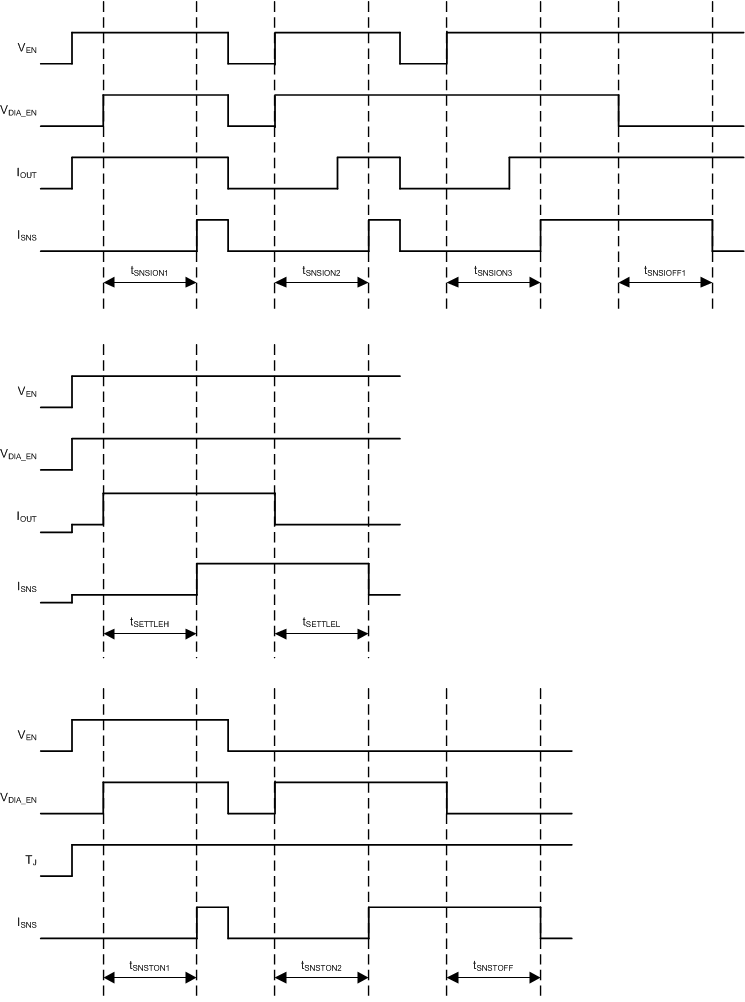

Figure 6-2 SNS
Timing Characteristics Definitions
