6.7 Switching Characteristics
VVS = 13.5 V, Rload = 10 Ω, over operating free-air temperature range (unless otherwise noted)(1)| PARAMETER | TEST CONDITIONS | MIN | TYP | MAX | UNIT | |
|---|---|---|---|---|---|---|
| td,ON | Turn-on delay time | IN rising edge to VOUT = 10%, DIAG_EN high | 20 | 50 | µs | |
| td,OFF | Turn-off delay time | IN falling edge to VOUT = 90%, DIAG_EN high | 20 | 50 | µs | |
| dV/dtON | Slew rate on | VOUT = 10% to 90%, DIAG_EN high | 0.1 | 0.5 | V/µs | |
| dV/dtOFF | Slew rate off | VOUT = 90% to 10%, DIAG_EN high | 0.1 | 0.5 | V/µs | |
| Slew rate on and off matching | –0.15 | 0.15 | V/µs | |||
(1) Value specified by design, not subject to production test.
Figure 5. Switching Characteristics Diagram

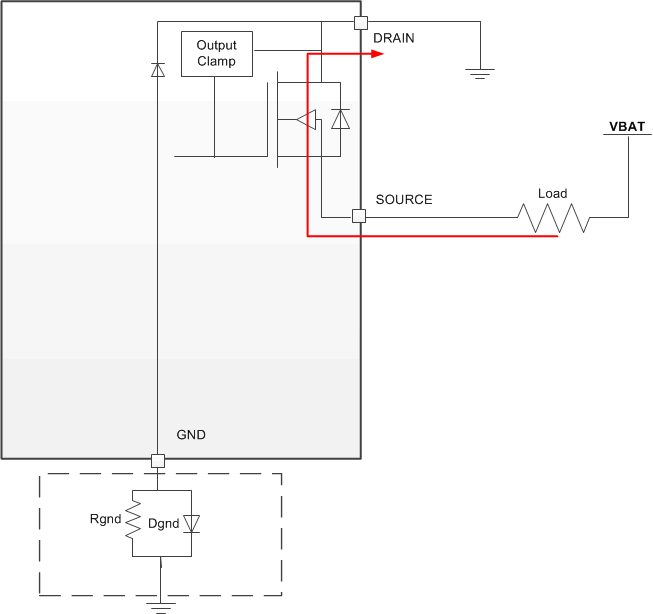

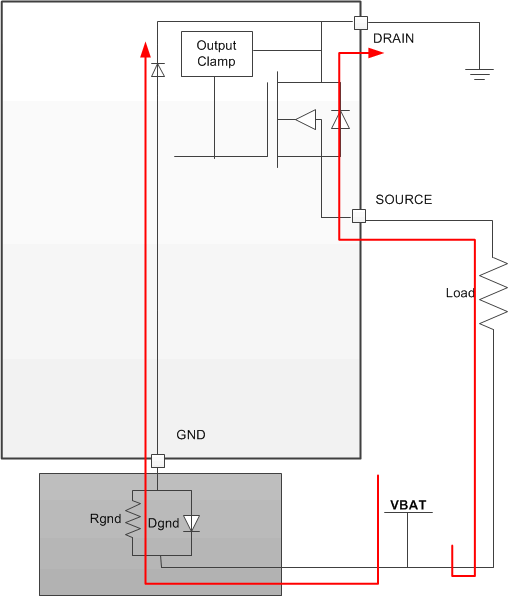

Figure 7. Irev2 Test Condition
