ZHCSSV5 January 2024 TMP119
PRODUCTION DATA
at TA = 25°C, V+ = 3.3V, and measurement taken in oil bath (unless otherwise noted)
| 1Hz conversion cycle, 8 averages mode |
Figure 6-4 Data Reading Distribution (No Averaging, V+ = 3.3V)

| Serial bus inactive |

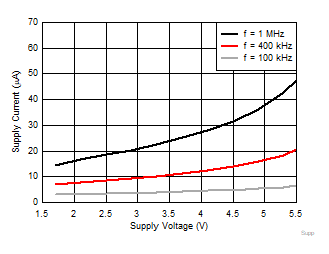

| SCL pin clocked |

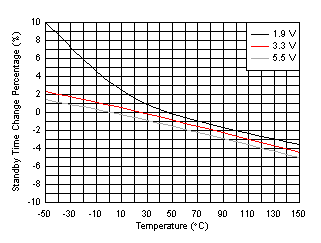

Figure 6-10 Standby Time vs Temperature

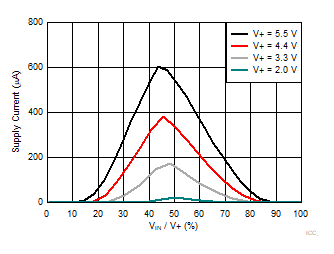

| Input voltage of SCL, SDA, or ADD0 pin |
| TA = 25°C. V+ = 3.3V. One-shot mode with averaging = 8. |

| Serial bus inactive |

| Normalized to 25°C and V+ = 3.3V |

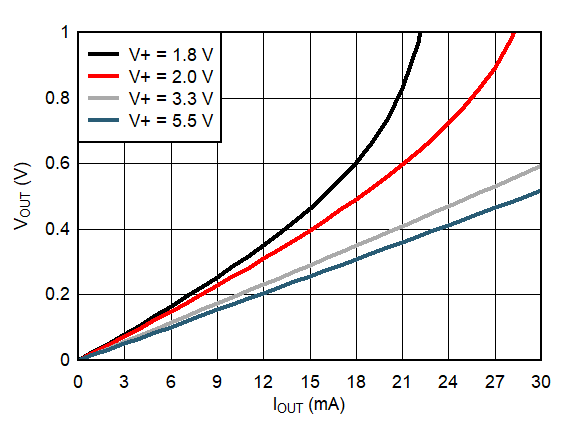

Figure 6-11 ALERT Pin Output Voltage vs Pin Sink Current
