8 Parameter Measurement Information

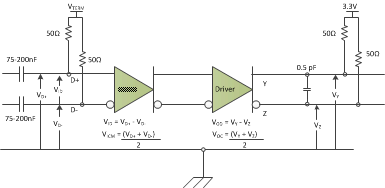

Figure 4. TMDS Main Link Test Circuit
Figure 5. Input and Output Timing Measurements

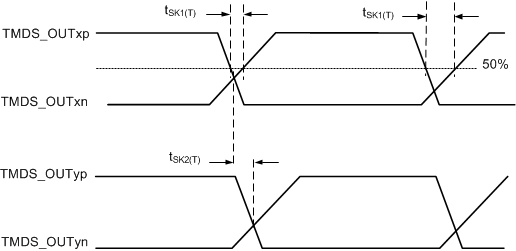

Figure 6. HDMI and DVI Sink TMDS Output Skew Measurements
Figure 7. TMDS Main Link Common Mode Measurements

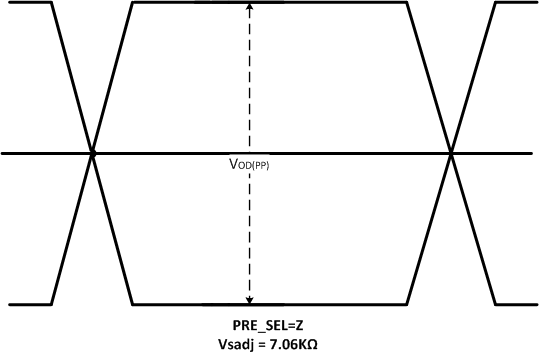

Figure 8. Output Differential Waveform 0 dB De-Emphasis

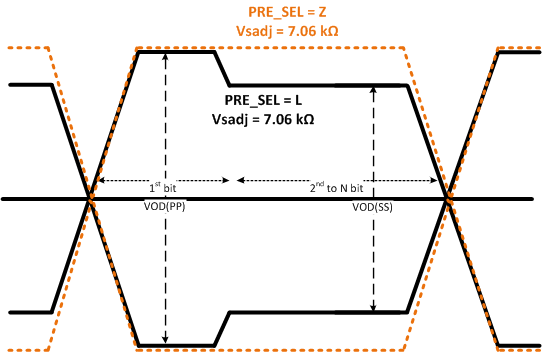

Figure 9. PRE_SEL = L for –2-dB De-Emphasis
1. The FR4 trace between TTP1 and TTP2 is designed to emulate 1-8” of FR4, AC coupling cap, connector and another 1-2” of FR4. Trace width – 4 mils. 100-Ω differential impedance.
2. All jitter is measured at a BER of 10-9.
3. Residual jitter reflects the total jitter measured at TTP4 minus the jitter measured at TTP1.
4. AVCC = 3.3-V
5. RT = 50-Ω
6. The input signal from parallel bit error rate tester (BERT) does not have any pre-emphasis. Refer to Recommended Operating Conditions.

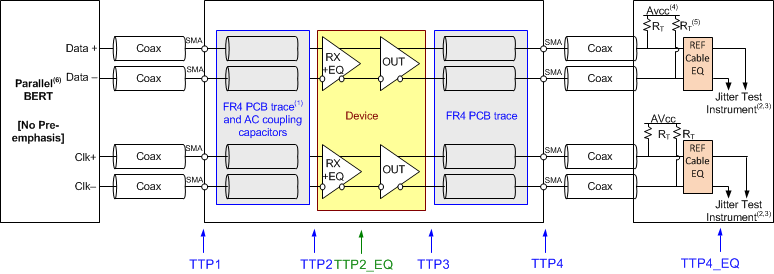

Figure 10. TMDS Output Jitter Measurement

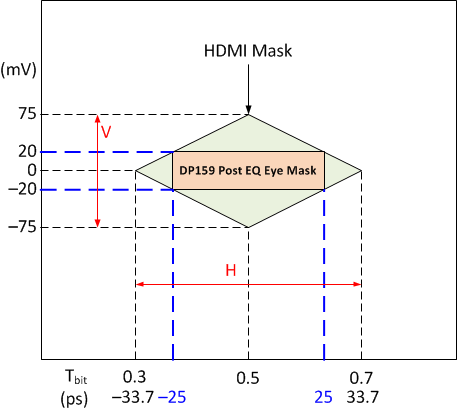

Figure 11. Post EQ Input Eye Mask at TTP2_EQ | TMDS DATA RATE (Gbps) | H (Tbit) | V (mV) |
| 3.4 < DR < 3.712 | 0.6 | 335 |
| 3.712 < DR < 5.94 | –0.0332Rbit2 + 0.2312Rbit + 0.1998 | –19.66Rbit2 + 106.74Rbit + 209.58 |
| 5.94 ≤ DR ≤ 6.0 | 0.4 | 150 |
Figure 13. HPD Test Circuit
Figure 14. HPD Timing Diagram Number 1

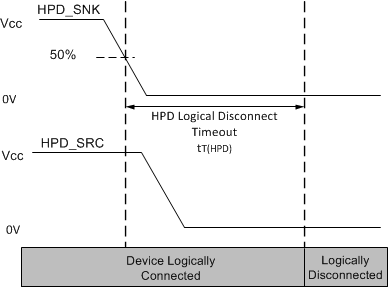

Figure 15. HPD Logic Disconnect Timeout

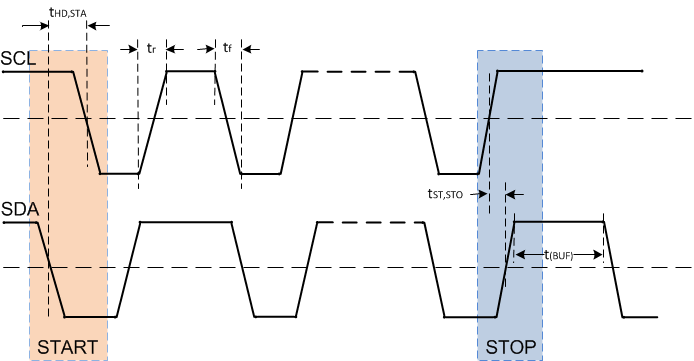

Figure 16. Start and Stop Condition Timing

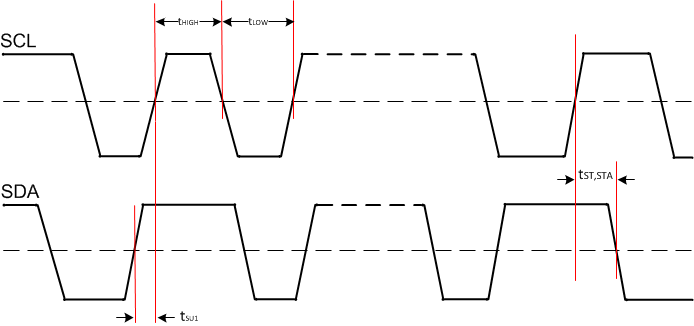

Figure 17. SCL and SDA Timing

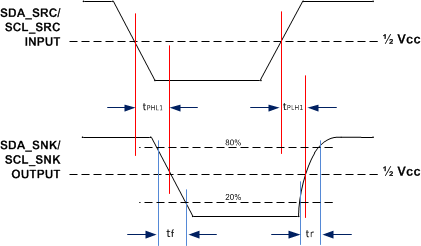

Figure 18. DDC Propagation Delay – Source to Sink

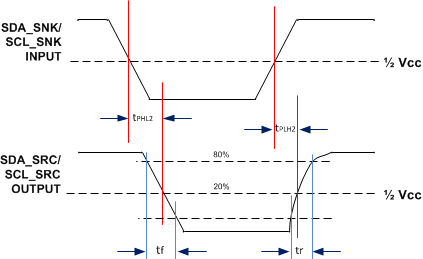

Figure 19. DDC Propagation Delay – Sink to Source
