6.8 Typical Characteristics

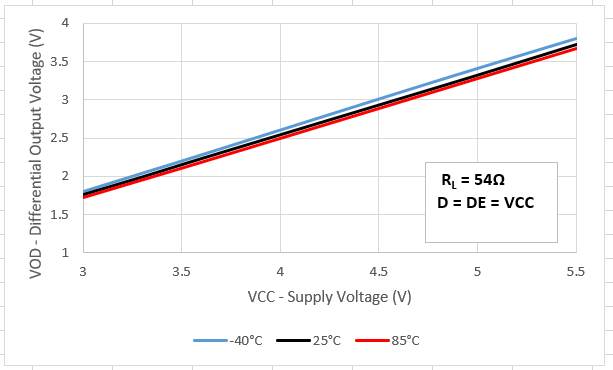

Figure 6-2 Differential Output Voltage vs Supply Voltage

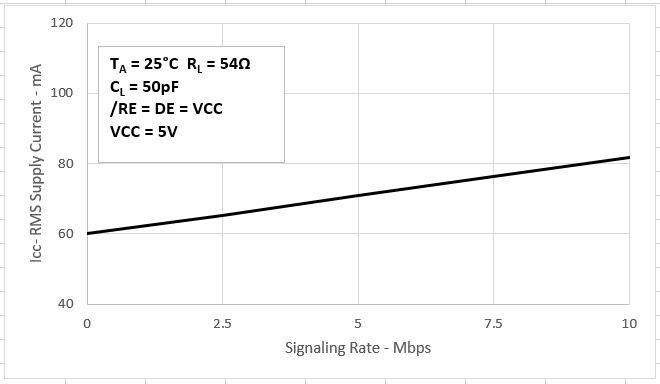

Figure 6-4 RMS
Supply Current vs Signaling Rate

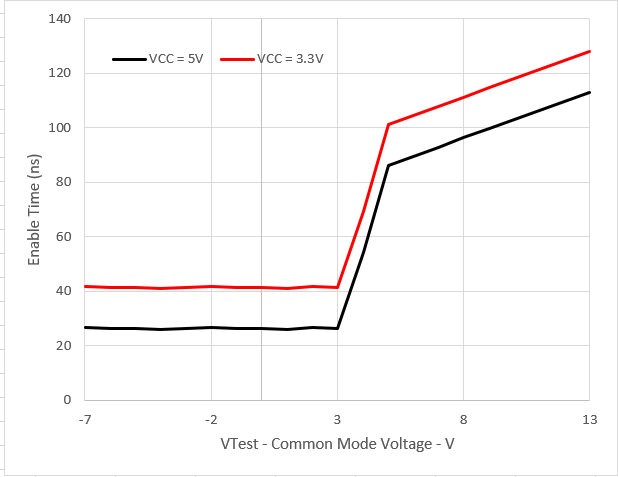

Figure 6-6 Enable Time vs Common-Mode Voltage (See Figure 6-1)

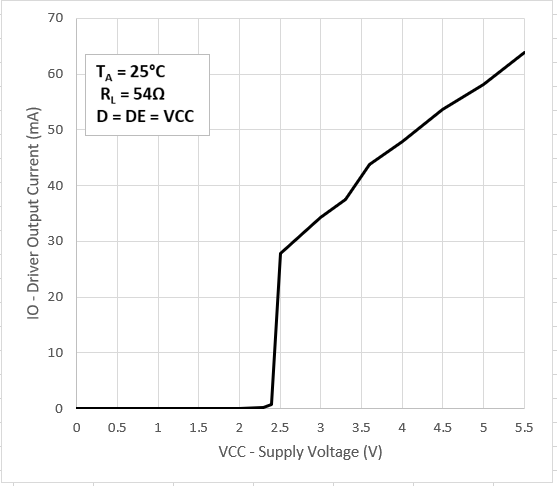

Figure 6-3 Driver Output Current vs Supply Voltage

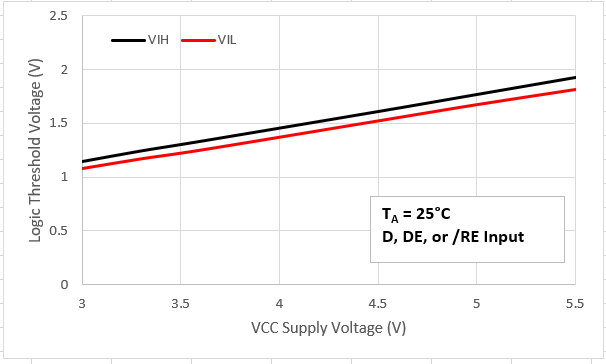

Figure 6-5 Logic
Input Threshold Voltage vs Supply Voltage
