7 Parameter Measurement Information
Figure 7-1 Driver VOD With Common-Mode Loading Test Circuit

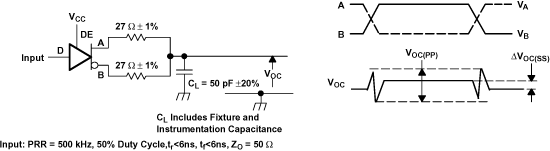

Figure 7-2 Test Circuit and Definitions for the Driver Common-Mode Output Voltage

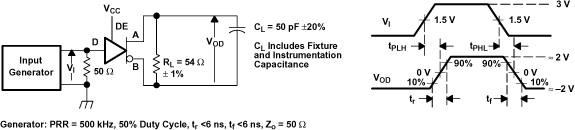

Figure 7-3 Driver Switching Test Circuit and Voltage Waveforms

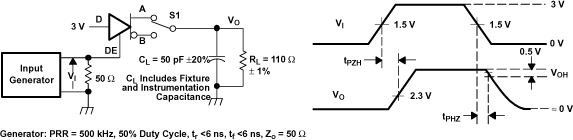

Figure 7-4 Driver High-Level Enable and Disable Time Test Circuit and Voltage Waveforms
Figure 7-5 Driver Low-Level Output Enable and Disable Time Test Circuit and Voltage Waveforms

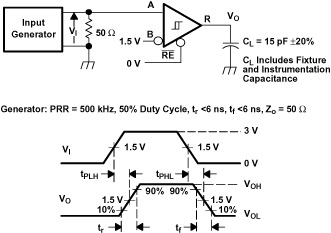

Figure 7-6 Receiver Switching Test Circuit and Voltage Waveforms

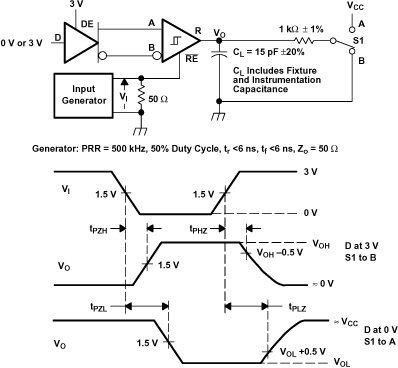

Figure 7-7 Receiver Enable and Disable Time Test Circuit and Voltage Waveforms With Drivers Enabled

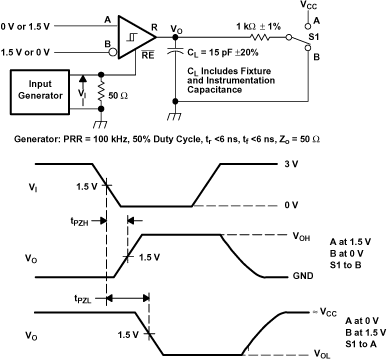

Figure 7-8 Receiver Enable Time From Standby (Driver Disabled)
