9.2.3 Application Curve

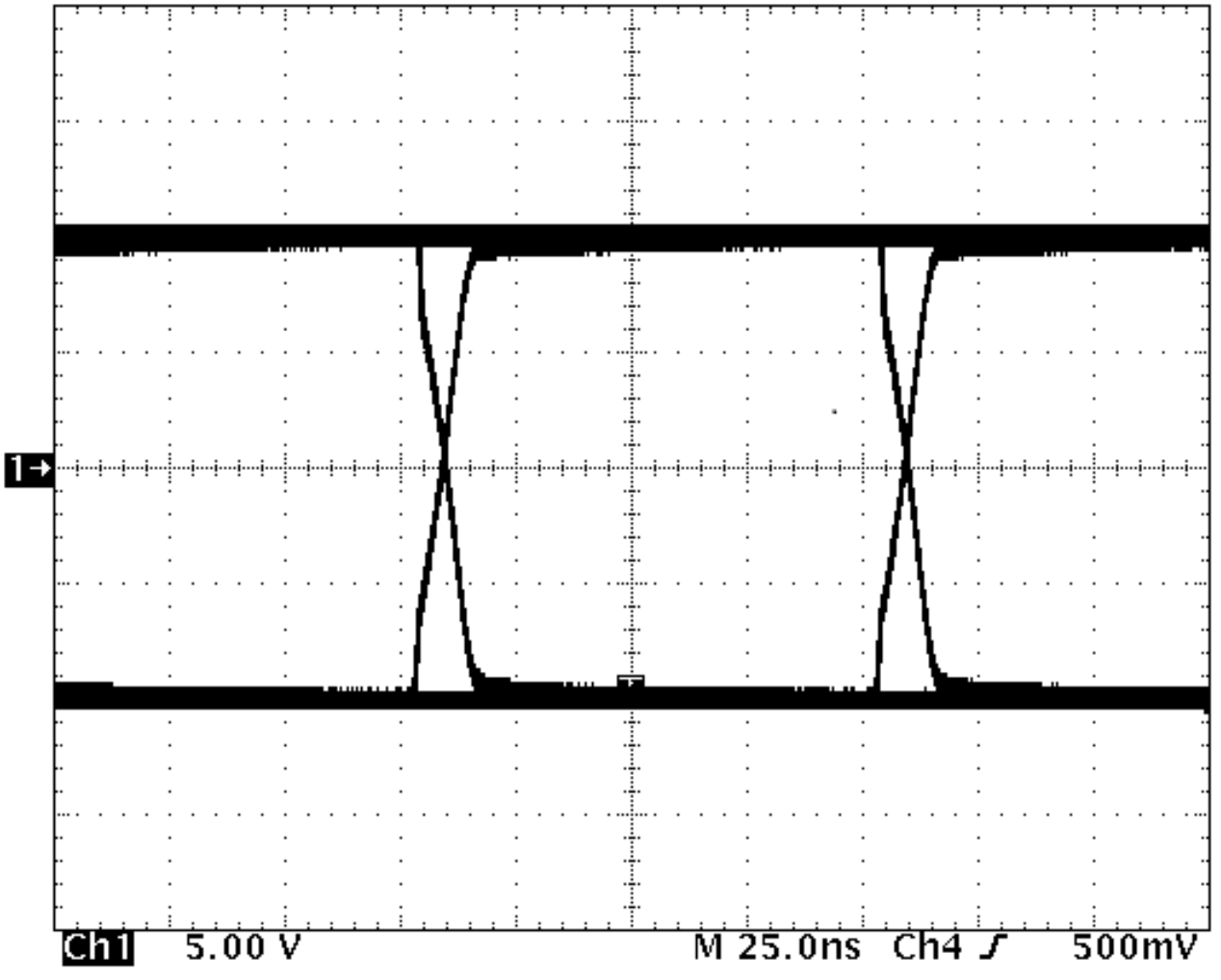

Figure 9-8 demonstrates operation of the SN65HVD08 at a signaling rate of 10 Mbps.
Figure 9-8 SNx5HVD08 Differential Output Waveform
