8.4 Device Functional Modes
Table 8-1 Function Table: Driver
| INPUT | ENABLE | OUTPUTS | |
|---|---|---|---|
| D | DE | A | B |
| H L X Open | H H L H | H L Z H | L H Z L |
Table 8-2 Function Table: Receiver
| DIFFERENTIAL INPUTS | ENABLE(1) | OUTPUT(1) |
|---|---|---|
| VID = VA - VB | RE | R |
| VID≤ -0.2 V -0.2 V < VID < -0.01 V -0.01 V ≤ VID X Open Circuit Short Circuit | L L L H L L | L ? H Z H H |
(1) H = high level; L = low level; Z = high impedance; X = irrelevant;
? = indeterminate
? = indeterminate

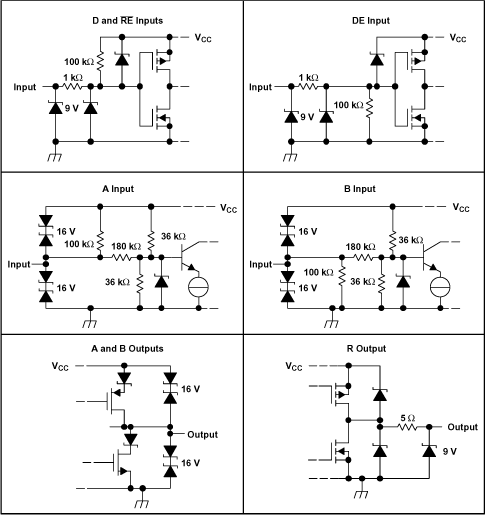

Figure 8-2 Equivalent Input and Output Schematic Diagrams
