8.3.1 Conserving Power Dissipation With Shutdown

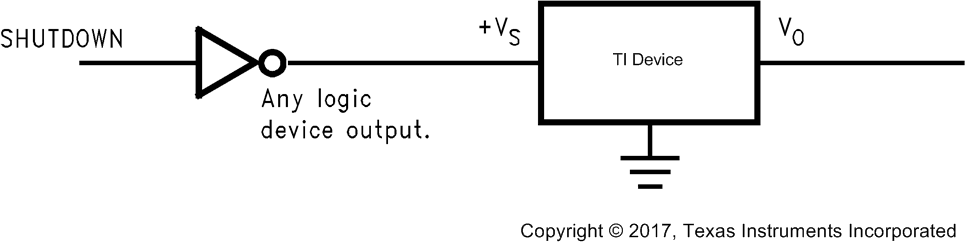

The LM60 draws very little power, therefore the device can simply be shutdown by driving the LM60 supply pin with the output of a logic gate as shown in Figure 8-7.
Figure 8-7 Conserving Power Dissipation With Shutdown
