4 Pin Configuration and Functions

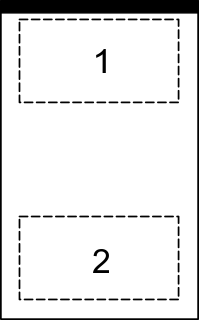

Figure 4-1 DPY Package, 2-Pin X1SON (Top View)Table 4-1 Pin Functions
| PIN | TYPE(1) | DESCRIPTION | |
|---|---|---|---|
| NAME | DPY | ||
| IO | 1 | I/O | ESD Protected Channel. Connect to the line being protected. |
| GND | 2 | GND | Connect to ground. |

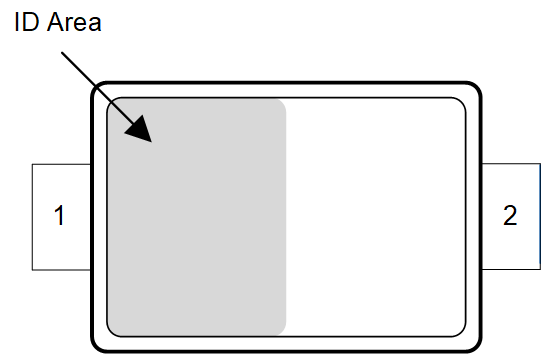

Figure 4-2 DYA Package, 2-Pin SOD-523 (Top View)Table 4-2 Pin Functions
| PIN | TYPE(1) | DESCRIPTION | |
|---|---|---|---|
| NAME | DYA | ||
| IO | 2 | I/O | ESD Protected Channel. Connect to the line being protected. |
| GND | 1 | GND | Connect to ground. |
(1) I = input, O = output, GND = ground
