ZHCSHX0C March 2018 – January 2023 DS90UB936-Q1
PRODUCTION DATA
The DS90UB936-Q1 is receiving two video streams from sensors on each input port. Each sensor is sending video streams using VC-IDs 0 and 1. Receive Port 0 maps the VC-IDs directly without change. Receive Port 1 maps the VC-IDs 0 and 1 to VC-IDs 2 and 3. This is required because each CSI-2 transmitter is limited to 4 VC-IDs per MIPI specification.

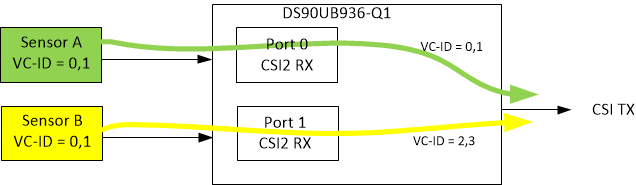

Figure 7-13 VC-ID Mapping Example 2

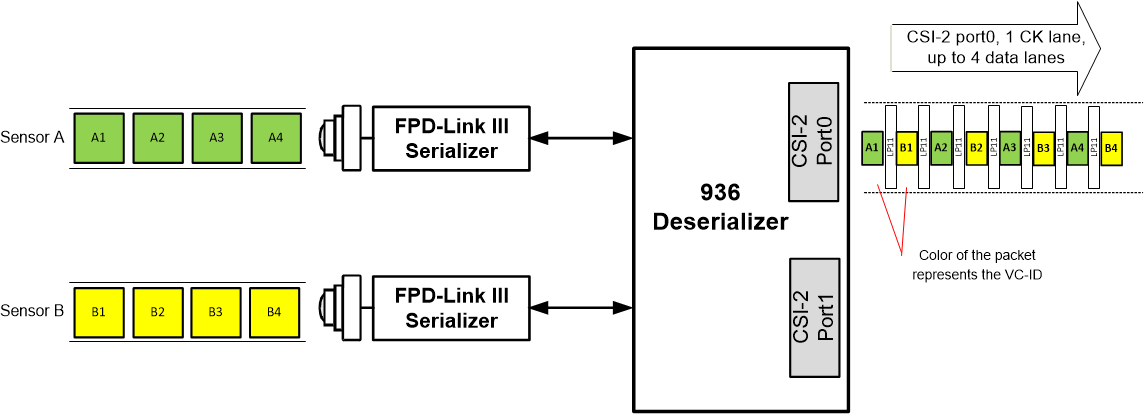

Figure 7-14 Two Sensor Data onto CSI-2 With Virtual Channels (VC-ID)

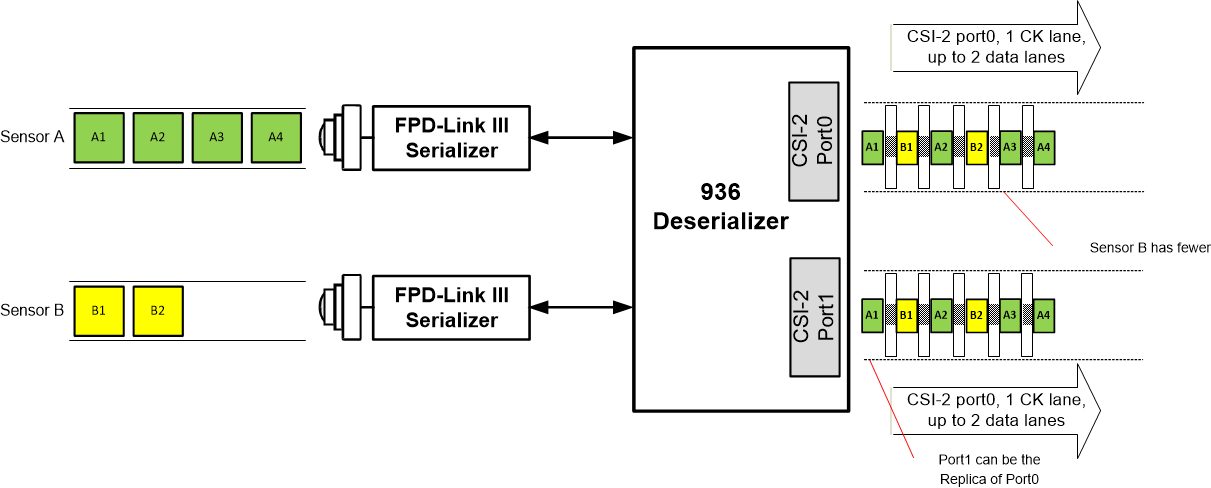

Figure 7-15 Two Sensor Data With Different Frame Size Replicated onto CSI-2 With Virtual Channels (VC-ID)
