7.3.6 Decay Modes
The DRV8884 decay mode is selected by setting the quad-level DECAY pin to the voltage range in Table 6.
Table 6. Decay Mode Settings
| DECAY | INCREASING STEPS | DECREASING STEPS |
|---|---|---|
| 100 mV
Can be tied to ground |
Slow decay | Mixed decay: 30% fast |
| 300 mV, 15 kΩ to GND | Mixed decay: 30% fast | Mixed decay: 30% fast |
| 1.0 V, 45 kΩ to GND | Mixed decay: 60% fast | Mixed decay: 60% fast |
| 2.9 V
Can be tied to DVDD |
Slow decay | Slow decay |

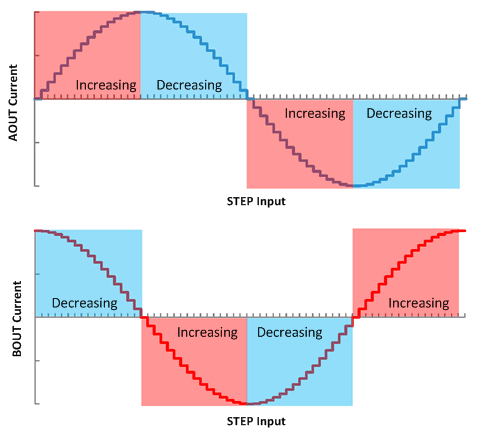

Increasing and decreasing current are defined in Figure 17. For the slow/mixed decay mode, the decay mode is set as slow during increasing current steps and mixed decay during decreasing current steps. In full-step mode, the decreasing steps decay mode is always used.
Figure 17. Definition of Increasing and Decreasing Steps
