7.3.9 Logic Level, Tri-Level and Quad-Level Pin Diagrams

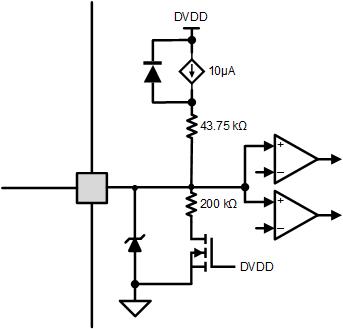

Figure 7-15 shows the input structure for M0, DECAY0 and ENABLE pins.

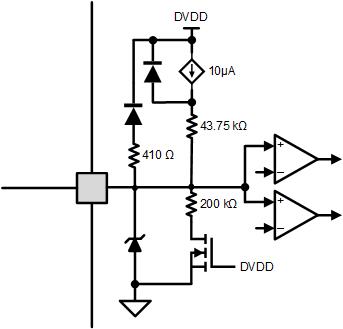

Figure 7-15 Tri-Level Input Pin DiagramFigure 7-16 shows the input structure for DECAY1 pin.

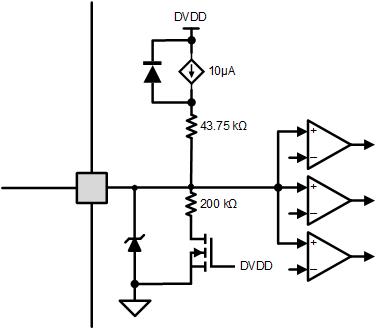

Figure 7-16 DECAY1 Pin DiagramFigure 7-17 shows the input structure for M1 and TOFF pins.
Figure 7-17 Quad-Level Input Pin DiagramFigure 7-18 shows the input structure for STEP, DIR and nSLEEP pins.
Figure 7-18 Logic-Level Input Pin Diagram
