ZHCSND1A November 2020 – May 2022 DRV8434
PRODUCTION DATA
- 1 特性
- 2 應用
- 3 說明
- 4 Revision History
- 5 Pin Configuration and Functions
- 6 規格
-
7 詳細說明
- 7.1 概述
- 7.2 功能模塊圖
- 7.3 特性說明
- 7.4 器件功能模式
- 8 Application and Implementation
- 9 Power Supply Recommendations
- 10Layout
- 11Device and Documentation Support
- 12Mechanical, Packaging, and Orderable Information
封裝選項
機械數據 (封裝 | 引腳)
散熱焊盤機械數據 (封裝 | 引腳)
- RGE|24
訂購信息
5 Pin Configuration and Functions

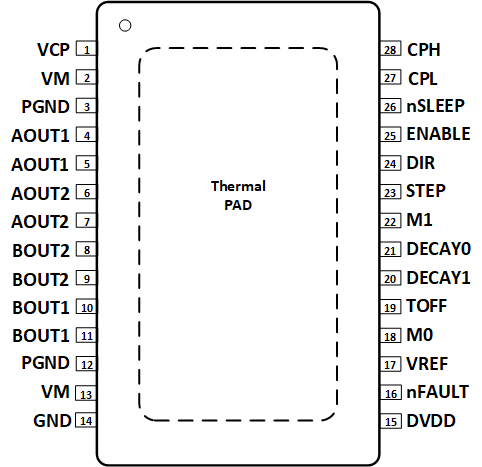

Figure 5-1 PWP PowerPAD? Package28-Pin
HTSSOPTop View

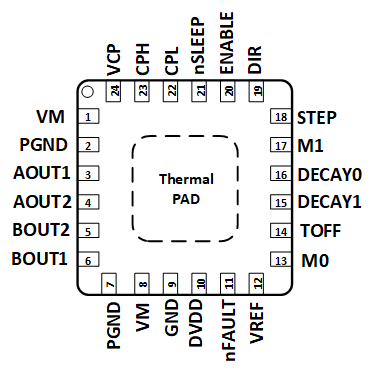

Figure 5-2 RGE Package24-Pin VQFN with Exposed
Thermal PADTop View
