9.2.2.3 Application Curves

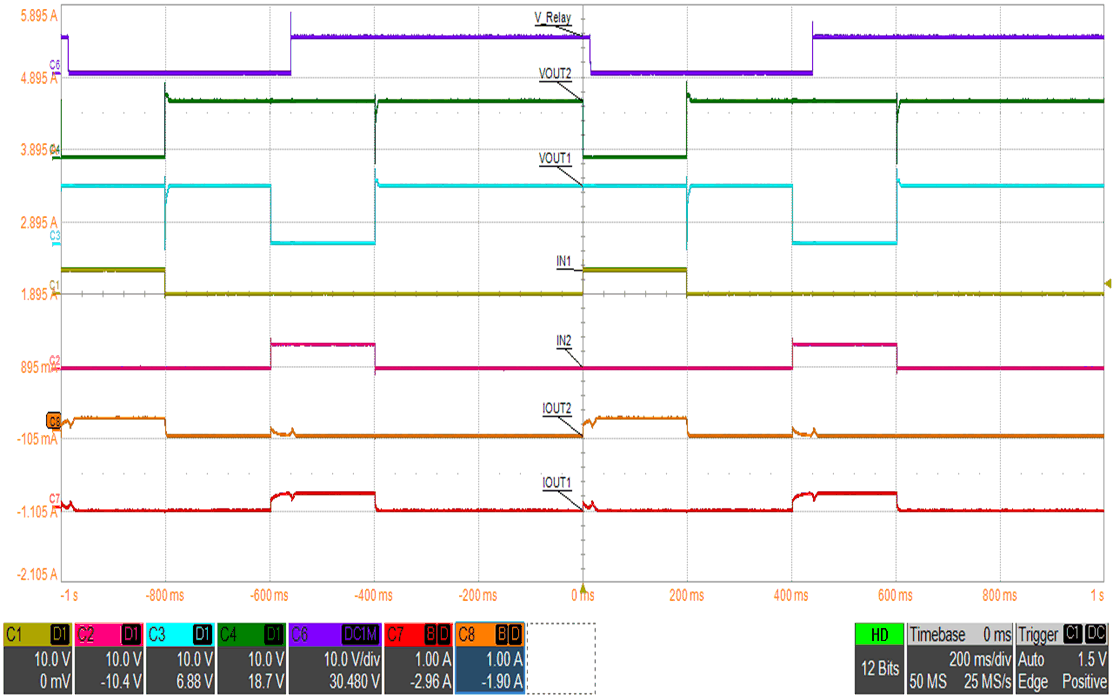

| Channel 1 = IN1 | Channel 2 = IN2 | Channel 3 = VOUT1 |
| Channel 4 = VOUT2 | Channel 6 = Relay Switch | Channel 7 = Relay Coil1 Current |
| Channel 8 = Relay Coil2 Current |
