9.2.1 Full-Bridge Driving
A typical application for the DRV8210P is driving a brushed DC motor or single-coil bistable latching relay bidriectionally (in forward and reverse) using the outputs as a full-bridge, or H-bridge, configuration. Figure 9-1 shows an example schematic for driving a motor, and Figure 9-2 shows an example schematic for driving a latching relay.

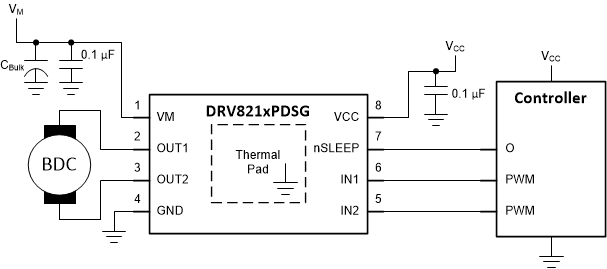

Figure 9-1 PWM interface
motor-driving application

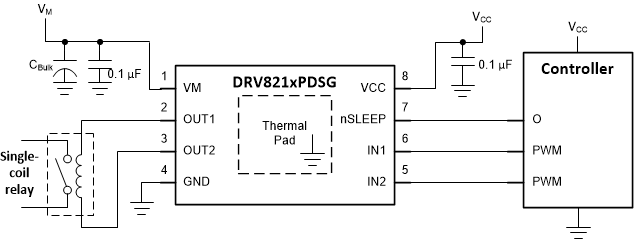

Figure 9-2 PWM interface
relay-driving application
