9.2.2 Dual-Coil Relay Driving

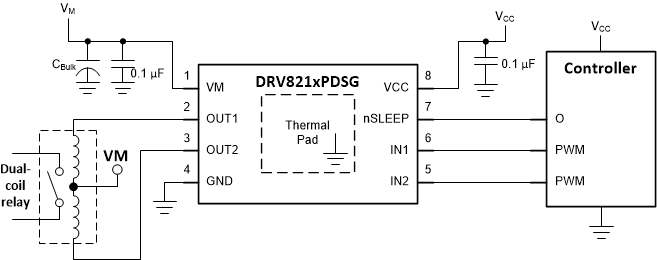

The PWM interface may also be used to drive a dual-coil latching relay. Figure 9-7 shows an example schematic.
Figure 9-7 Dual-coil
relay driving
