7.3.5.2 Output Overcurrent Protection (OUT OCP)
During normal operation, the OUT current should be regulated to the ISET programmed value. However, if a short circuit occurs on the ISET pin, the OUT current may rise to an unintended level. If current at the OUT pin exceeds IOUT_OCP, the device turns off after a deglitch, tOUT_OCP_DGL, and the device remains latched off. An input supply or CE pin toggle is required to restart operation.

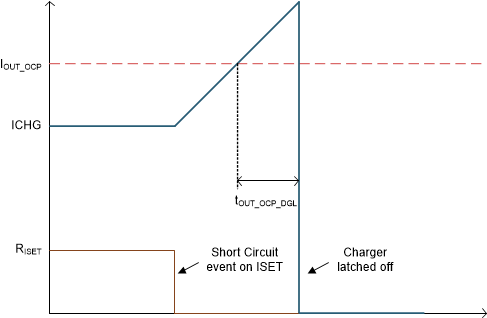

Figure 7-3 Overcurrent Protection
