6.7 Typical Characteristics
CIN = 1 μF, COUT = 1 μF
| IOUT = 10 mA | VOUT = 2.5 V |
| VIN = 12 V | VOUT = 10 V |
| VIN = 5 V and 12 V | VOUT = 3.8 V and 7.6 V |
| CE Pin = HIGH | VOUT = 0 V |
| VIN = 0 V |
| IOUT = 10 mA | VOUT = 10 V |
| VIN = 5 V | Temp. = 25oC |

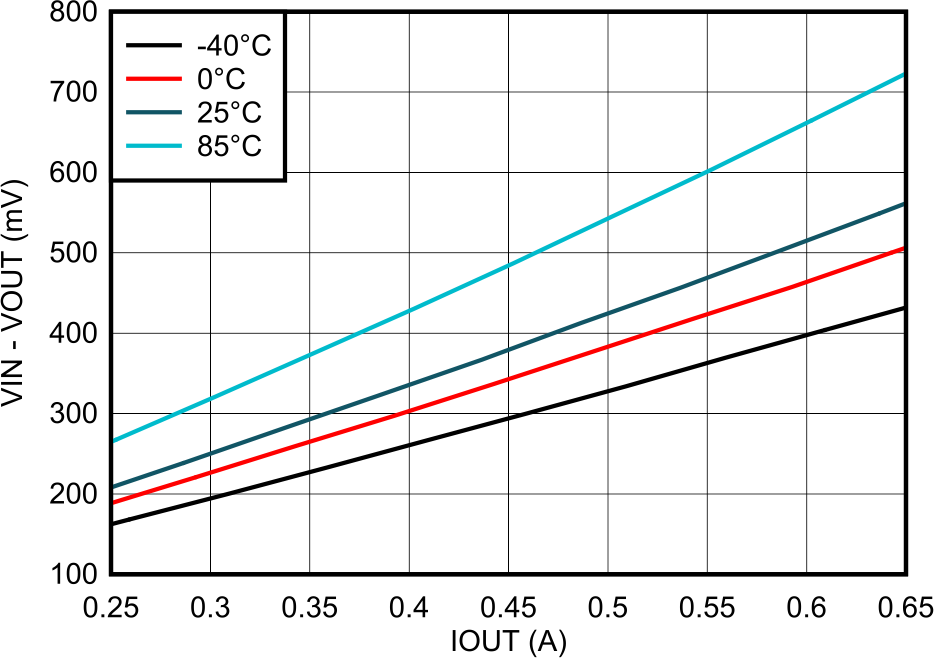

Figure 6-6 Dropout Voltage vs. Output Current
| CE Pin = LOW | ICHG = 0 A |
