8.2.1.3 Application Curves
CIN = 1 μF, COUT = 1 μF, CSC = 25 F, VIN = 5 V (unless otherwise specified)
ICHG = 400 mA |

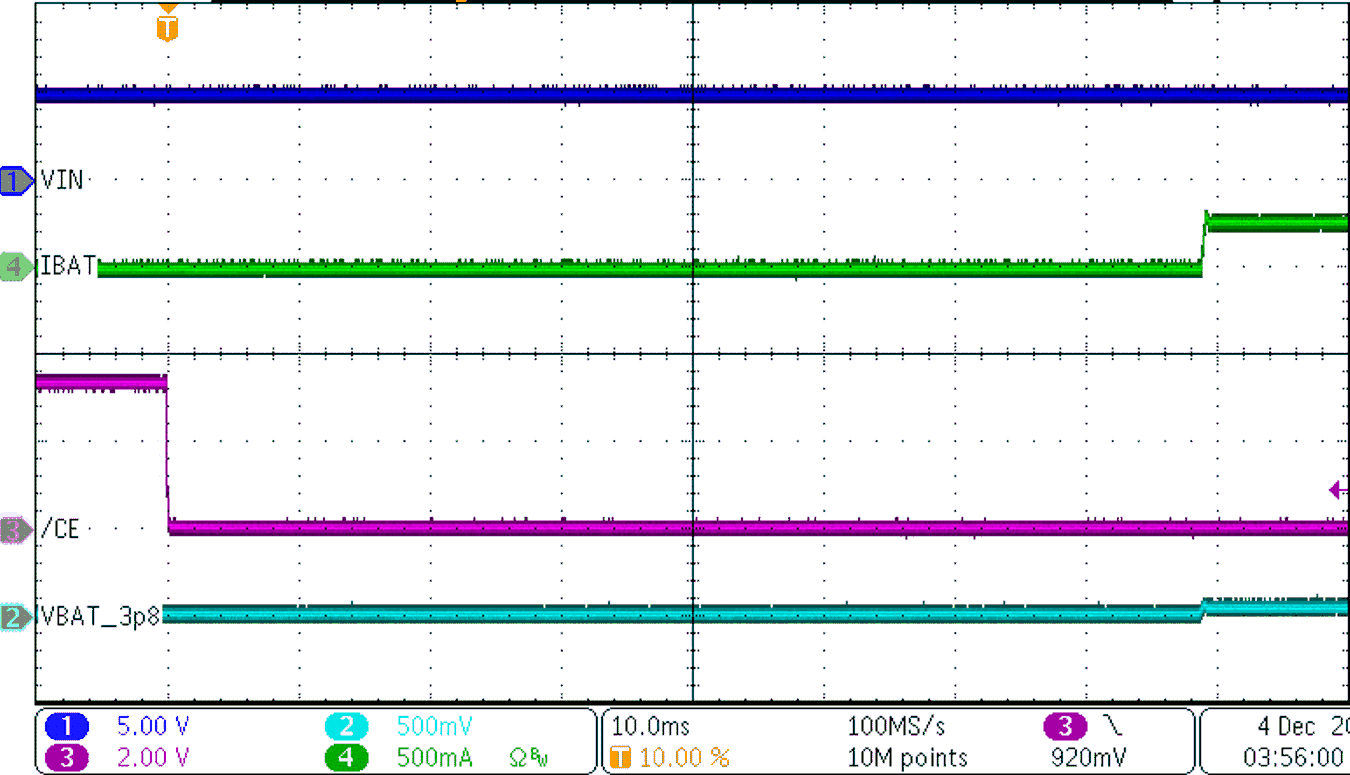

| /CE pulled high | ICHG = 250 mA |
| VIN = 5 V → 20 V | ICHG = 400 mA |
| ISET = 1.2 kΩ → 0 Ω |
| VREG = 2.5 V | ICHG = 400 mA |
| ICHG = 400 mA |

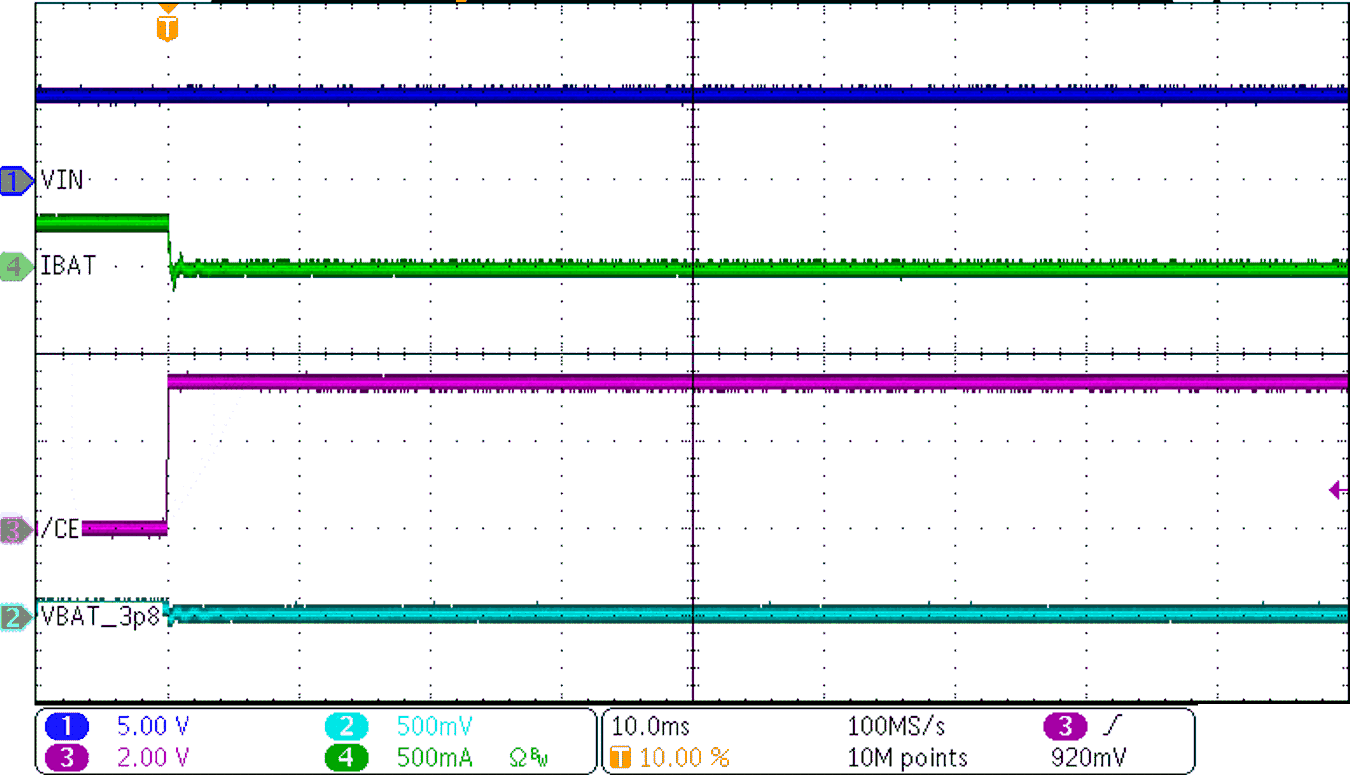

| /CE pulled low | ICHG = 400 mA |

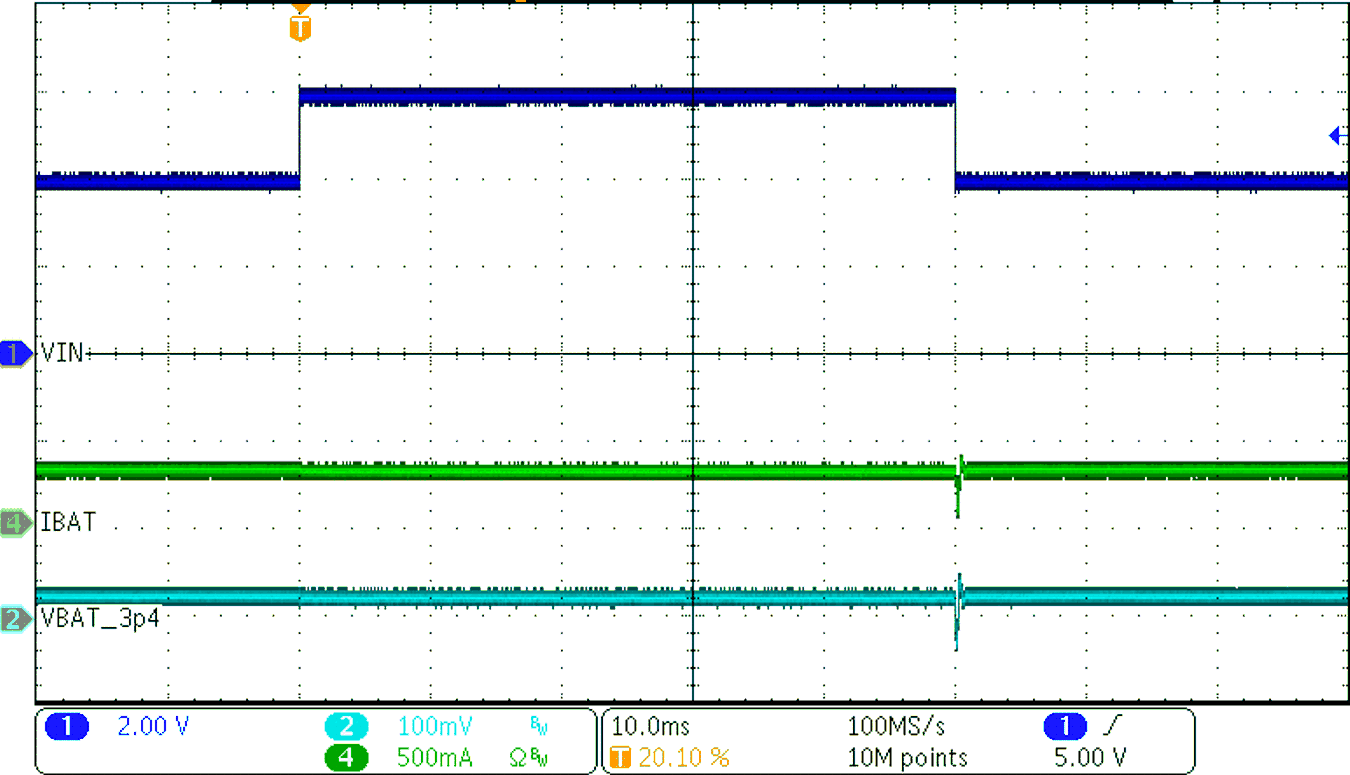

| VIN = 4 V → 6 V | VOUT = 3.5 V | ICHG = 250 mA |

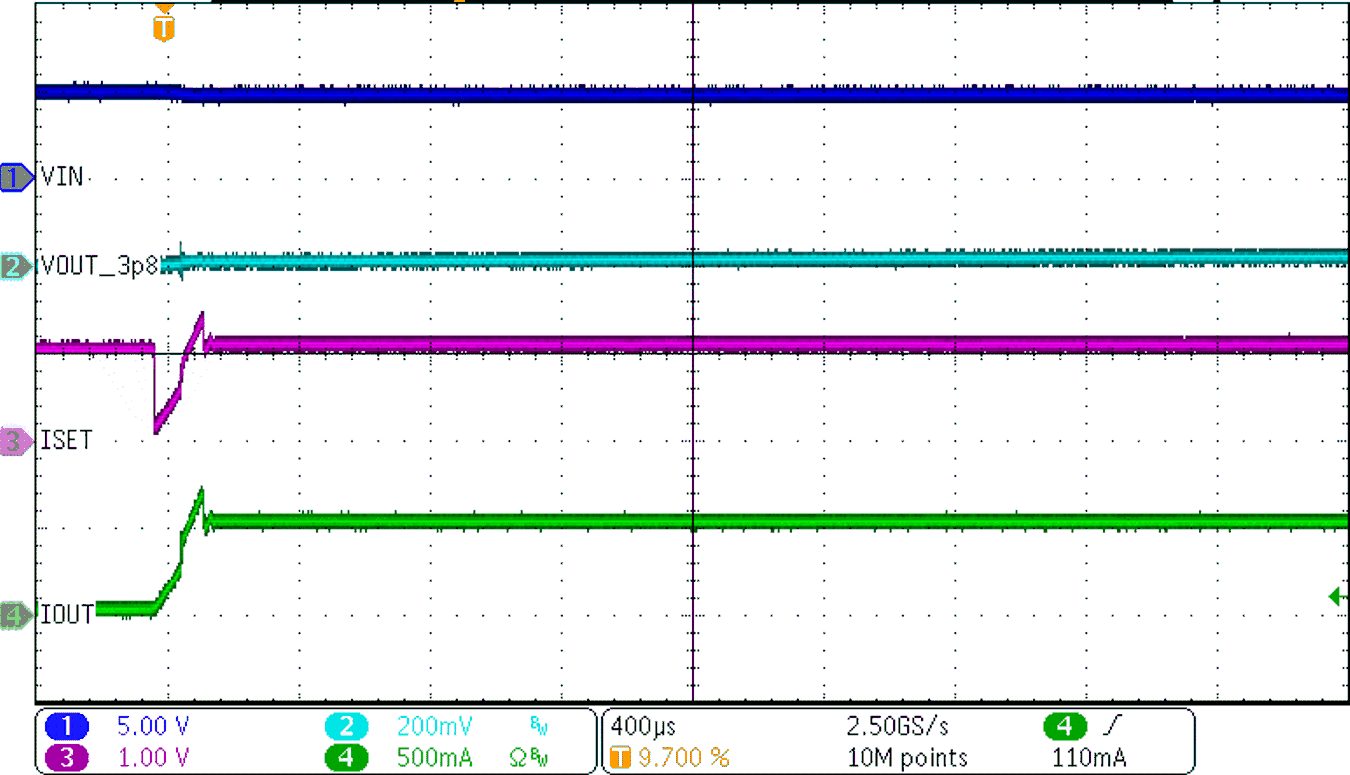

| ISET = 50 mA → 500 mA |
