Aaron Paxton

The quintessential characteristic of a low-dropout (LDO) linear voltage regulator has to be dropout. After all, that is the source of its name and acronym.

At the most basic level, dropout describes the minimum delta between V_IN and V_OUT required for proper regulation. However, it quickly becomes more nuanced when you incorporate variables. Dropout, as you’ll see, is essential to obtaining efficient operation and generating voltage rails with limited headroom.

What Is Dropout?

Dropout voltage, V_DO, refers to the minimum voltage differential that the input voltage, V_IN, must maintain above the desired output voltage, V_OUT(nom), for proper regulation. See Equation 1:

Should V_IN fall below this value, the linear regulator will enter dropout operation and no longer regulate the desired output voltage. In this case, the output voltage, V_OUT(dropout), will track V_IN minus the dropout voltage (Equation 2):

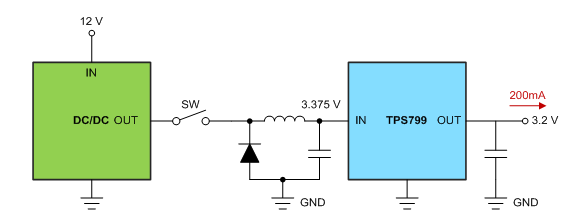

As an example, consider an LDO like the TPS799 regulating 3.3V. When sourcing 200mA, the TPS799’s maximum dropout voltage is specified at 175mV. As long as the input voltage is 3.475V or greater, regulation is not affected. However, dropping the input voltage to 3.375V will cause the LDO to enter dropout operation and cease regulation, as shown in Figure 1.

Although it’s supposed to regulate 3.3V, the TPS799 does not have the headroom required to maintain regulation. As a result, the output voltage begins to track the input voltage.

What Determines Dropout?

The architecture of the LDO primarily determines dropout. To see why, let’s look at PMOS and NMOS LDOs and compare their operation.

PMOS LDO

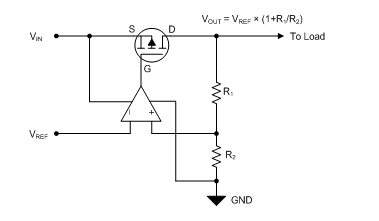

Figure 2 shows a PMOS LDO architecture. In order to regulate the desired output voltage, the feedback loop controls the drain-to-source resistance, or R_DS. As V_IN approaches V_OUT(nom), the error amplifier will drive the gate-to-source voltage, or V_GS, more negative in order to lower R_DS and maintain regulation.

At a certain point, however, the error-amplifier output will saturate at ground and cannot drive V_GS more negative. R_DS has reached its minimum value. Multiplying this R_DS value against the output current, or I_OUT, will yield the dropout voltage.

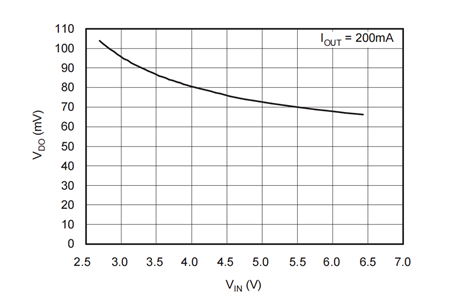

Bear in mind that the more negative the value of V_GS, the lower R_DS achieved. By increasing the input voltage, you can achieve a more negative V_GS. Therefore, PMOS architectures will have lower dropout at higher output voltages. Figure 3 illustrates this behavior.

As shown in Figure 3, the TPS799 has a lower dropout voltage as the input voltage (and output voltage, for that matter) increases. That is because a higher input voltage yields a more negative V_GS.

Nmos Ldo

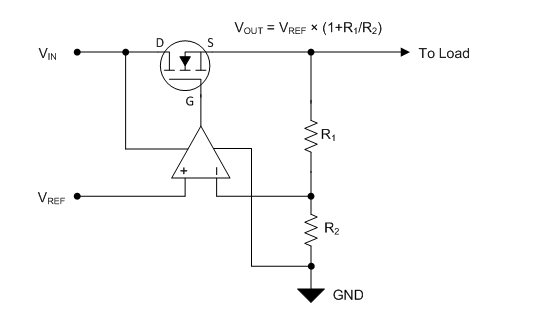

In the case of an NMOS architecture, as shown in Figure 4, the feedback loop still controls R_DS. As V_IN approaches V_OUT(nom), however, the error amplifier will increase V_GS in order to lower the R_DS and maintain regulation.

At a certain point, V_GS cannot increase any more, since the error-amplifier output will saturate at the supply voltage, or V_IN. When this condition is met, R_DS is at its minimum value. Multiplying this value against the output current, or I_OUT, derives the dropout voltage.

This presents a problem though, because as V_IN approaches V_OUT(nom), V_GS will also decrease, since the error-amplifier output saturates at V_IN. This prevents ultra-low dropout.

Biasing the LDO

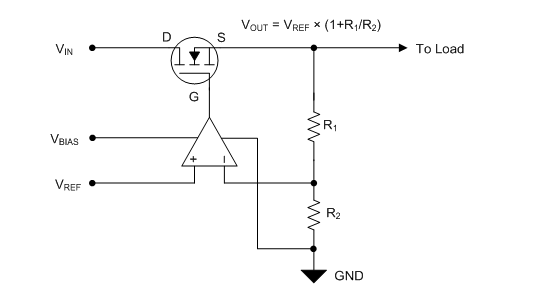

Many NMOS LDOs employ an auxiliary rail known as a bias voltage, or V_BIAS, as shown in Figure 5.

This rail serves as the positive supply rail for the error amplifier and allows its output to swing all the way up to V_BIAS, which is higher than V_IN. This type of configuration enables the LDO to maintain a high V_GS, and therefore achieve ultra-low dropout at low output voltages.

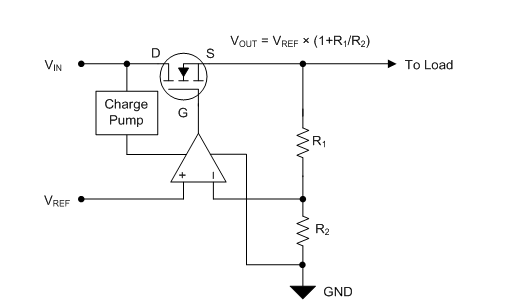

Sometimes an auxiliary rail is not available but low dropout at a low output voltage is still desired. In such a situation, an internal charge pump can be substituted in place of V_BIAS, as shown in Figure 6.

The charge pump will boost V_IN so that the error amplifier may generate a larger V_GS value despite the lack of an external V_BIAS rail.

Other Variables

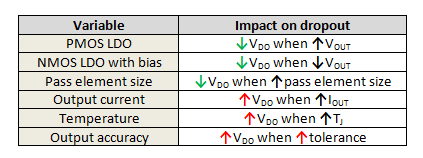

In addition to architecture, dropout is also affected by a few other variables, as outlined in Table 1.

It’s clear that dropout is not a static value. Rather than just complicating your LDO choice, though, these variables should help you choose the optimal LDO for your specific set of conditions. Learn more about LDO dropout in the application note, Understanding LDO Dropout.
