ZHCSKC0 October 2019 UCC21736-Q1
ADVANCE INFORMATION for pre-production products; subject to change without notice.
- 1 特性
- 2 應用
- 3 說明
- 4 修訂歷史記錄
- 5 Pin Configuration and Functions
-
6 Specifications
- 6.1 Absolute Maximum Ratings
- 6.2 ESD Ratings
- 6.3 Recommended Operating Conditions
- 6.4 Thermal Information
- 6.5 Power Ratings
- 6.6 Electrical Characteristics
- 6.7 Switching Characteristics
- 6.8 Insulation Specifications
- 6.9 Safety-Related Certifications
- 6.10 Safety Limiting Values
- 6.11 Insulation Characteristics Curves
- 6.12 Typical Characteristics
- 7 Parameter Measurement Information
-
8 Detailed Description
- 8.1 Overview
- 8.2 Functional Block Diagram
- 8.3
Feature Description
- 8.3.1 Power Supply
- 8.3.2 Driver Stage
- 8.3.3 VCC, VDD and VEE Undervoltage Lockout (UVLO)
- 8.3.4 Active Pulldown
- 8.3.5 Short Circuit Clamping
- 8.3.6 External Active Miller Clamp
- 8.3.7 Overcurrent and Short Circuit Protection
- 8.3.8 Fault (FLT, Reset and Enable (RST/EN)
- 8.3.9 ASC Protection and APWM Monitor
- 8.4 Device Functional Modes
-
9 Applications and Implementation
- 9.1 Application Information
- 9.2
Typical Application
- 9.2.1 Design Requirements
- 9.2.2
Detailed Design Procedure
- 9.2.2.1 Input filters for IN+, IN- and RST/EN
- 9.2.2.2 PWM Interlock of IN+ and IN-
- 9.2.2.3 FLT, RDY and RST/EN Pin Circuitry
- 9.2.2.4 RST/EN Pin Control
- 9.2.2.5 Turn on and turn off gate resistors
- 9.2.2.6 External Active Miller Clamp
- 9.2.2.7 Overcurrent and Short Circuit Protection
- 9.2.2.8 Higher Output Current Using an External Current Buffer
- 10Power Supply Recommendations
- 11Layout
- 12器件和文檔支持
- 13機械、封裝和可訂購信息
3 說明
UCC21736-Q1 是一款電隔離單通道柵極驅動器，用于具有高達 2121V 直流工作電壓的 SiC MOSFET 和 IGBT，具有高級保護功能 功能、出色的動態性能和穩健性。UCC21736-Q1 具有高達 ±10A 的峰值拉電流和灌電流。
輸入側通過 SiO2 電容隔離技術與輸出側相隔離，支持高達 1.5kVRMS 的工作電壓、12.8kVPK 的浪涌抗擾度，隔離層壽命超過 40 年，并提供較低的器件間偏移、大于 150V/ns 的共模噪聲抗擾度 (CMTI)。
UCC21736-Q1 具有高級保護功能 功能，如快速過流和短路檢測、分流電流檢測支持、故障報告、有源米勒鉗位、輸入和輸出側電源 UVLO（用于優化 SiC 和 IGBT 開關行為）和穩健性。可以利用 ASC 功能在系統故障事件期間強制打開電源開關，從而進一步提高驅動器的多功能性并消減系統設計工作量、尺寸和成本。
器件信息(1)
| 器件型號 | 封裝 | 封裝尺寸（標稱值） |
|---|---|---|
| UCC21736-Q1 | DW SOIC-16 | 10.3mm × 7.5mm |
- 如需了解所有可用封裝，請參閱數據表末尾的可訂購產品附錄。

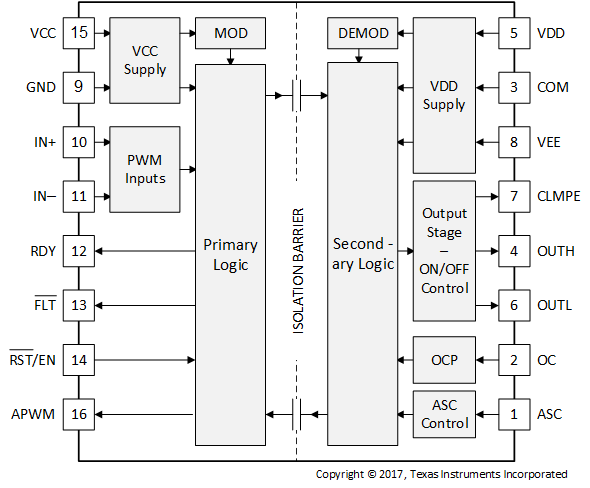

器件引腳配置
