6.5.1 OC Protection with Soft Turn-OFF

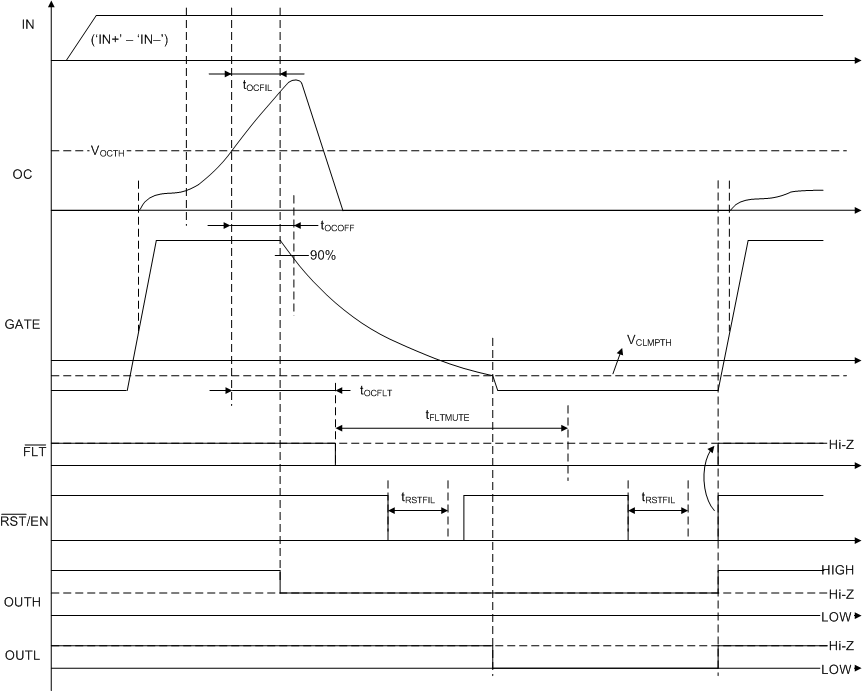

OC Protection is used to sense the current of SiC-MOSFETs and IGBTs under over current or shoot-through condition. Figure 7-10 shows the timing diagram of OC operation with soft turn-off.
Figure 6-10 OC
Protection with Soft Turn-OFF
