8.4.4 1-Channel 1:4 Mux
The TS3DS10224 can be configured as differential 1-channel 1:4 mux.
The truth table below shows that the inputs INA can be routed to 4 different places. This is accomplished by setting the Select A Input (SAI) and Select B Input (SBI) HIGH and selecting an output by toggling the Select A Output (SAO) and Select B Output (SBO) pins.
Unused pins INB+ and INB– must be left floating in this configuration.
Table 4. 1-Channel 1:4 Mux Function Table
| LOGIC CONTROL SETTINGS | SIGNAL ROUTING | ||||
|---|---|---|---|---|---|
| SAI | SBI | SAO | SBO | INA | INB |
| 1 | 1 | 0 | — | OUTA0 | — |
| 1 | 1 | 1 | — | OUTA1 | — |
| 0 | 0 | — | 0 | OUTB0 | — |
| 0 | 0 | — | 1 | OUTB1 | — |

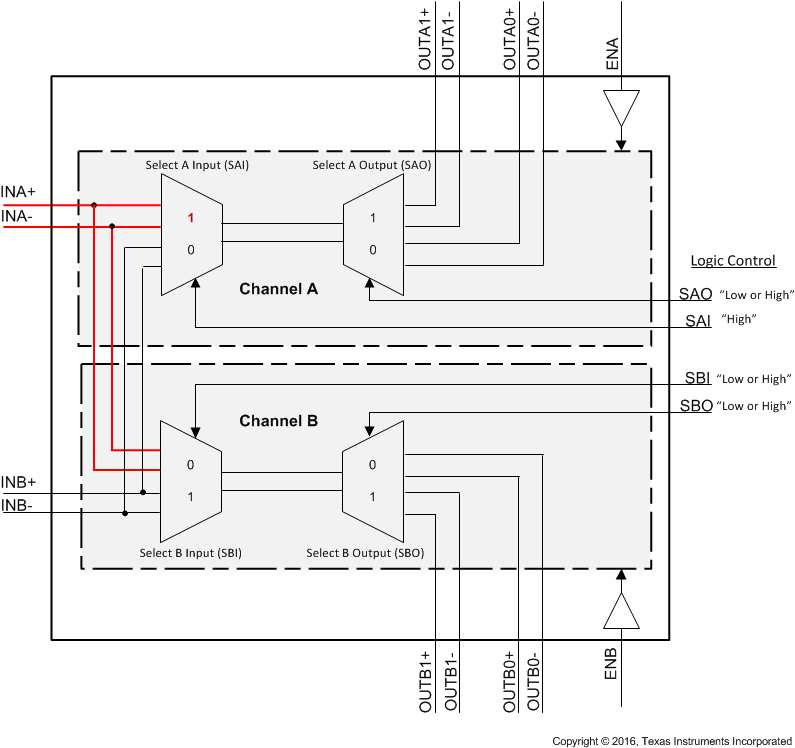

Figure 16. 1-Channel 1:4 Mux Functional Block Diagram
