8.4.2 Differential Crosspoint Switch
The TS3DS10224 can be configured as a differential crosspoint switch. Crosspoint switches are particularly helpful when traces have to cross in simplifying layouts, and when switching the top and bottom signals of the reversible connector in USB Type-C applications.
Table 2 shows that the inputs INA and INB can be routed to OUTA or OUTB. This is accomplished by setting the Select A Output (SAO) and Select B Output (SBO) LOW and selecting which input goes to the output by toggling the Select A Input (SAI) and Select B Input (SBI) pins.
Table 2. Differential Crosspoint Switch Function Table
| LOGIC CONTROL SETTING | SIGNAL ROUTING | ||||
|---|---|---|---|---|---|
| SAI | SBI | SAO | SBO | INA | INB |
| 0 | 0 | 0 | 0 | OUTB0 | OUTA0 |
| 1 | 1 | 0 | 0 | OUTA0 | OUTB0 |

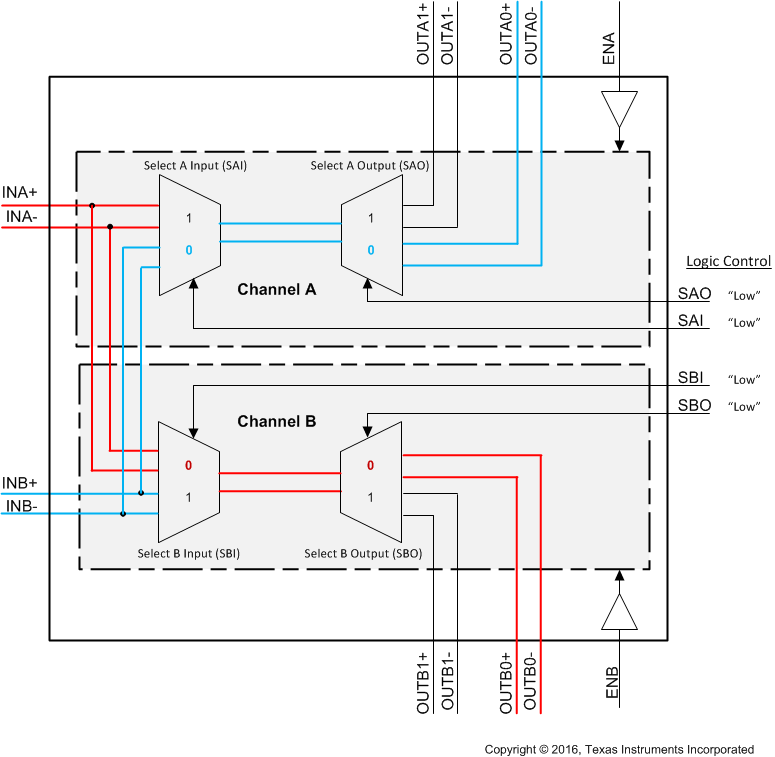

Figure 14. Differential Crosspoint Switch Block Diagram
