8.4.3 2-Channel 1:2 Mux
The TS3DS10224 can be configured to be differential 2-channel 1:2 mux.
Table 3 shows that the inputs INA and INB can be routed to 2 different places. This is accomplished by setting the Select A Input (SAI) and Select B Input (SBI) HIGH and selecting an output by toggling the Select A Output (SAO) and Select B Output (SBO) pins.
Table 3. 2-Channel 1:2 Mux Function Table
| LOGIC CONTROL SETTING | SIGNAL ROUTING | ||||
|---|---|---|---|---|---|
| SAI | SBI | SAO | SBO | INA | INB |
| 1 | 1 | 0 | 0 | OUTA0 | OUTB0 |
| 1 | 1 | 0 | 1 | OUTA0 | OUTB1 |
| 1 | 1 | 1 | 0 | OUTA1 | OUTB0 |
| 1 | 1 | 1 | 1 | OUTA1 | OUTB1 |

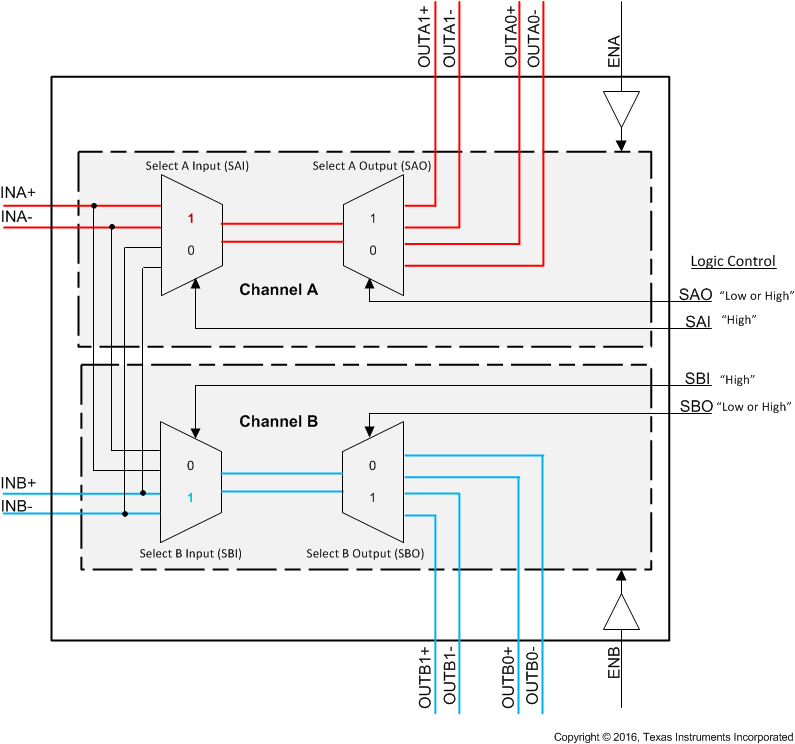

Figure 15. 2-Channel 1:2 Block Diagram
