7.6 Typical Characteristics
VPIN = VAVIN = 12 V, TA = 25°C, fsw = 650 kHz (unless otherwise specified).

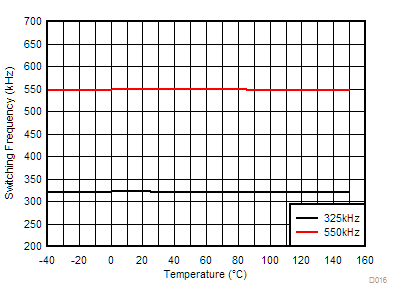

| VIN = 5 V | VCC = Internal | |

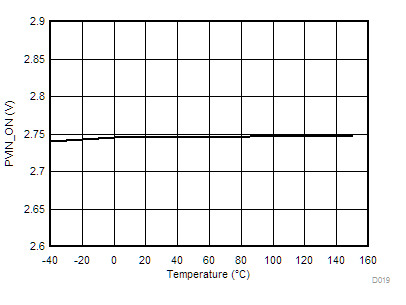

| VIN = 5 V | VCC = Internal | |
| VOUT_COMMAND = 1 V |

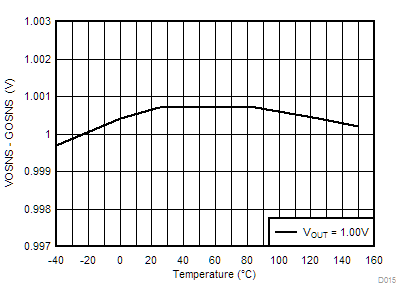

vs Junction Temperature

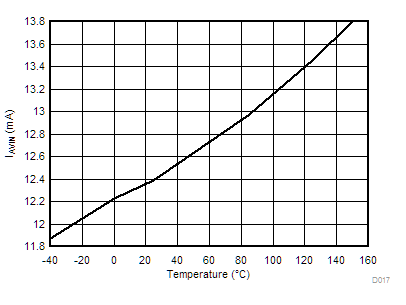

| IBP1V5 = 2 mA | VPVIN = VAVIN= 12 V |

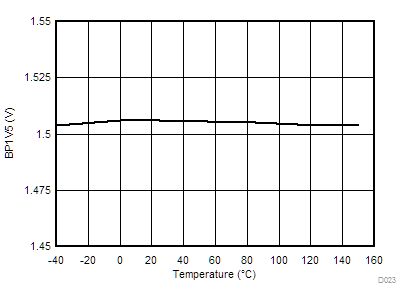

| VIN = 12 V | VCC = Internal | |
| VIN = 12 V | VCC = Internal | |
vs Junction Temperature
| IVDD5 = 10 mA | VPVIN = VAVIN= 12 V |

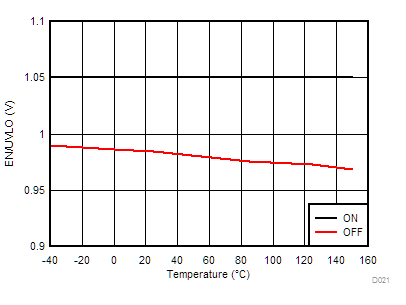

Figure 7-12 EN/UVLO Thresholds vs Junction Temperature
