9.4.2.2 EMI
The TPSM8S6C24 is compliant with EN55011 Class-B 3 meters radiated emissions. Figure 9-25 and Figure 9-26 show radiated emissions plots at 12 VIN 1.2 VOUT 20-A at 650kHz with ferrite bead in the input cables.
The EMI plots were measured using the standard TPSM8S6C24SEVM-1PH.

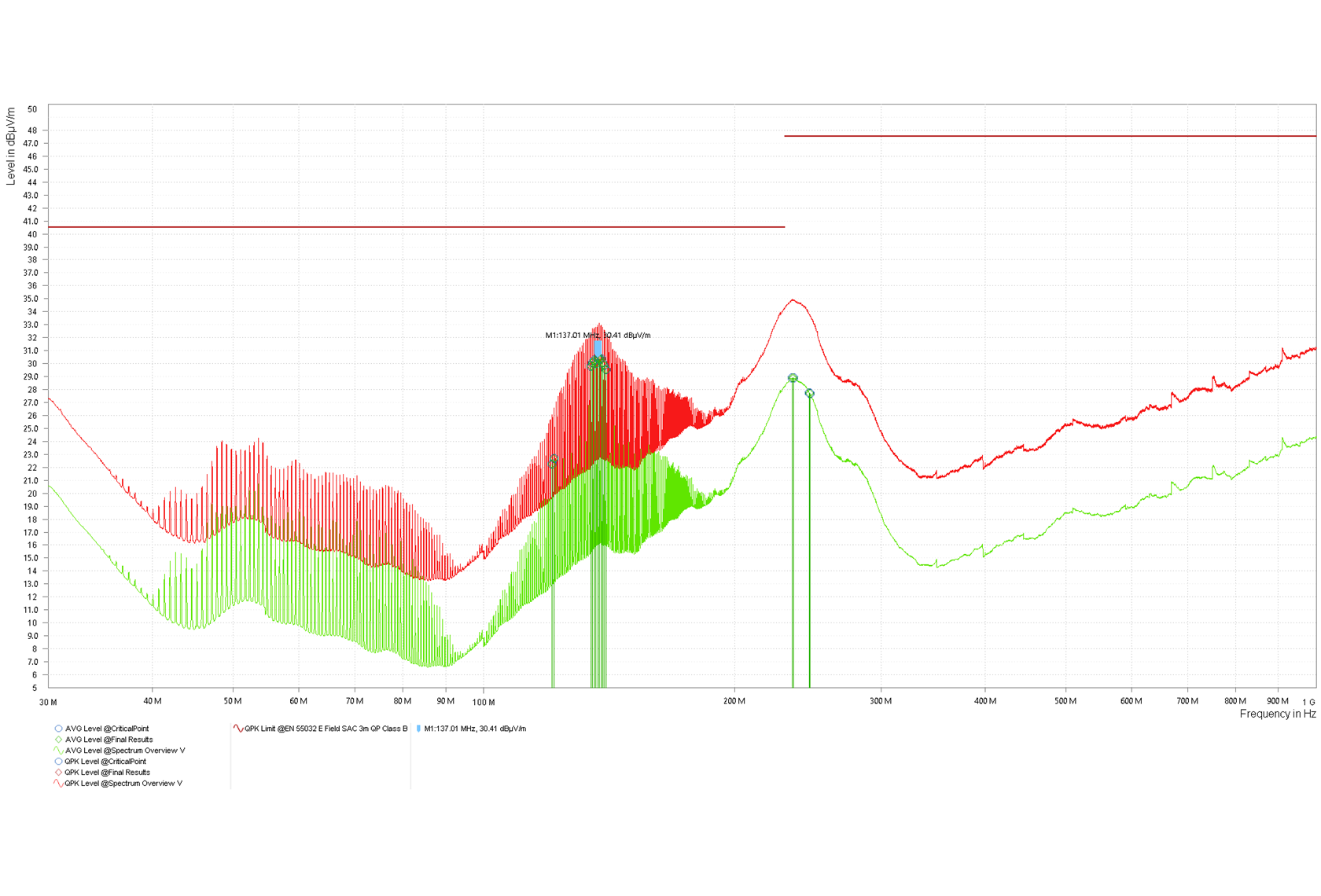

Figure 9-25 Horizontal
Radiated Emissions 12-Vin, 1.2-Vout, 20-A, 650kHz

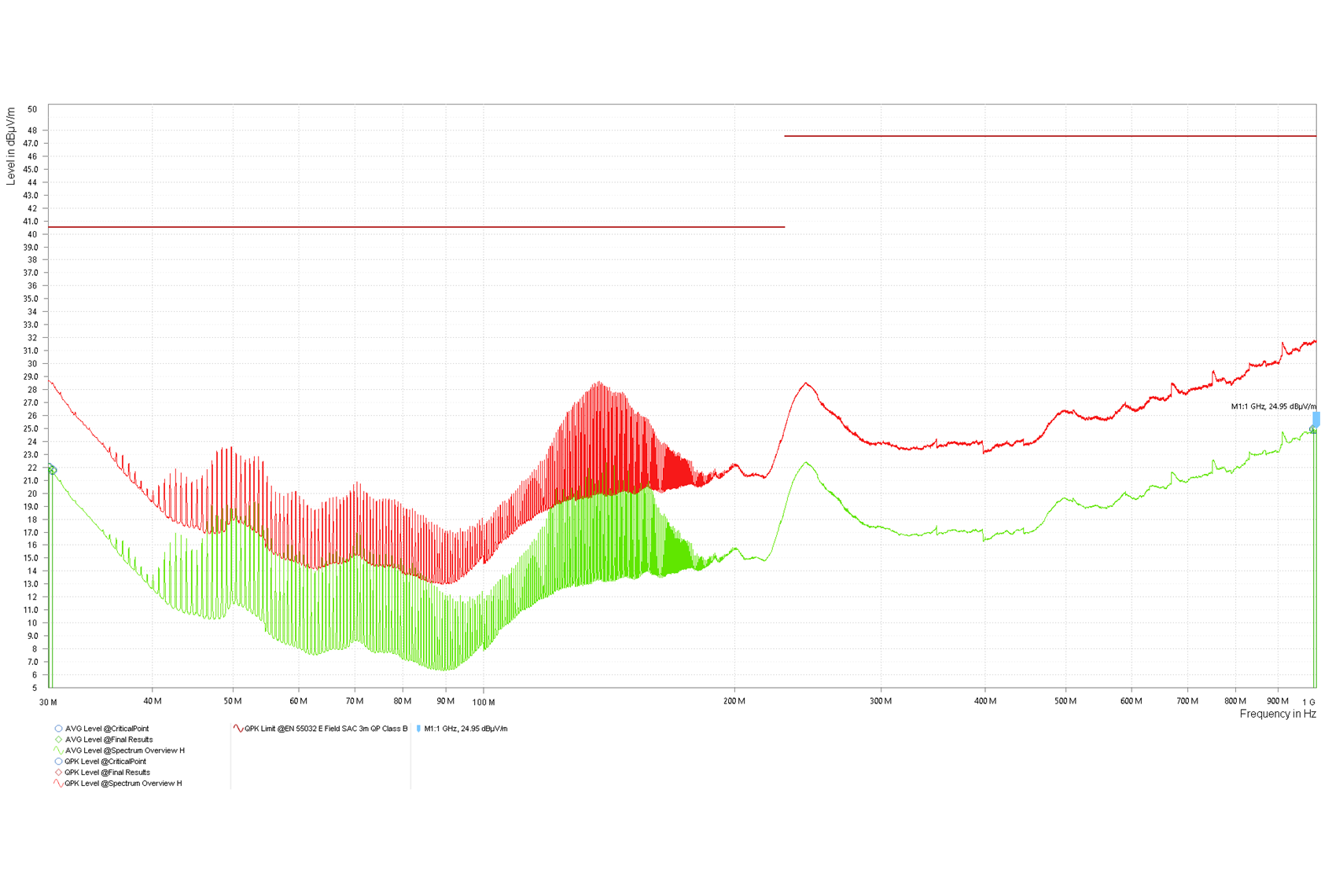

Figure 9-26 Vertical Radiated Emission 12-Vin,
1.2-Vout, 20-A, 650kHz
