7.5.3.2 Write Response Frame Format
The Write Response frame has the following format:
- The SPI Error bit (SPE)
- The COMMAND bit (CMD)
- Six bits of ADDRESS (A5..A0)
- Eight bits of DATA (D7..D0)
This is shown in Figure 7-25. This frame is sent out following a write command if the previously received frame was a write command and no SPI Error occurred during that frame.
The data and address bits in the write response are the data and address that were sent in the previous write command.

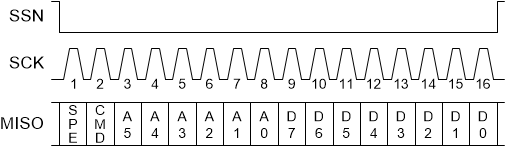

Figure 7-25 Write Response Frame Format
