7.5.3.1 Read Response Frame Format
The Read Response has the following format:
- The SPI Error bit (SPE)
- Four reserved bits (always ‘1100’)
- The RT Open Fault bit (RTO)
- The Power-Cycled bit (PC)
- The Thermal Warning bit (TW)
- Eight bits of DATA (D7..D0)

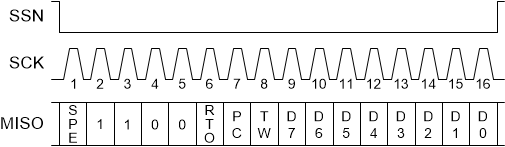

This is shown in Figure 7-24. This frame is sent out by the TPS92682-Q1 following a read command.
Figure 7-24 Read Response Frame Format
