8.4.6 Application Curves
The following waveform curves are for the Boost and the Buck-Boost LED drivers. Channel-1 of the TPS92682-Q1 is configured as a Boost LED driver and the Channel-2 as a Buck-Boost.

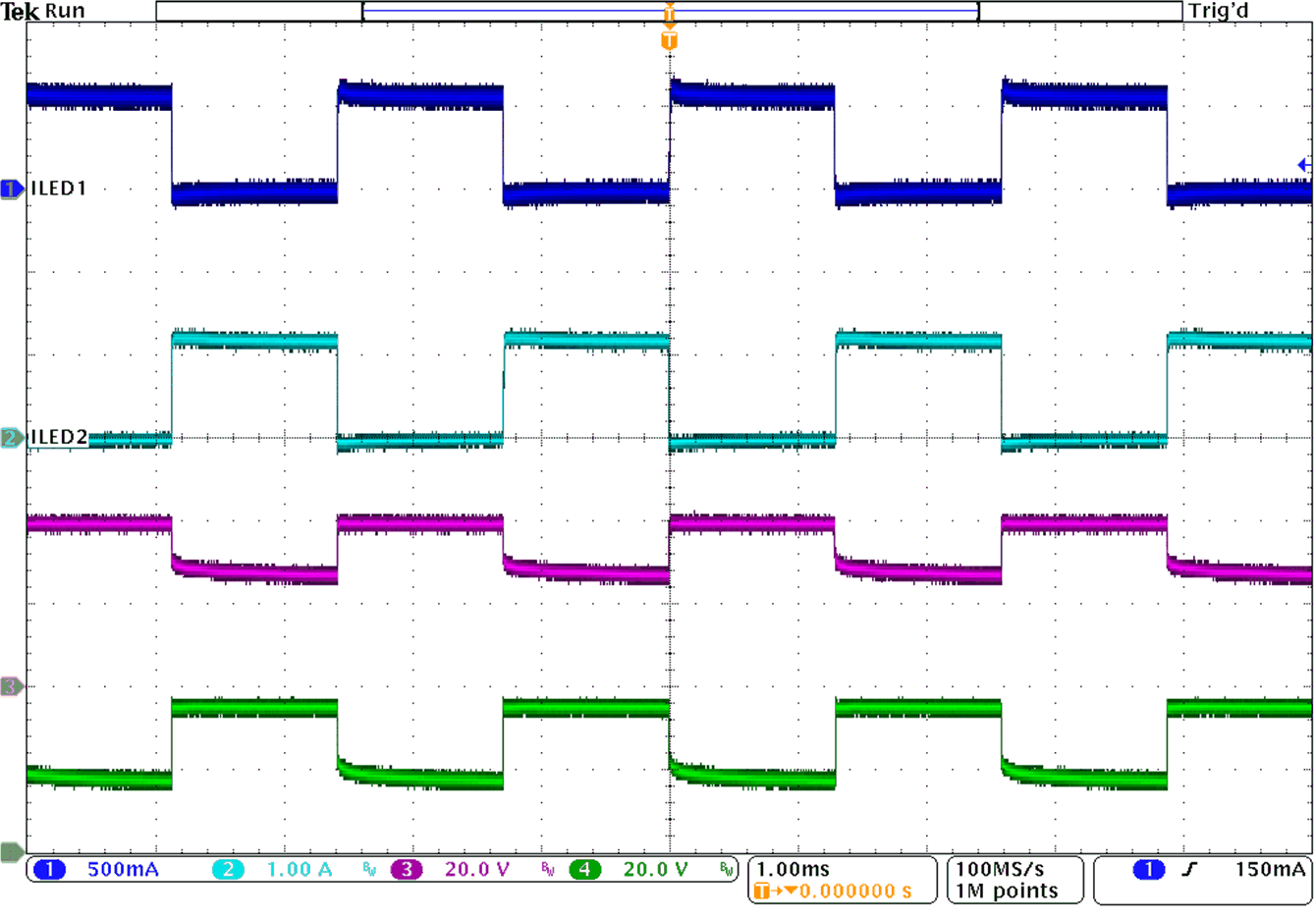

| CH1: Boost ILED current | CH2: Buck-Boost ILED current | CH3: Boost LED+ voltage (12×LED) | CH4: Buck-Boost LED+ voltage (3×LED) |

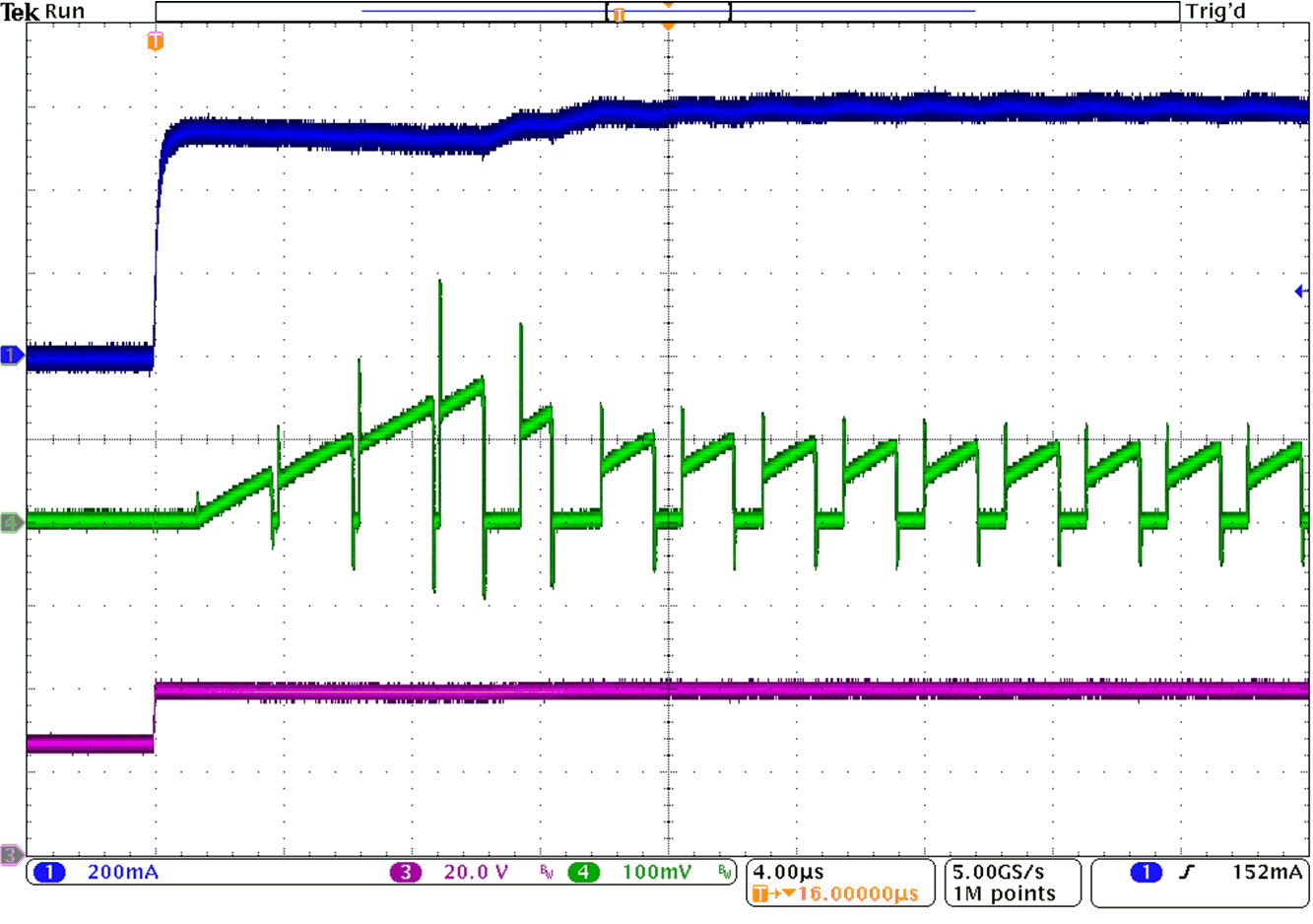

| CH1: Boost ILED current | CH2: Boost switch current sense voltage | CH3: Boost LED+ voltage (12xLED) |

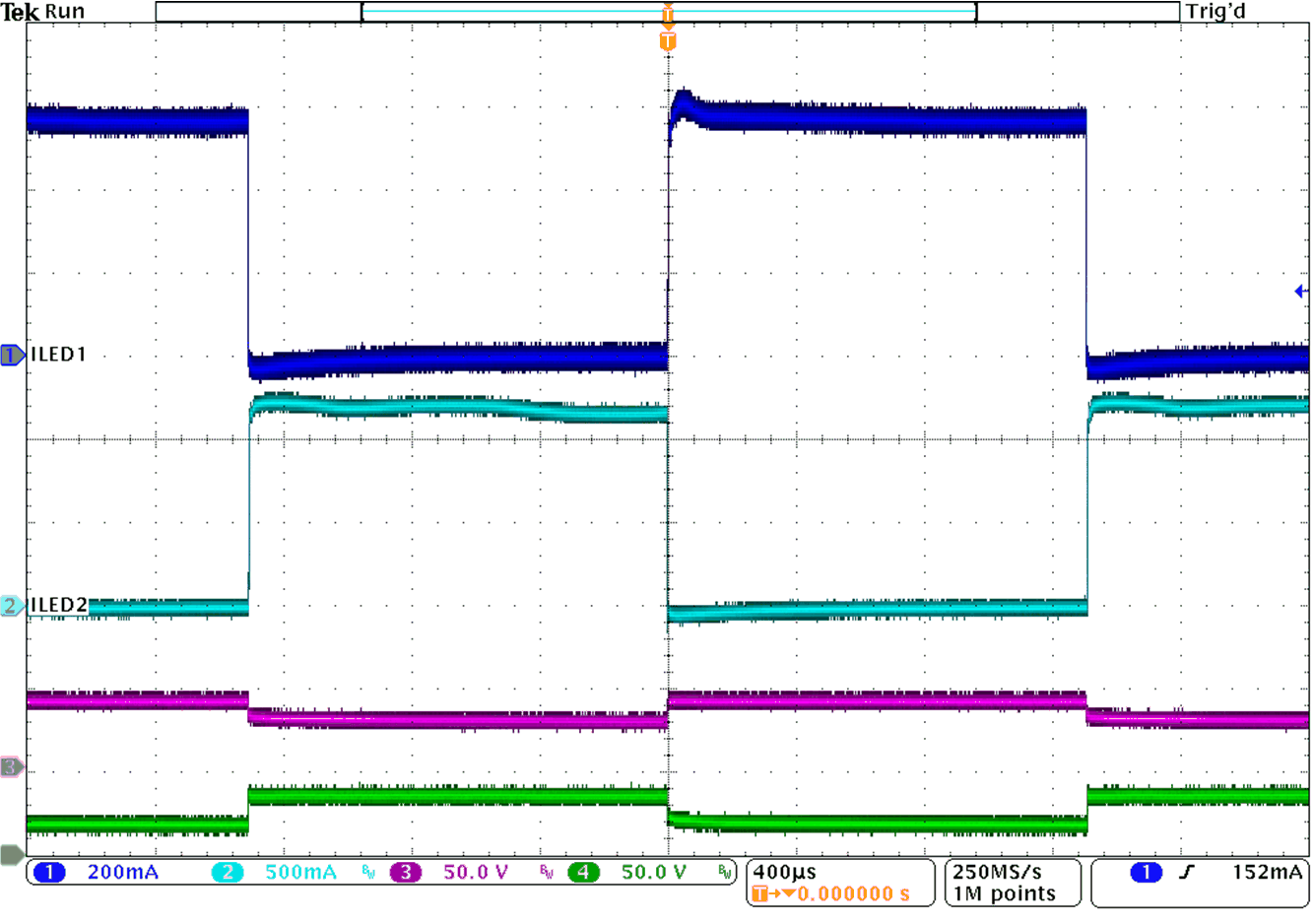

| CH1: Boost ILED current | CH2: Buck-Boost ILED current | CH3: Boost LED+ voltage (12×LED) | CH4: Buck-Boost LED+ voltage (6×LED) |

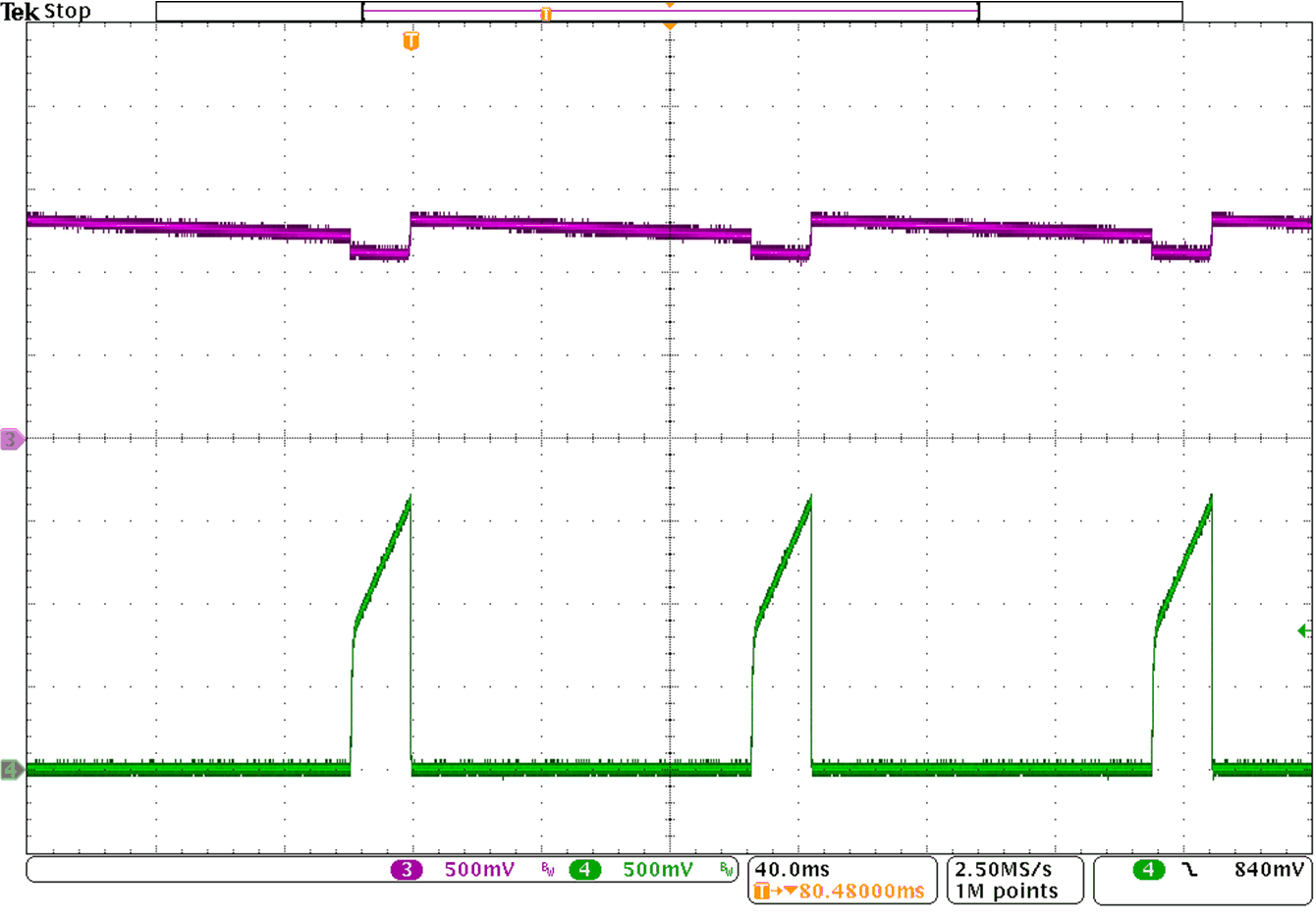

| CH3: FB2/OV2 PIN voltage | CH4: COMP2 PIN voltage |

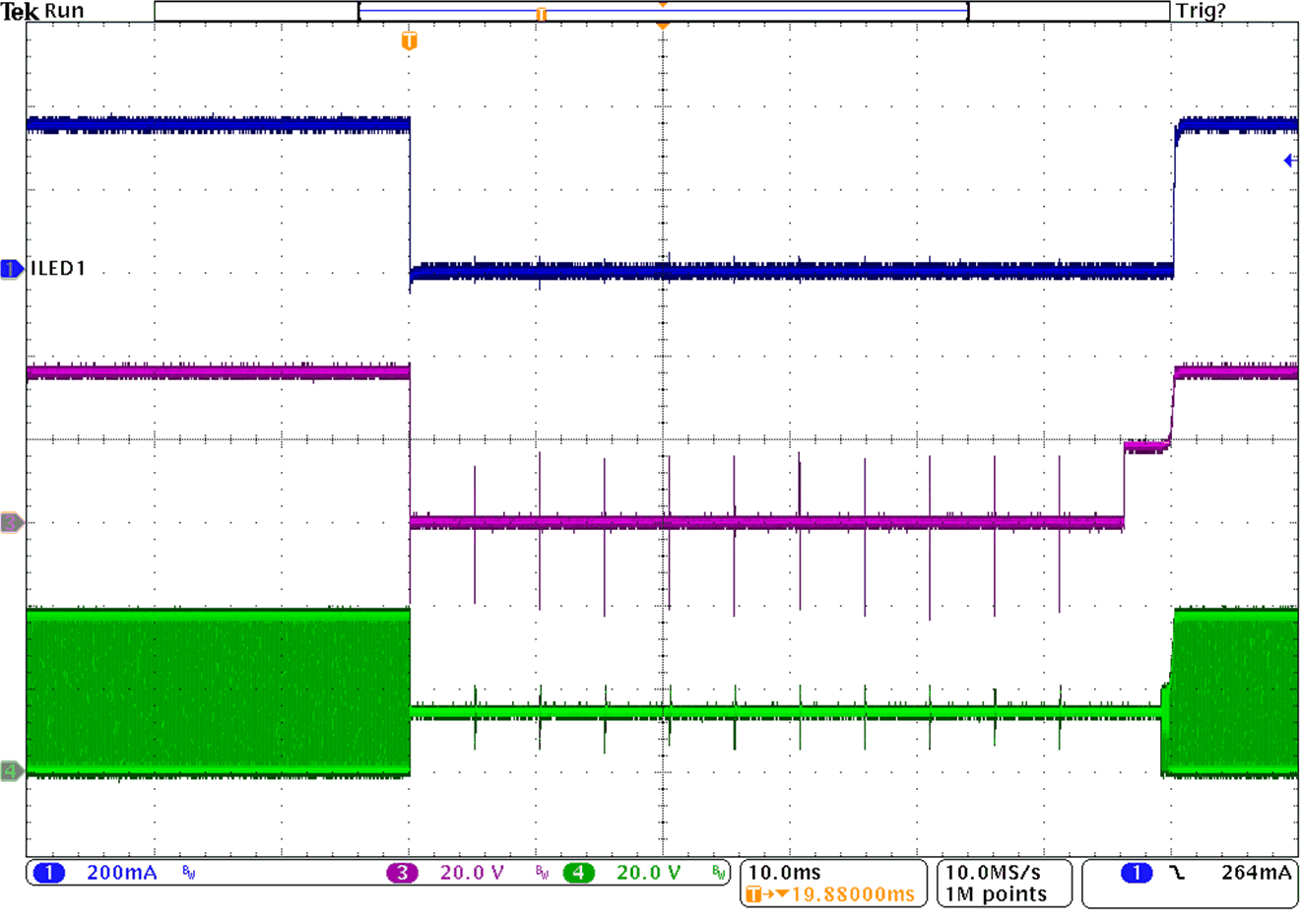

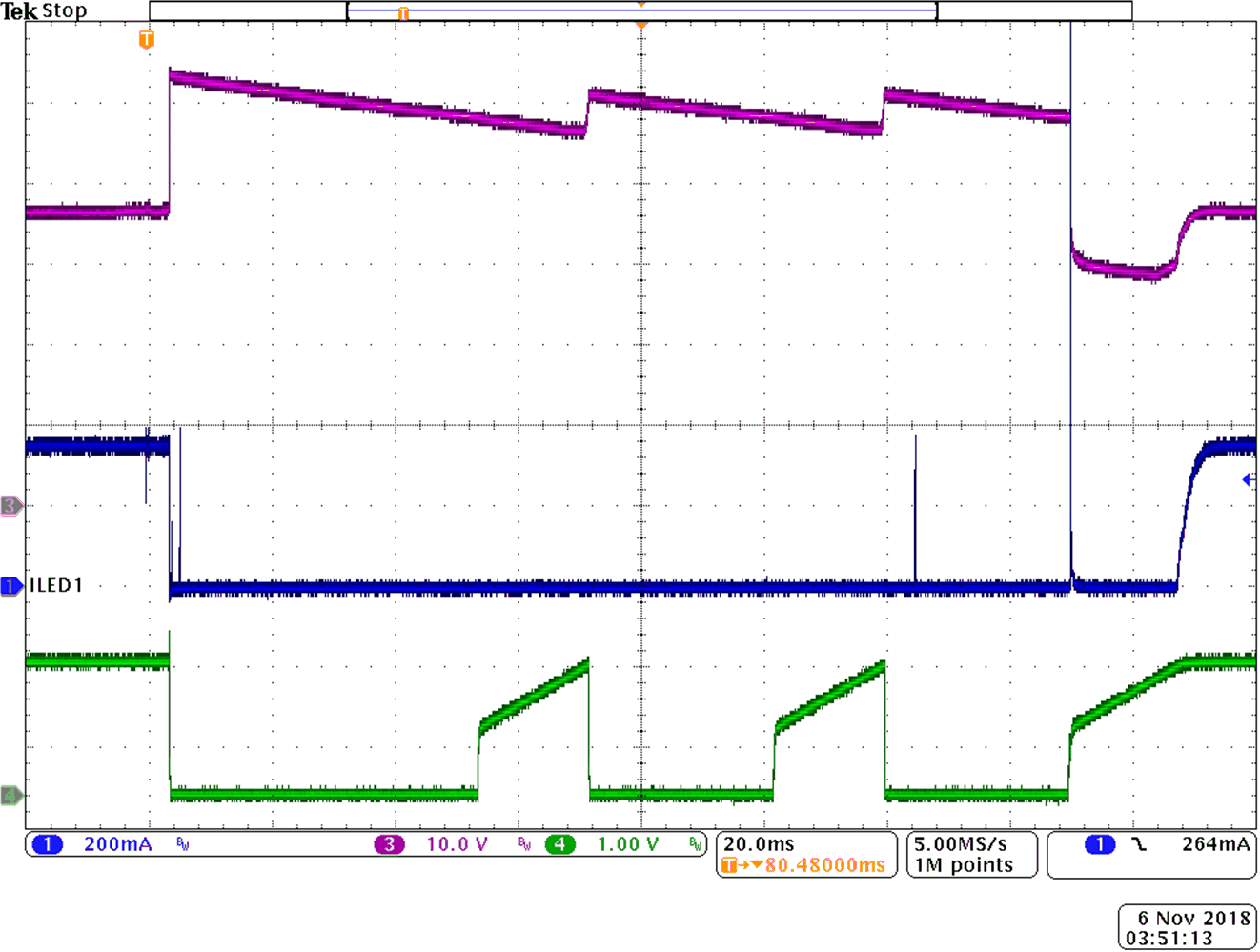

| CH1: Boost ILED current | CH3: Boost LED+ voltage | CH4: Boost VSW voltage |
| 12×LED, ILED = 560 mA |

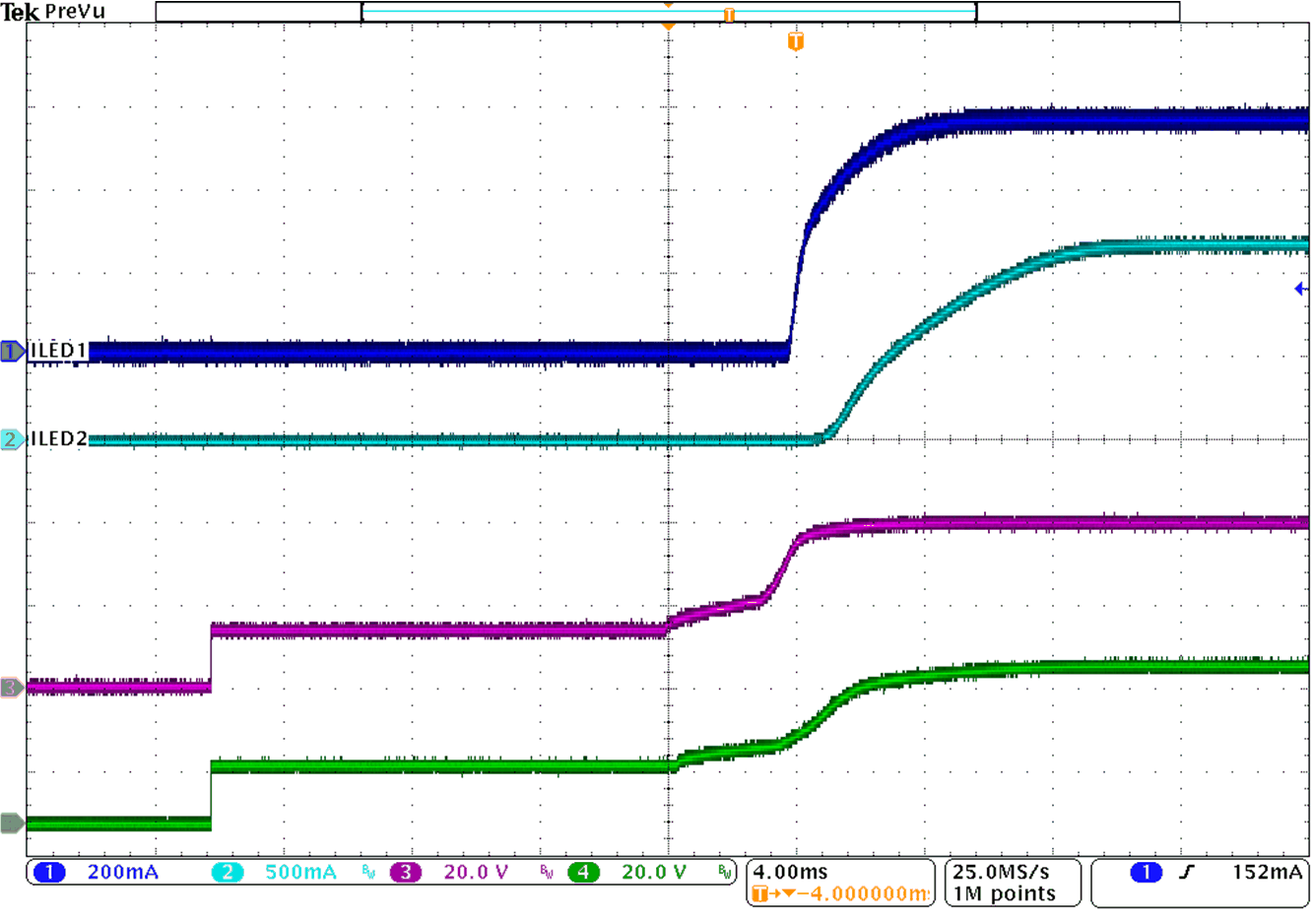

| CH1: Boost ILED current | CH2: Buck-Boost ILED current | CH3: Boost LED+ voltage (12×LED) | CH4: Buck-Boost LED+ voltage (3×LED) |

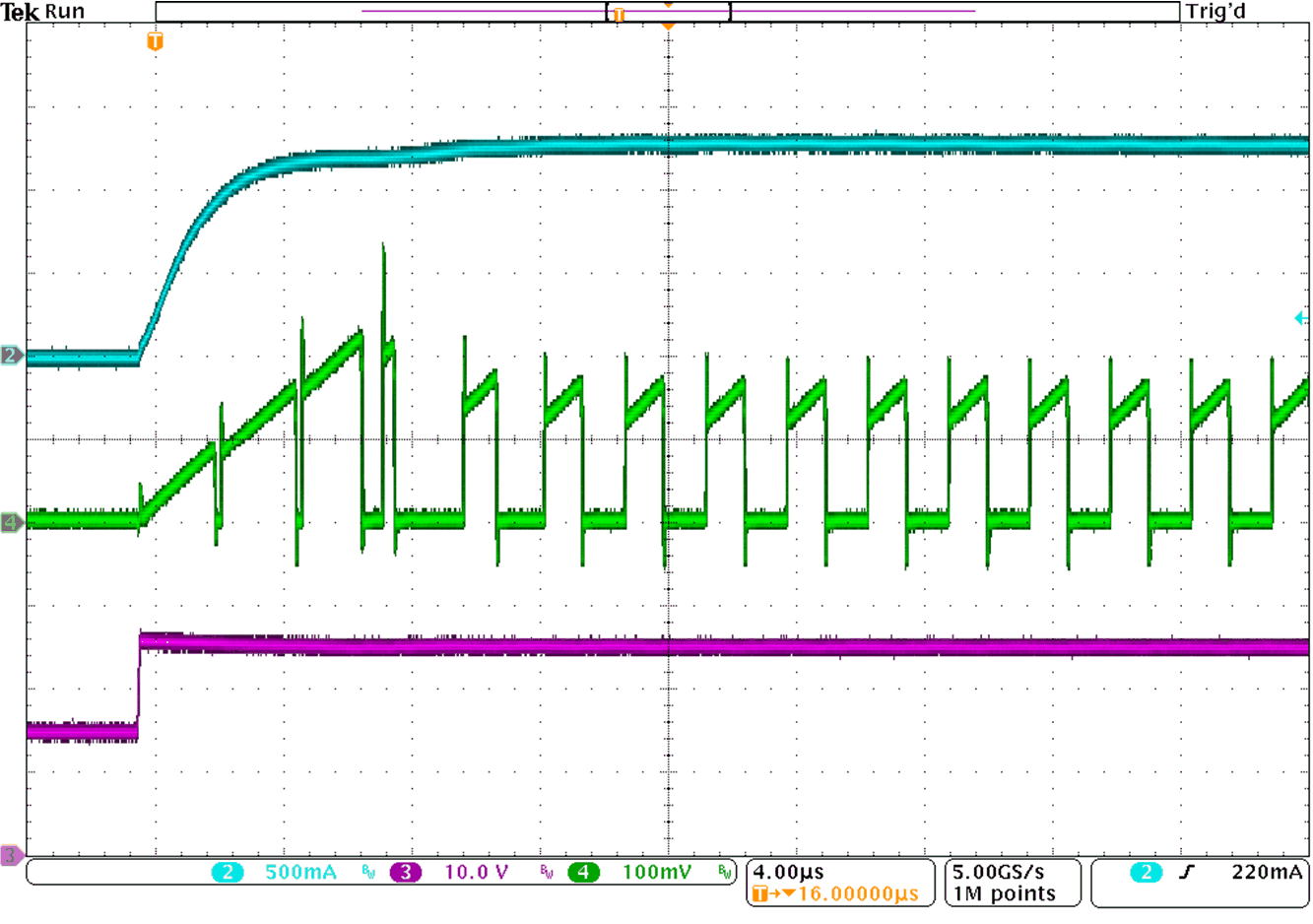

| CH2: Buck-Boost ILED current | CH4: Buck-Boost switch current sense voltage | CH3: Buck-Boost LED+ voltage (3×LED) |
| CH1: Boost ILED current | CH3: Boost LED+ voltage (12×LED) | CH4: COMP1-PIN voltage |

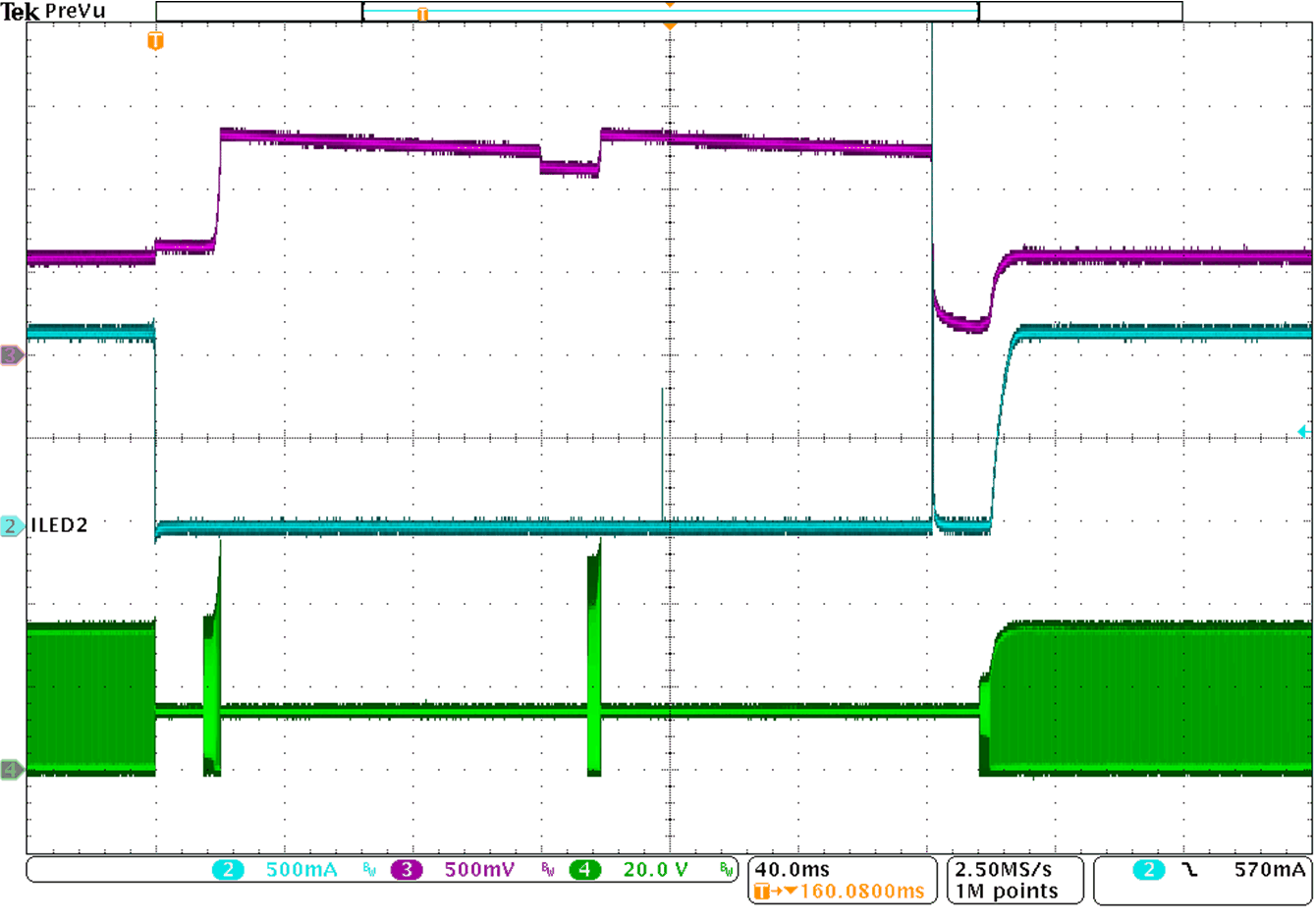

| CH2: Buck-Boost ILED current | CH3: FB2/OV2 PIN voltage | CH4: Buck-Boost VSW voltage |

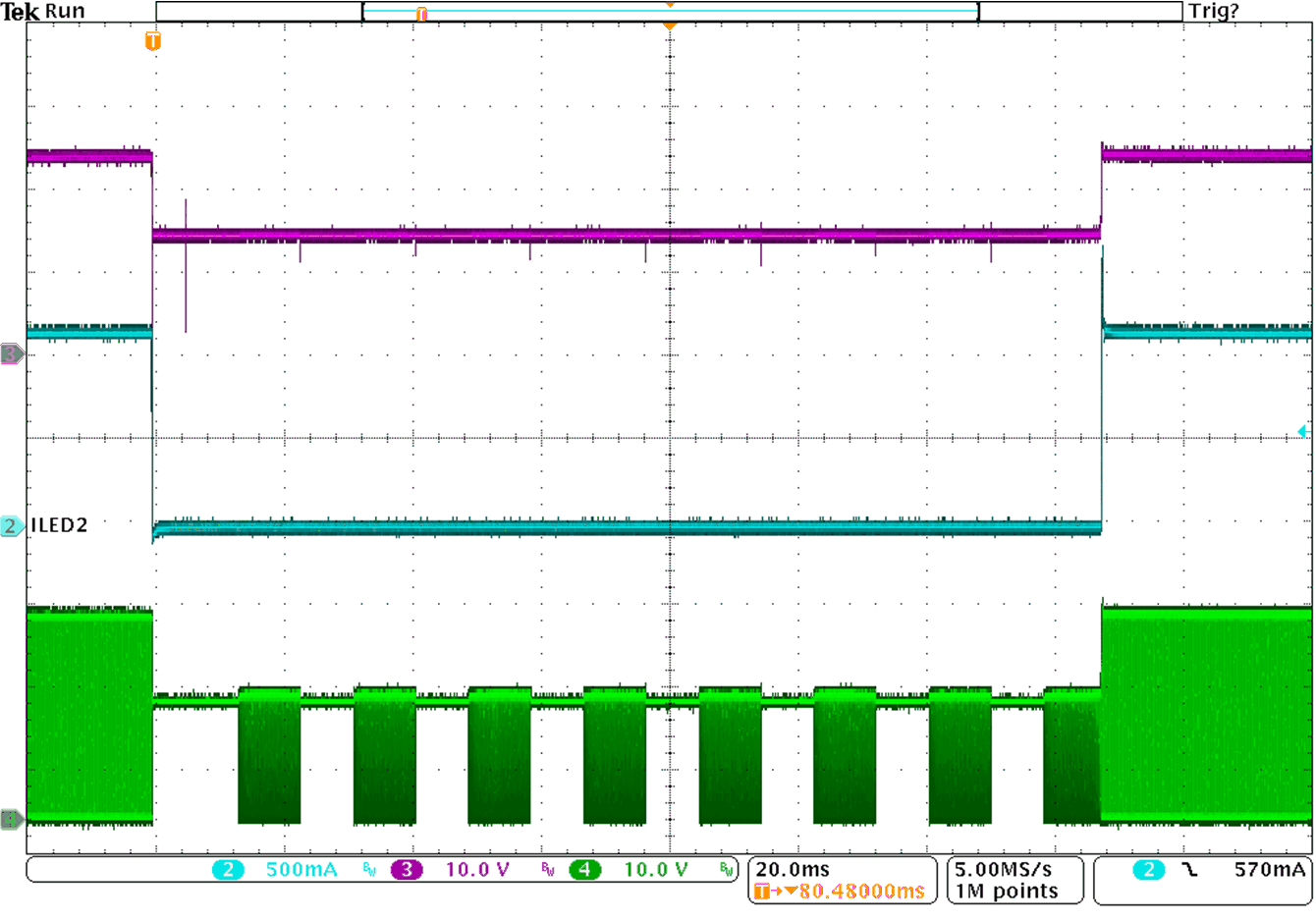

| CH2: Buck-Boost ILED current | CH3: Buck-Boost LED+ voltage | CH4: Buck-Boost VSW voltage |
| 6×LED, ILED = 700 mA |
