3 說明
TPS92682-Q1 是一種帶有 SPI 通信接口的雙通道峰值電流模式控制器。通過編程，該器件可在恒壓 (CV) 或恒流 (CC) 模式下運行。
在 CV 模式下，TPS92682-Q1 可通過編程用作兩個獨立或雙相升壓穩壓器。可使用外部電阻分壓器和 SPI 可編程 8 位 DAC 對輸出電壓進行編程。
在 CC 模式下，器件設計用于支持雙通道升壓或降壓 LED 驅動器拓撲。可使用模擬調光或 PWM 調光技術來單獨調制 LED 電流。使用可編程的 8 位 DAC 可獲得高于 28:1 的模擬調光范圍。可以借助所需占空比直接調制 PWM 輸入引腳或使用 SPI 可編程 10 位 PWM 計數器來實現 LED 電流的 PWM 調光。可選 PDRV 柵極驅動器輸出可用于驅動外部 P 通道系列 MOSFET。
TPS92682-Q1 整合了高級 SPI 可編程診斷和故障保護機制，包括逐周期電流限制、輸出過壓和欠壓保護、ILED 過流保護以及熱警告。該器件的每個通道都包含一個漏極開路故障指示器輸出。
TPS92682-Q1 包含一個 LH 引腳，在拉高時，會進入跛行回家 (LH) 狀態。在 LH 模式下，該器件使用一組獨立的 SPI 可編程寄存器。
器件信息
| 器件型號 | 封裝(1) | 封裝尺寸（標稱值） |
|---|---|---|
| TPS92682-Q1 | VQFN (32) | 5.0mm x 5.0mm |
| TPS92682-Q1 | HTSSOP (32) | 11.0mm x 6.1mm |
(1) 要了解所有可用封裝，請見數據表末尾的可訂購產品附錄。

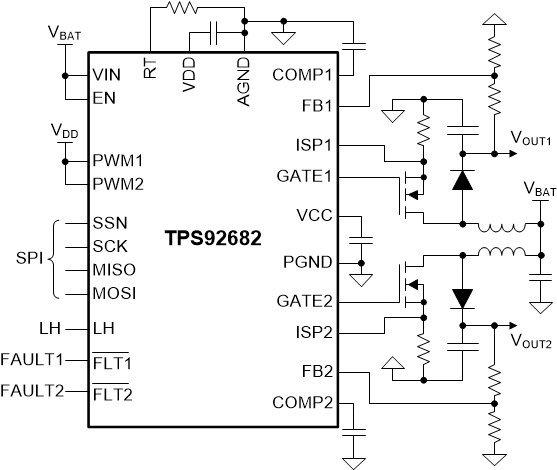

典型應用
