7.5.3.3 Write Error/POR Frame Format
The Write Error/POR frame is simply a ‘1’ in the MSB, followed by all zeroes (see Figure 7-26). This frame is sent out by the TPS92682-Q1 internal digital block during the first SPI transfer following power-on reset, or following a write command with a SPI Error.

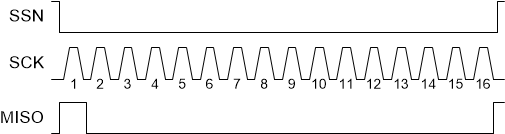

Figure 7-26 Write Error/POR
