specified at TJ = –40°C to
+150°C, VIN = 13.5 V, IOUT = 100 μA, COUT = 2.2
μF, 1 mΩ < COUT ESR < 2 Ω, CIN = 1 μF, and
VEN = 2 V (unless otherwise
noted)

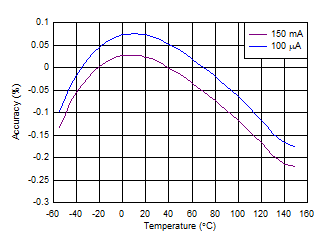

Figure 5-1 Accuracy vs
Temperature

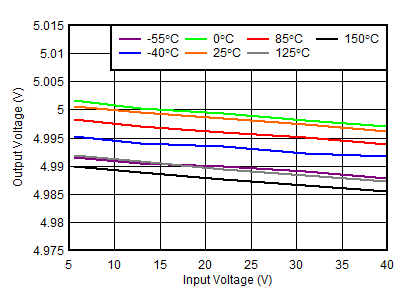

Figure 5-3 Line
Regulation vs VIN

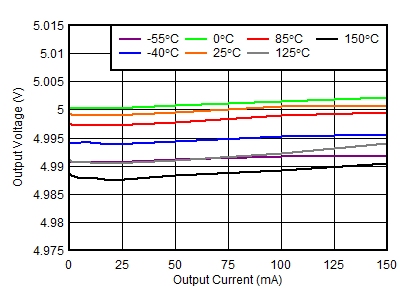

Figure 5-5 Load Regulation vs
IOUT

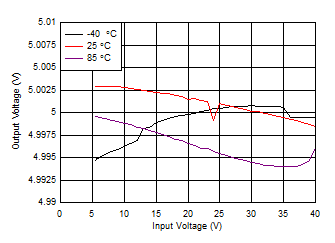

Figure 5-7 Line Regulation at 100
mA
| COUT = 10 μF (X7R 50 V), VOUT
= 5 V |

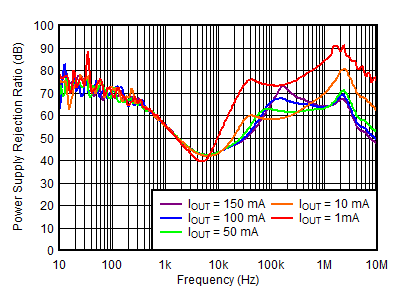

Figure 5-9 PSRR vs Frequency and
IOUT
| VOUT = 3.3 V, COUT = 10
μF |

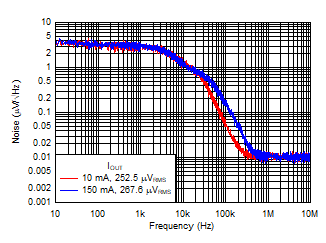

Figure 5-11 Noise vs Frequency at 3.3
V
VOUT = 5 V, IOUT = 1 mA,
VIN = 13.5 V to 40 V,
slew rate = 2.7 V/μs,
VEN = 3.3 V, COUT = 10
μF |

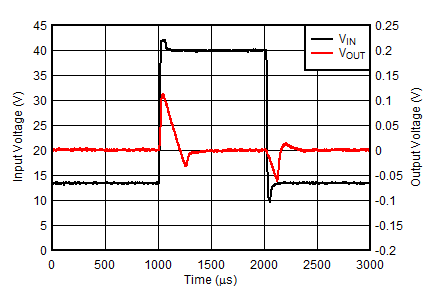

Figure 5-13 Line Transients at 13.5 V
to 40 V
VOUT = 5 V, IOUT = 0 mA to
100 mA, slew rate = 1 A/μs,
VEN = 3.3 V, COUT = 10
μF |
Figure 5-15 Load Transient, No Load to
100 mA
VOUT = 5 V, IOUT = 45 mA to
105 mA, slew rate = 0.1 A/μs,
VEN = 3.3 V,
COUT = 10 μF |

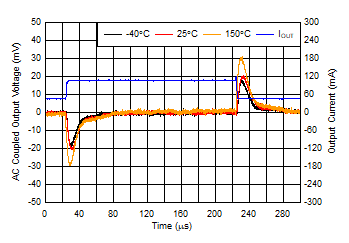

Figure 5-17 Load Transient, 45 mA to
105 mA
VOUT = 5 V, IOUT = 0 mA to
150 mA, slew rate = 1 A/μs,
VEN = 3.3 V, COUT = 10
μF |

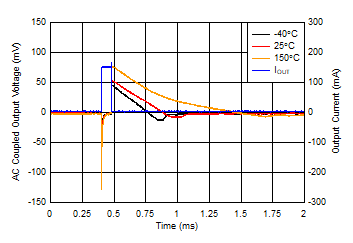

Figure 5-19 Load
Transient, No Load to 150 mA
| VIN = VOUT + 1 V,
VOUT = 90% × VOUT(NOM) |
| |

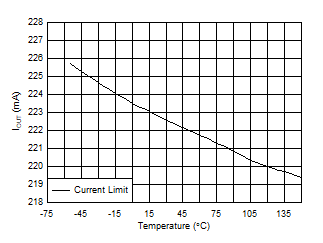

Figure 5-21 Output Current Limit vs
Temperature

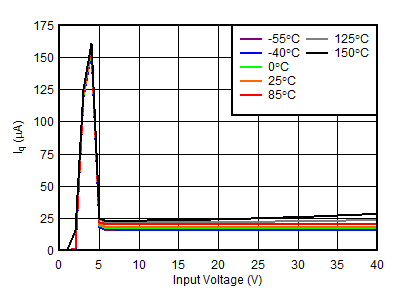

Figure 5-23 Quiescent Current (IQ) vs VIN

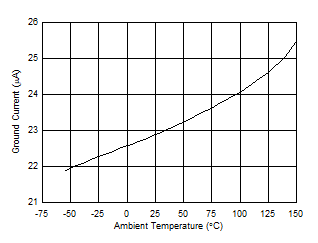

Figure 5-25 Ground Current

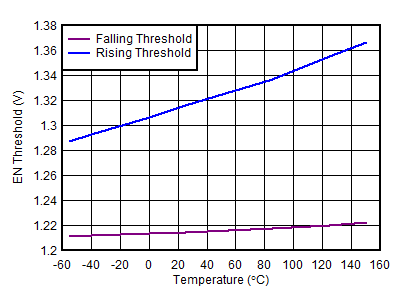

Figure 5-27 EN Threshold vs
Temperature
| VIN = 13.5 V, COUT = 10
μF |

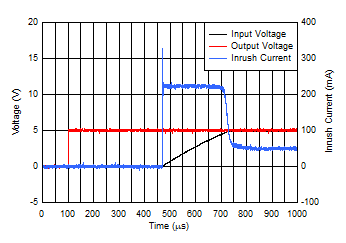

Figure 5-29 Startup Plot With
EN

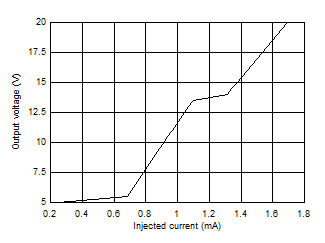

Figure 5-31 Output Voltage vs Injected
Current

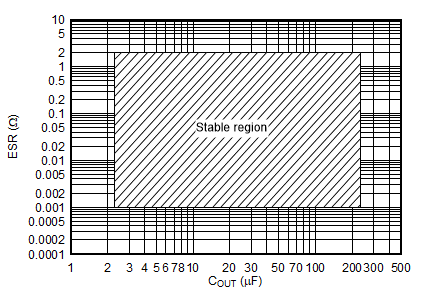

Figure 5-33 Stability ESR vs
COUT
| VOUT = 5 V, IOUT = 150
mA |

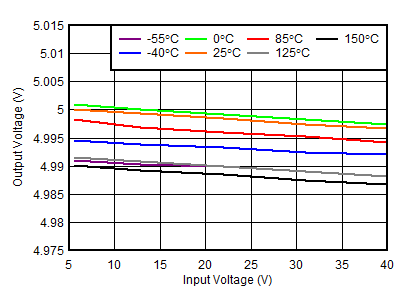

Figure 5-2 Line Regulation vs
VIN

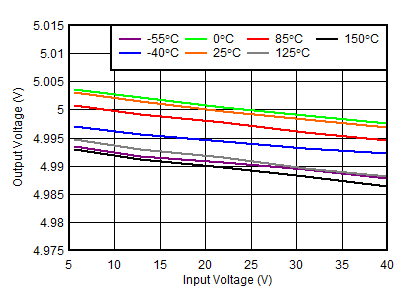

Figure 5-4 Line
Regulation vs VIN

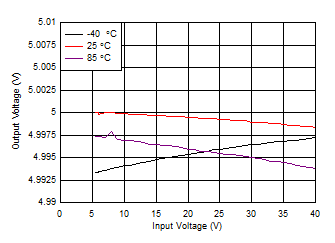

Figure 5-6 Line Regulation at 50
mA

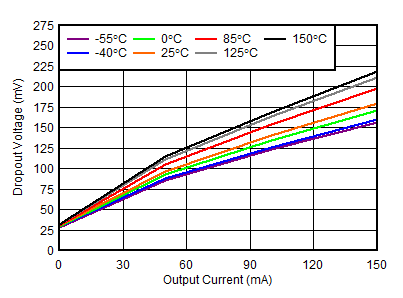

Figure 5-8 Dropout Voltage
(VDO) vs IOUT
| COUT = 10 μF (X7R 50 V), IOUT
= 150 mA, VOUT = 5 V |

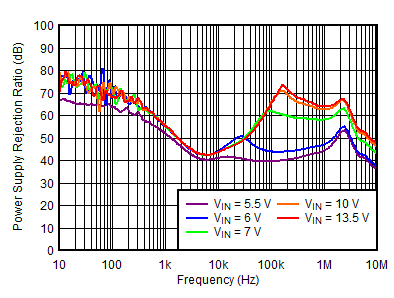

Figure 5-10 PSRR vs Frequency and
VIN

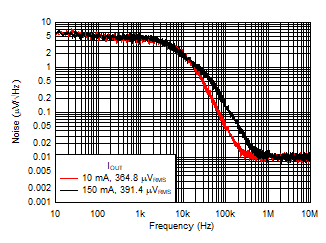

Figure 5-12 Noise vs Frequency at 5.0
V
| VOUT = 5 V, VIN = 5.5 V to
6.5 V, trise = 1 μs, COUT = 10
μF |
| |

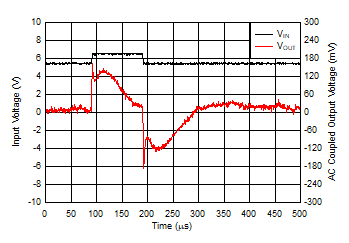

Figure 5-14 Line Transients at 5.5 V
to 6.5 V
VOUT = 5 V, IOUT = 0 mA to
100 mA, slew rate = 1 A/μs,
VEN = 3.3 V, COUT = 10
μF |

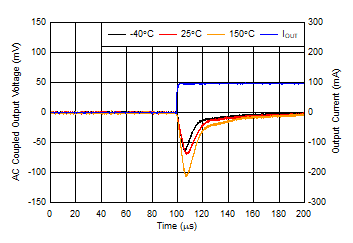

Figure 5-16 Load
Transient, No Load to 100-mA Rising Edge
VOUT = 5 V, IOUT = 45 mA to
105 mA, slew rate = 0.1 A/μs,
VEN = 3.3 V,
COUT = 10 μF |

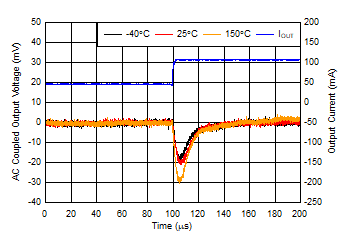

Figure 5-18 Load
Transient, 45-mA to 105-mA Rising Edge
| VOUT = 5 V, IOUT = 0 mA to
150 mA, slew rate = 1 A/μs, VEN = 3.3 V,
COUT = 10 μF |

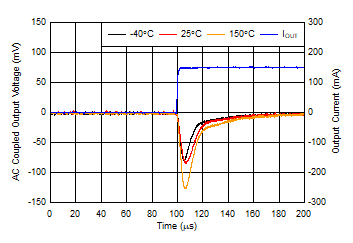

Figure 5-20 Load
Transient, No Load to 150-mA Rising Edge

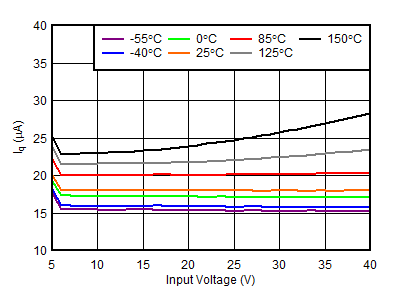

Figure 5-22 Quiescent Current
(IQ) vs VIN

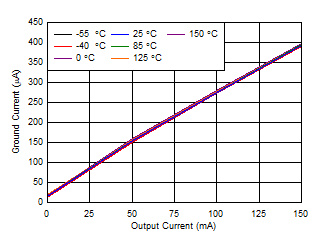

Figure 5-24 Ground Current
(IGND) vs IOUT

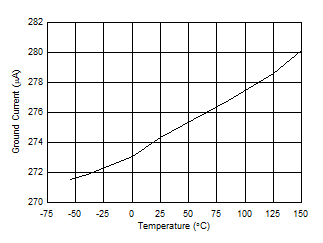

Figure 5-26 Ground Current

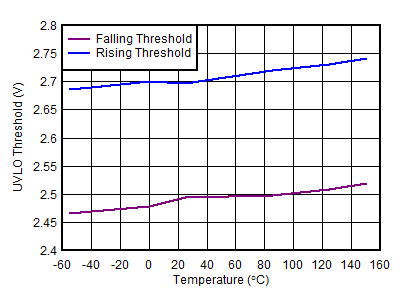

Figure 5-28 Undervoltage Lockout
(UVLO) Threshold vs Temperature

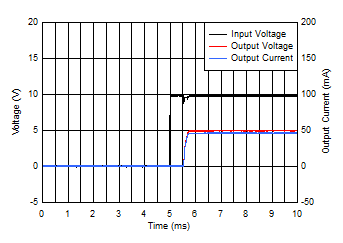

Figure 5-30 Startup Plot

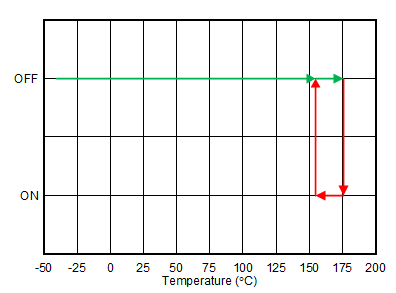

Figure 5-32 Thermal Shutdown
