8.1.8 Adjustable Operation
As shown in Figure 8-8, the output voltage of the device can be set using a single external resistor (RREF).

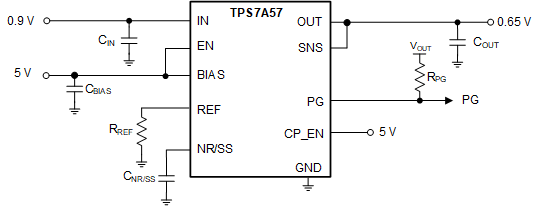

Figure 8-8 Typical
CircuitUse Equation 5 to calculate the RREF value needed for the desirable output voltage.
Equation 17. VOUT =
IREF(NOM) × RREF
Table 8-4 shows the recommended RREF resistor values to achieve several common rails using a standard 1%-tolerance resistor.
Table 8-4 Recommended RREF
Values
| TARGETED OUTPUT VOLTAGE (V) | RREF (kΩ)(1) | CALCULATED OUTPUT VOLTAGE (V) |
|---|---|---|
| 0.5 | 10.0 | 0.500 |
| 0.6 | 12.1 | 0.605 |
| 0.7 | 14.0 | 0.700 |
| 0.8 | 16.2 | 0.810 |
| 0.9 | 18.2 | 0.910 |
| 1.0 | 20.0 | 1.000 |
| 1.2 | 24.3 | 1.215 |
| 1.5 | 30.1 | 1.505 |
| 2.5 | 49.9 | 2.495 |
| 3.0 | 60.4 | 3.020 |
| 3.3 | 66.5 | 3.325 |
| 3.6 | 71.5 | 3.575 |
| 4.7 | 95.3 | 4.765 |
| 5.0 | 100.0 | 5.000 |
(1) 1% resistors.
