8.1.14 Output Impedance

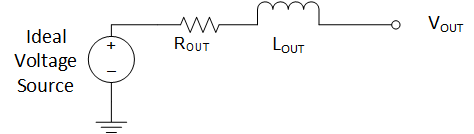

Output impedance can be modeled, as shown in Figure 8-13, as an ideal voltage source followed by a series R (ROUT) and series L (LOUT) output.
Figure 8-13 Output Impedance ModelOutput impedance curves were measured using the EVM and are provided for the following conditions:
- Figure 8-14, Figure 8-15, and Figure 8-16 are provided for the 5.5-VIN, 5-VOUT, and IOUT = 200-mA, 500-mA, and 5-A conditions
- Figure 8-17 is provided for the 0.9-VIN, 0.5-VOUT, and IOUT = 4.6-A conditions
- Figure 8-18 to Figure 8-21 are provided for the 0.75 -VIN, 0.5-VOUT, 3-VBIAS, and IOUT = 20-mA, 200-mA, 500-mA, and 1-A conditions.

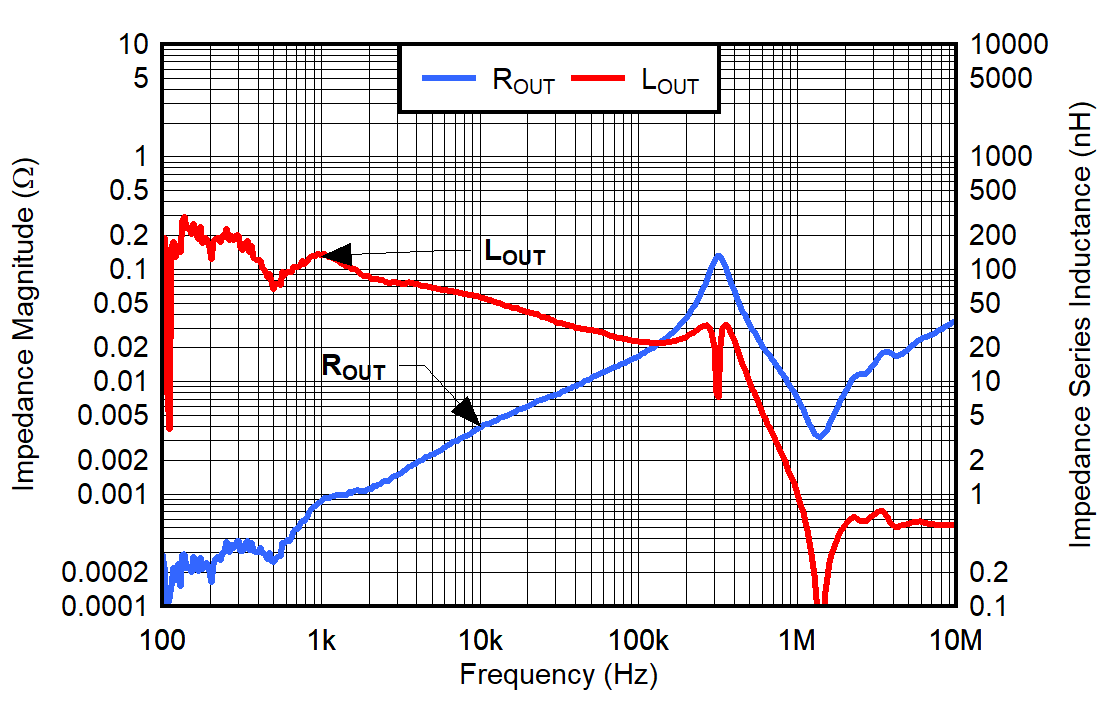

Figure 8-14 VIN = 5.5 V,
VOUT = 5 V, VBIAS = 8 V, CP_EN = 0,
IOUT = 200 mA

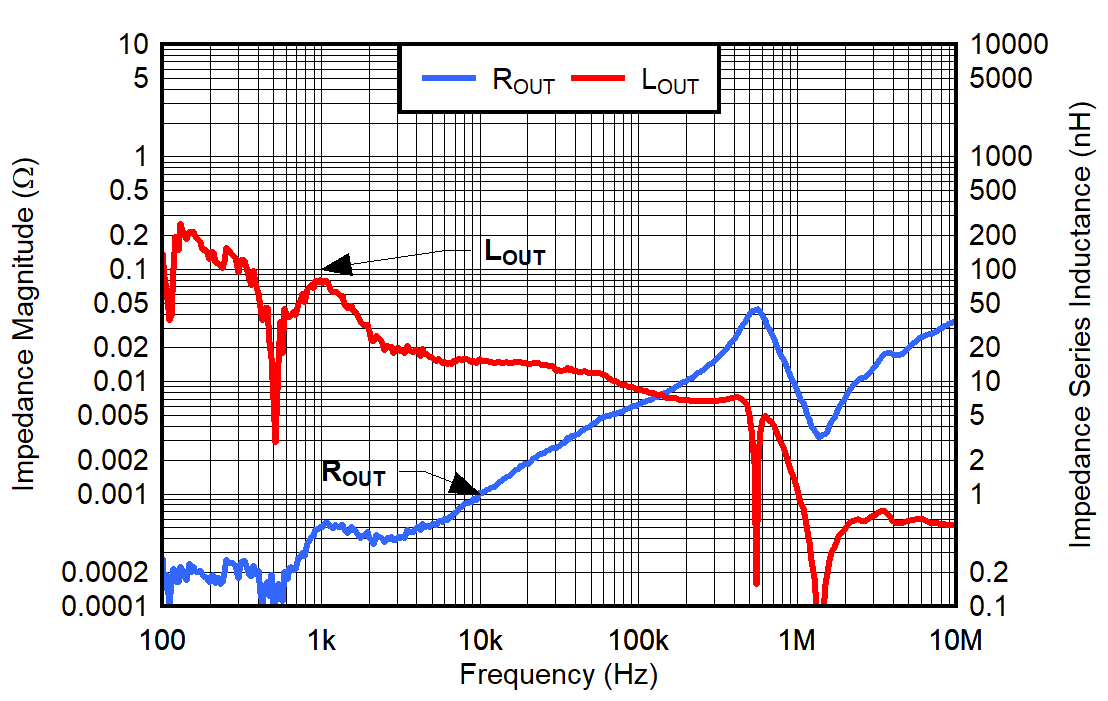

Figure 8-16 VIN = 5.5 V,
VOUT = 5 V, VBIAS = 8 V, CP_EN = 0,
IOUT = 5 A

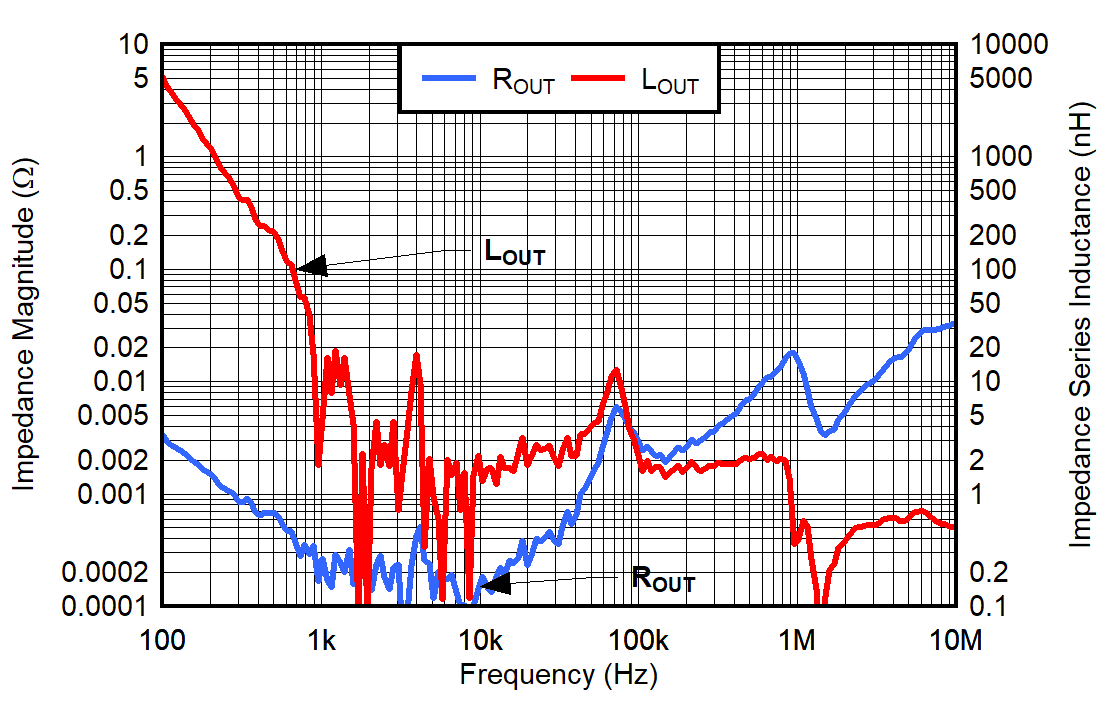

Figure 8-18 VIN = 0.75 V,
VBIAS = 3 V, VOUT = 0.5 V , CP_EN = 0,
IOUT = 20 mA

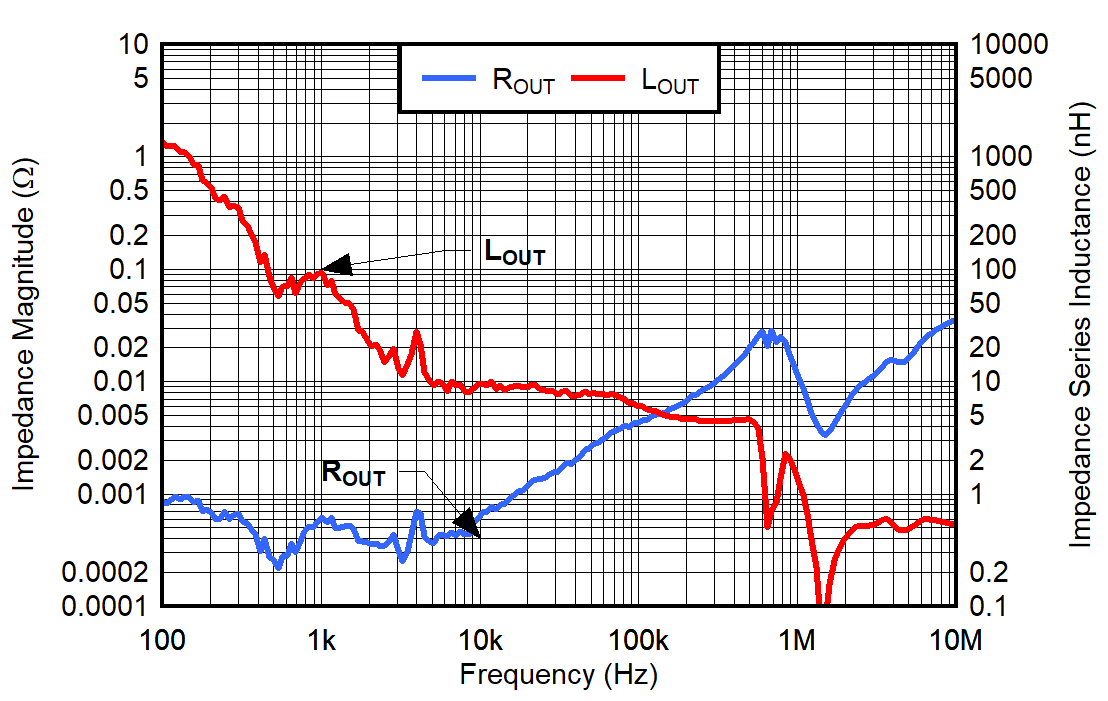

Figure 8-20 VIN = 0.75 V,
VBIAS = 3 V, VOUT = 0.5 V, CP_EN = 0,
IOUT = 500 mA

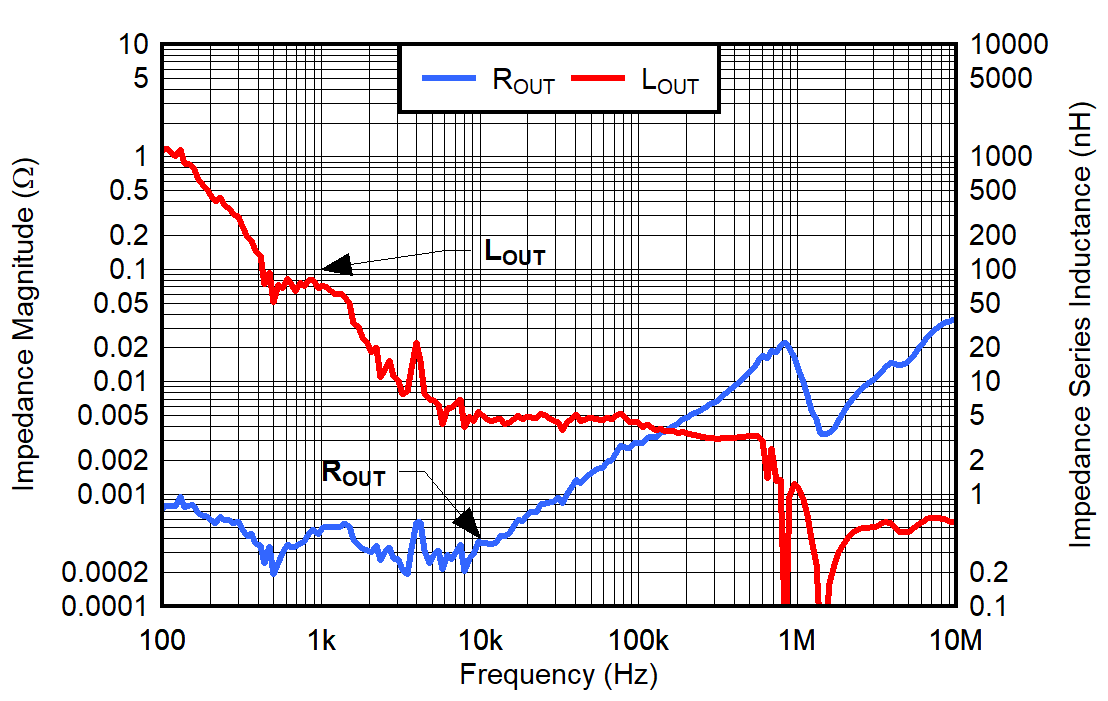

Figure 8-15 VIN = 5.5 V,
VOUT = 5 V, VBIAS = 8 V, CP_EN = 0,
IOUT = 500 mA

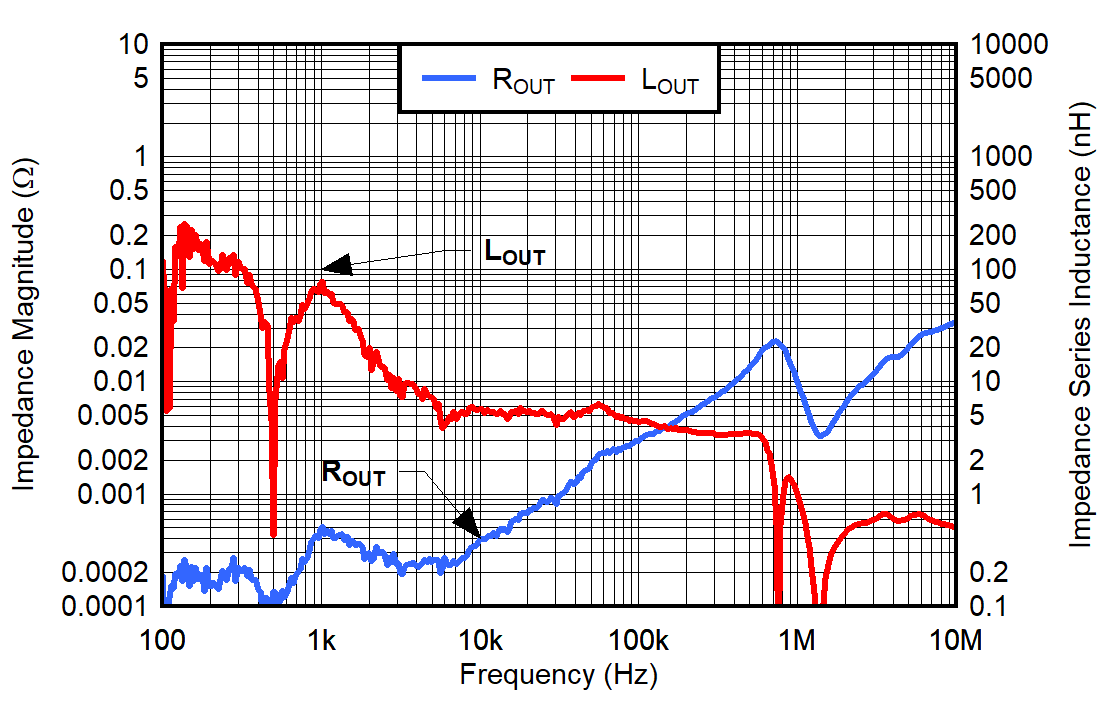

Figure 8-17 VIN = 0.9 V,
VBIAS = 3 V, VOUT = 0.5 V , CP_EN = 0,
IOUT = 4.6 A
Figure 8-19 VIN = 0.75 V,
VBIAS = 3 V, VOUT = 0.5 V, CP_EN = 0,
IOUT = 100 mA
Figure 8-21 VIN = 0.75 V,
VBIAS = 3 V, VOUT = 0.5 V, CP_EN = 0,
IOUT = 1 ATable 8-6 provides a summary of the tested conditions described in this section.
Table 8-6 Model for Tested Conditions
Summary
| VIN | VOUT | VBIAS | IOUT | CP_EN | ROUT | LOUT |
|---|---|---|---|---|---|---|
| 0.75 V | 0.5 V | 3 V | 20 mA | Off | 200 μ? | 0.5 nH |
| 0.75 V | 0.5 V | 3 V | 200 mA | Off | 200 μ? | 0.5 nH |
| 0.75 V | 0.5 V | 3 V | 500 mA | Off | 200 μ? | 0.5 nH |
| 0.75 V | 0.5 V | 3 V | 1 A | Off | 200 μ? | 0.5 nH |
| 0.9 V | 0.5 V | 3 V | 4.6 A | Off | 200 μ? | 0.5 nH |
| 5.5 V | 5 V | 8 V | 200 mA | Off | 400 μ? | 0.5 nH |
| 5.5 V | 5 V | 8 V | 500 mA | Off | 300 μ? | 0.5 nH |
| 5.5 V | 5 V | 8 V | 5 A | Off | 200 μ? | 0.5 nH |
