8.1.10 Current Limit and Foldback Behavior

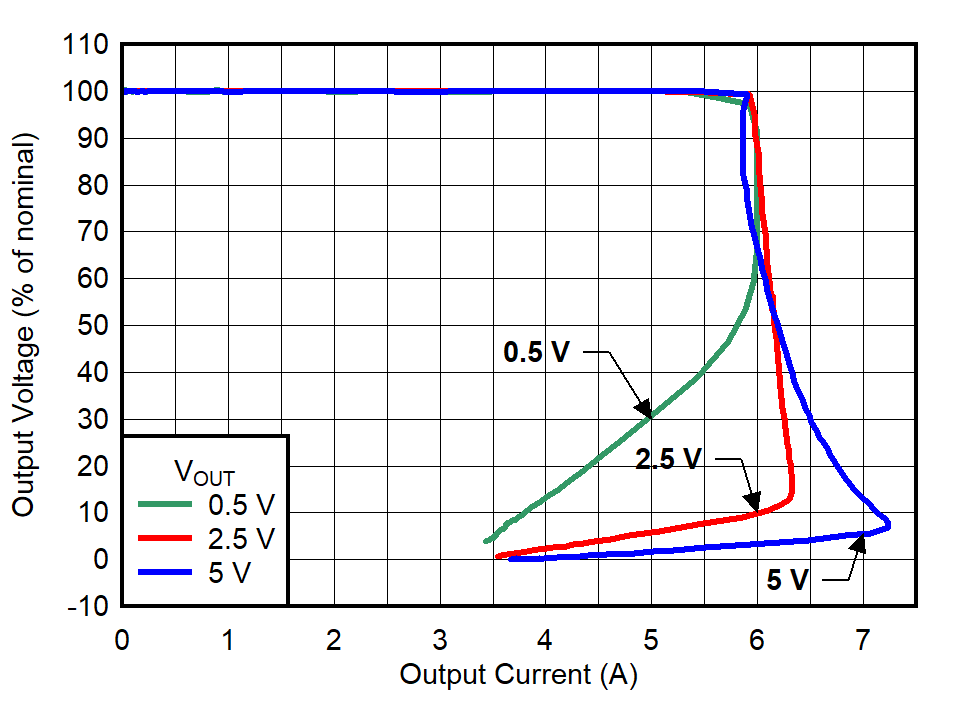

Figure 8-10 shows the foldback current limit behavior for output voltages ranging from 0.5 V to 5 V.
Figure 8-10 Current Limit Foldback
Behavior
