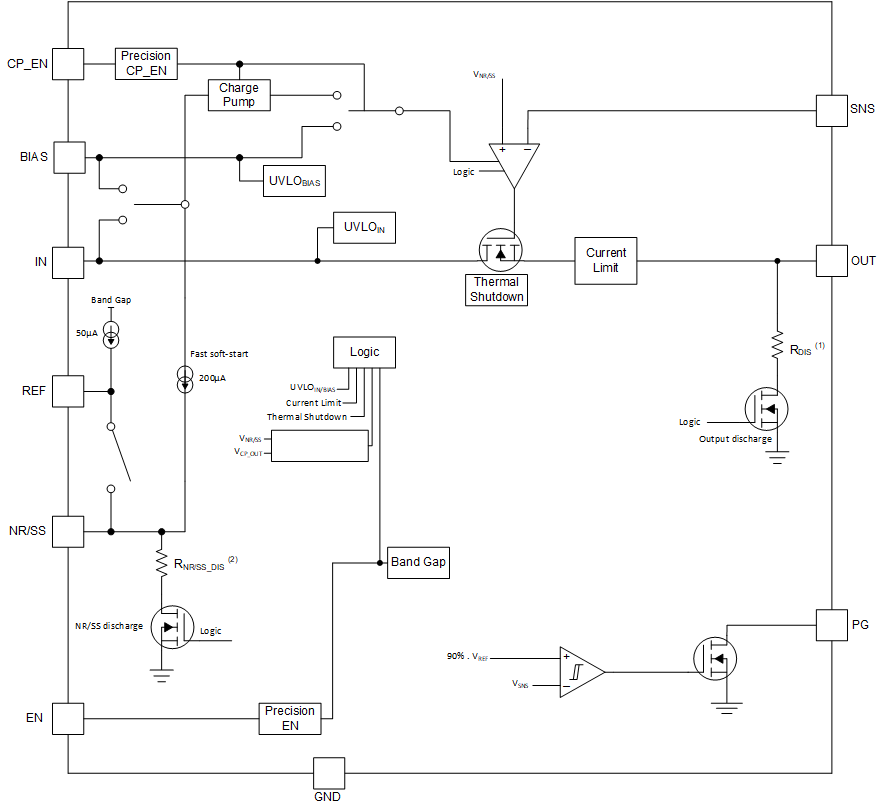

7.2 Functional Block Diagram
A. See
the RDIS (the output pin active discharge resistance) value in the
Section 6.5 table.
B. See
the RNR/SS_DIS (the NR/SS pin active discharge resistance) value in
the Section 6.5 table.
